PV6-56R-T Panduit Electronic Components
Part#:PV6-56R-T
Manufacturer:Panduit
Category:Electronic Components
Product Lifecycle:Active
Mar 15, 2025
Product description
Pan-term Loose Piece Ring Terminal
Product Details
- Part Features • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength
- Product Type Loose Piece Ring Terminal
- Tongue Width (mm) 15.7
- Tongue Length (mm) 25.9
- Overall Width (mm) 15.7
- Overall Length (mm) 44.1
- Maximum Operating Temperature (°F) 221
- For Use With CT-720 (CD-720PV8-2); CT-2600 (CD-2600-PV6)
- Packaging Type Box
- Tongue Thickness (In.) 0.05
- Tongue Length (In.) 1.02
- Tongue Width (In.) 0.62
- Tongue Thickness (mm) 1.1
- Overall Width (In.) 0.62
- Overall Length (In.) 1.74
- Sub Brand Pan-term
- Outer Diameter (mm) 8.6
- Outer Diameter (In.) 0.34
- Maximum Wire Insulation Diameter (mm) 8.6
- Maximum Wire Insulation Diameter (In.) 0.34
- Maximum Operating Temperature (°C) 105
- Insulation Diameter (mm) 8.6
- Flammability Rating UL 94 V-0
- Insulation Diameter (In.) 0.34
- Barrel Length (mm) 18.2
- Barrel Length (In.) 0.72
- Color Code Blue
- Barrel Type Funnel
- Finish/Coating Tin-Plated
- Maximum Voltage (kV) 0.6
- Maximum Voltage (V) 600
- Standards Met UL Listed 587H E52164
- Base Material Copper
- Wire Strip Length (mm) 10.9
- Wire Strip Length (In.) 0.43
- Minimum Copper Conductor Size (AWG) #6
- Minimum Copper Conductor Size (AWG STR) #6
- Minimum Copper Conductor Size (AWG SOL) #6
- Minimum Wire Size (AWG) #6
- Stud Size 5/16"
- Maximum Copper Conductor Size (AWG) #6
- Stud Hole Size (mm) 8.4
- Maximum Copper Conductor Size (AWG STR) #6
- Maximum Wire Size (AWG) #6
- Maximum Copper Conductor Size (AWG SOL) #6
- Stud Hole Size (In.) 33/100
- Insulation Material Vinyl
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
PV6-56R-T Related Documents
Manufacturer warranty
PV6-56R-T Panduit
Get a quick Quote!
Request a quote, and we will send you price within minutes.
Stock:
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare PV6-56R-T with other products
Part Features
Product Type
Tongue Width (mm)
Tongue Length (mm)
Overall Width (mm)
Overall Length (mm)
Maximum Operating Tempera...
For Use With
Packaging Type
Tongue Thickness (In.)
Tongue Length (In.)
Tongue Width (In.)
Tongue Thickness (mm)
Overall Width (In.)
Overall Length (In.)
Sub Brand
Outer Diameter (mm)
Outer Diameter (In.)
Maximum Wire Insulation D...
Maximum Wire Insulation D...
Maximum Operating Tempera...
Insulation Diameter (mm)
Flammability Rating
Insulation Diameter (In.)
Barrel Length (mm)
Barrel Length (In.)
Color Code
Barrel Type
Finish/Coating
Maximum Voltage (kV)
Maximum Voltage (V)
Standards Met
Base Material
Wire Strip Length (mm)
Wire Strip Length (In.)
Minimum Copper Conductor ...
Minimum Copper Conductor ...
Minimum Copper Conductor ...
Minimum Wire Size (AWG)
Stud Size
Maximum Copper Conductor ...
Stud Hole Size (mm)
Maximum Copper Conductor ...
Maximum Wire Size (AWG)
Maximum Copper Conductor ...
Stud Hole Size (In.)
Insulation Material
Selected product
Part Features• Ring tongue design assures...
Product TypeLoose Piece Ring Terminal
Tongue Width (mm)15.7
Tongue Length (mm)25.9
Overall Width (mm)15.7
Overall Length (mm)44.1
Maximum Operating Temperature (°F)221
For Use WithCT-720 (CD-720PV8-2); CT-260...
Packaging TypeBox
Tongue Thickness (In.)0.05
Tongue Length (In.)1.02
Tongue Width (In.)0.62
Tongue Thickness (mm)1.1
Overall Width (In.)0.62
Overall Length (In.)1.74
Sub BrandPan-term
Outer Diameter (mm)8.6
Outer Diameter (In.)0.34
Maximum Wire Insulation Diameter (mm)8.6
Maximum Wire Insulation Diameter (In.)0.34
Maximum Operating Temperature (°C)105
Insulation Diameter (mm)8.6
Flammability RatingUL 94 V-0
Insulation Diameter (In.)0.34
Barrel Length (mm)18.2
Barrel Length (In.)0.72
Color CodeBlue
Barrel TypeFunnel
Finish/CoatingTin-Plated
Maximum Voltage (kV)0.6
Maximum Voltage (V)600
Standards MetUL Listed 587H E52164
Base MaterialCopper
Wire Strip Length (mm)10.9
Wire Strip Length (In.)0.43
Minimum Copper Conductor Size (AWG)#6
Minimum Copper Conductor Size (AWG STR)#6
Minimum Copper Conductor Size (AWG SOL)#6
Minimum Wire Size (AWG)#6
Stud Size5/16"
Maximum Copper Conductor Size (AWG)#6
Stud Hole Size (mm)8.4
Maximum Copper Conductor Size (AWG STR)#6
Maximum Wire Size (AWG)#6
Maximum Copper Conductor Size (AWG SOL)#6
Stud Hole Size (In.)33/100
Insulation MaterialVinyl

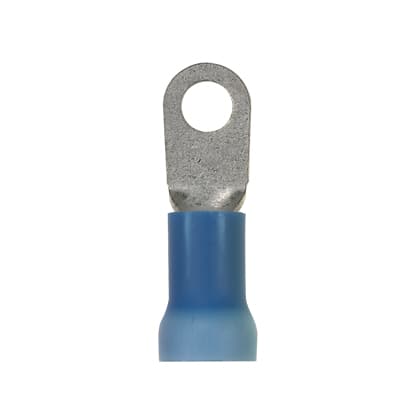

Part Features• Expanded wire entry design...
Product TypeLoose Piece Ring Terminal
Tongue Width (mm)15.7
Tongue Length (mm)25.9
Overall Width (mm)15.7
Overall Length (mm)43.9
Maximum Operating Temperature (°F)221
For Use WithCT-720 (CD-720PV8-2); CT-260...
Packaging TypeBox
Tongue Thickness (In.)0.05
Tongue Length (In.)1.02
Tongue Width (In.)0.62
Tongue Thickness (mm)1.1
Overall Width (In.)0.62
Overall Length (In.)1.73
Sub BrandPan-term
Outer Diameter (mm)11.1
Outer Diameter (In.)0.44
Maximum Wire Insulation Diameter (mm)11.1
Maximum Wire Insulation Diameter (In.)0.44
Maximum Operating Temperature (°C)105
Insulation Diameter (mm)11.1
Flammability RatingUL 94 V-0
Insulation Diameter (In.)0.44
Barrel Length (mm)18
Barrel Length (In.)0.71
Color CodeBlue
Barrel TypeFunnel
Finish/CoatingTin-Plated
Maximum Voltage (kV)0.6
Maximum Voltage (V)600
Standards MetUL Listed 587H E52164
Base MaterialCopper
Wire Strip Length (mm)10.9
Wire Strip Length (In.)0.43
Minimum Copper Conductor Size (AWG)#6
Minimum Copper Conductor Size (AWG STR)#6
Minimum Copper Conductor Size (AWG SOL)#6
Minimum Wire Size (AWG)#6
Stud Size3/8"
Maximum Copper Conductor Size (AWG)#6
Stud Hole Size (mm)9.9
Maximum Copper Conductor Size (AWG STR)#6
Maximum Wire Size (AWG)#6
Maximum Copper Conductor Size (AWG SOL)#6
Stud Hole Size (In.)39/100
Insulation MaterialVinyl

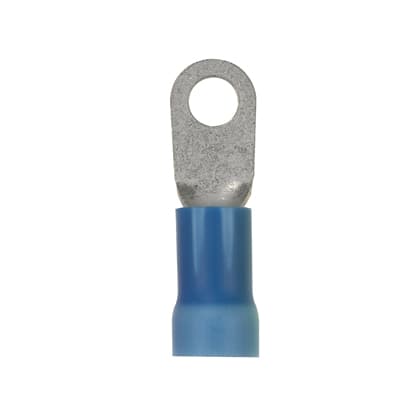

Part Features• Ring tongue design assures...
