PV6-38RX-T Panduit Electronic Components

Product Details

• For Use With
  CT-720 (CD-720PV8-2); CT-2600 (CD-2600-PV6)
• Part Features
  • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal ba
• Product Type

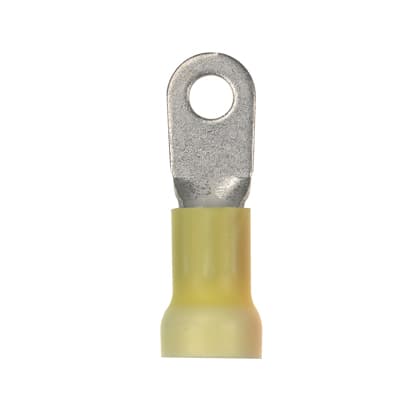

  Loose Piece Ring Terminal
• Tongue Width (In.)
  0.62
• Packaging Type
  Box
• Tongue Width (mm)
  15.7
• Tongue Thickness (In.)
  0.05
• Tongue Length (In.)
  1.02
• Tongue Length (mm)
  25.9
• Overall Width (mm)
  15.7
• Tongue Thickness (mm)
  1.1
• Outer Diameter (mm)
  11.1
• Overall Length (mm)
  43.9
• Overall Length (In.)
  1.73
• Overall Width (In.)
  0.62
• Sub Brand
  Pan-term
• Maximum Wire Insulation Diameter (In.)
  0.44
• Maximum Wire Insulation Diameter (mm)
  11.1
• Maximum Operating Temperature (°F)
  221
• Maximum Operating Temperature (°C)
  105
Outer Diameter (In.)
0.44
Insulation Diameter (mm)
11.1
Insulation Diameter (In.)
0.44
Flammability Rating
UL 94 V-0
Barrel Length (mm)
18
Barrel Length (In.)
0.71
Barrel Type
Funnel
Color Code
Blue
Finish/Coating
Tin-Plated
Maximum Voltage (V)
600
Maximum Voltage (kV)
0.6
Base Material
Copper
Standards Met
UL Listed 587H E52164
Wire Strip Length (mm)
10.9
Wire Strip Length (In.)
0.43
Minimum Copper Conductor Size (AWG)
#6
Minimum Copper Conductor Size (AWG SOL)
#6
Minimum Copper Conductor Size (AWG STR)
#6
Minimum Wire Size (AWG)
#6
Maximum Wire Size (AWG)
#6
Maximum Copper Conductor Size (AWG)
#6
Maximum Copper Conductor Size (AWG STR)
#6
Maximum Copper Conductor Size (AWG SOL)
#6
Insulation Material
Vinyl
Stud Size
3/8"
Stud Hole Size (In.)
39/100
Stud Hole Size (mm)
9.9
