PV14-56R-M Panduit Electronic Components
Part#:PV14-56R-M
Manufacturer:Panduit
Category:Electronic Components
Product Lifecycle:Active
Mar 15, 2025
Product description

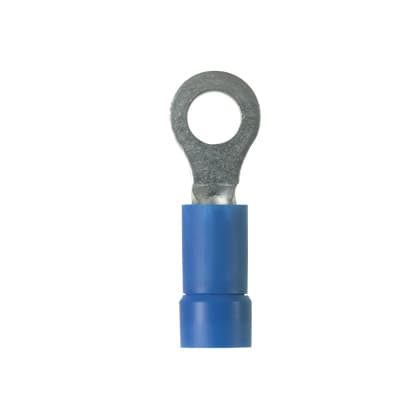

Pan-Term Loose Piece
Product Details
- Part Features • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength
- Tongue Width (mm) 11.7
- For Use With CT-100A, CT-600-A (CT-550CH) CT-1550, CT-1551, CT-2500(CT-2550CH)
- Product Type Loose Piece
- Packaging Type Box
- Tongue Width (In.) 0.46
- Tongue Thickness (In.) 0.03
- Tongue Thickness (mm) 0.8
- Tongue Length (mm) 14.2
- Tongue Length (In.) 0.56
- Overall Width (mm) 11.7
- Overall Width (In.) 0.46
- Overall Length (mm) 28.4
- Overall Length (In.) 1.12
- Sub Brand Pan-Term
- Maximum Wire Insulation Diameter (mm) 4.3
- Maximum Wire Insulation Diameter (In.) 0.17
- Maximum Operating Temperature (°F) 221
- Maximum Operating Temperature (°C) 105
- Insulation Diameter (In.) 0.17
- Barrel Length (mm) 14.2
- Insulation Diameter (mm) 4.3
- Flammability Rating UL 94 V-0
- Barrel Length (In.) 0.56
- Barrel Type Funnel
- Finish/Coating Tin-Plated
- Maximum Voltage (kV) 0.6
- Color Code Blue
- Maximum Voltage (V) 600
- Base Material Copper
- Standards Met UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65
- Wire Strip Length (In.) 0.31
- Minimum Metric Conductor Size (mm²) 1.5
- Wire Strip Length (mm) 7.9
- Maximum Metric Conductor Size (mm²) 2.5
- Minimum Copper Conductor Size (AWG) #16
- Minimum Copper Conductor Size (AWG STR) #16
- Minimum Copper Conductor Size (AWG SOL) #16
- Minimum Wire Size (AWG) #16
- Maximum Copper Conductor Size (AWG) #14
- Maximum Copper Conductor Size (AWG STR) #14
- Stud Size 5/16"
- Stud Hole Size (mm) 8.6
- Maximum Wire Size (AWG) #14
- Maximum Copper Conductor Size (AWG SOL) #14
- Insulation Material Vinyl
- Stud Hole Size (In.) 17/50
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
PV14-56R-M Related Documents
Manufacturer warranty
PV14-56R-M Panduit
Get a quick Quote!
Request a quote, and we will send you price within minutes.
Stock:
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
