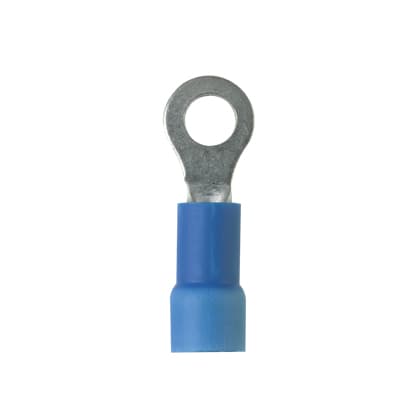

PV14-10RX-M Panduit Electronic Components

Product Details

• Tongue Width (In.)
  0.31
• Tongue Thickness (mm)
  0.8
• Part Features
  • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal ba
• Product Type
  Loose Piece Ring Terminal
• Packaging Type
  Box
• Tongue Width (mm)
  7.9
• Tongue Length (In.)
  0.48
• Tongue Thickness (In.)
  0.03
• Tongue Length (mm)
  12.2
• Overall Width (mm)
  7.9
• Overall Length (mm)
  24.4
• Overall Width (In.)
  0.31
• Sub Brand
  Pan-Term
• Overall Length (In.)
  0.96
• Maximum Wire Insulation Diameter (mm)
  5.1
• Maximum Operating Temperature (°F)
  167
• Insulation Diameter (In.)
  0.2
• Maximum Operating Temperature (°C)
  75
• Insulation Diameter (mm)
  5.1
• Flammability Rating
  UL 94 V-0
CSA Temperature Rating (°C)
75
Barrel Length (In.)
0.48
Color Code
Blue
Finish/Coating
Tin-Plated
Wire Strip Length (mm)
7.9
Standards Met
CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B
Maximum Voltage (V)
600
Base Material
Copper
Wire Strip Length (In.)
0.31
Minimum Copper Conductor Size (AWG STR)
#16
Minimum Copper Conductor Size (AWG SOL)
#16
Stud Hole Size (In.)
1/5
For Use With
CT-100
Maximum Wire Insulation Diameter (In.)
0.2
Barrel Length (mm)
12.2
Barrel Type
Expanded Entry
Maximum Voltage (kV)
0.6
Minimum Copper Conductor Size (AWG)
#16
Minimum Wire Size (AWG)
#16
Maximum Wire Size (AWG)
#14
Maximum Copper Conductor Size (AWG STR)
#14
Maximum Copper Conductor Size (AWG)
#14
Maximum Copper Conductor Size (AWG SOL)
#14
Insulation Material
Vinyl
Stud Size
#10
Stud Hole Size (mm)
5.1
