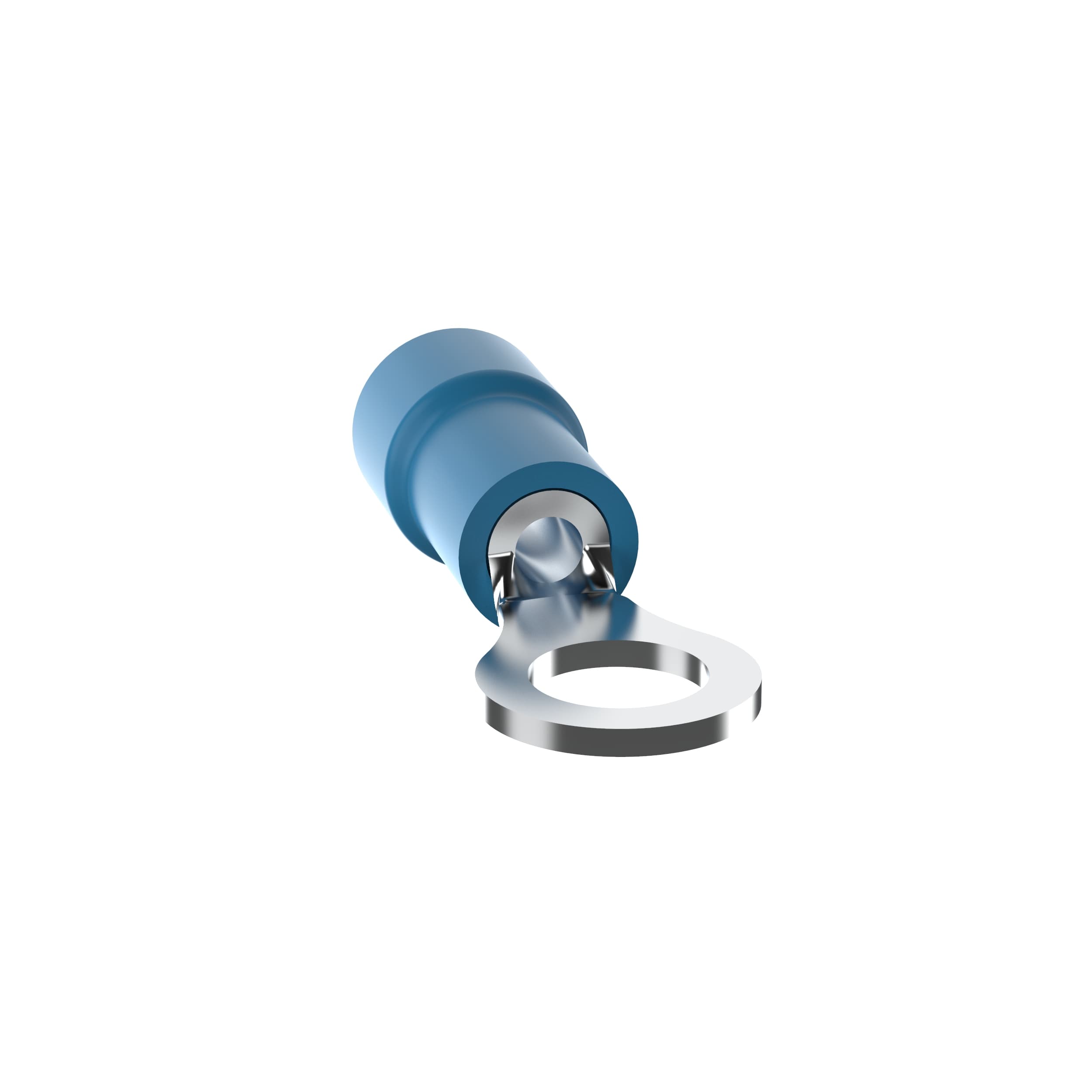

PV14-10RB-3K Panduit Industrial Automation Components

Product Details

• Tongue Thickness (mm)
  0.8
• Overall Width (mm)
  7.9
• Part Features
  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to preven
• For Use With
  Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator
• Product Type
  Ring Terminal on Reel
• Packaging Type
  Reel
• Tongue Thickness (In.)
  0.03
• Tongue Width (mm)
  7.9
• Tongue Width (In.)
  0.31
• Sub Brand
  Reel Smart™
• Overall Length (In.)
  0.86
• Overall Length (mm)
  21.8
• Overall Width (In.)
  0.31
• Maximum Wire Insulation Diameter (mm)
  4.3
• Maximum Wire Insulation Diameter (In.)
  0.17
• Maximum Operating Temperature (°F)
  221
• Maximum Operating Temperature (°C)
  105
• Flammability Rating
  UL94V-0
• Barrel Type
  Funnel
• Base Material
  Copper
Color Code
Blue
Finish/Coating
Tin-Plated
Maximum Voltage (kV)
0.6
Maximum Voltage (V)
600
Standards Met
UL 486A/B, and CSA 22.2 No.65
Wire Strip Length (mm)
6.4
Wire Strip Length (In.)
1/4
Maximum Metric Conductor Size (mm²)
2.5
Minimum Copper Conductor Size (AWG STR)
#16
Minimum Metric Conductor Size (mm²)
1.5
Minimum Copper Conductor Size (AWG SOL)
#16
Maximum Copper Conductor Size (AWG STR)
#14
Insulation Material
Vinyl
Maximum Copper Conductor Size (AWG SOL)
#14
