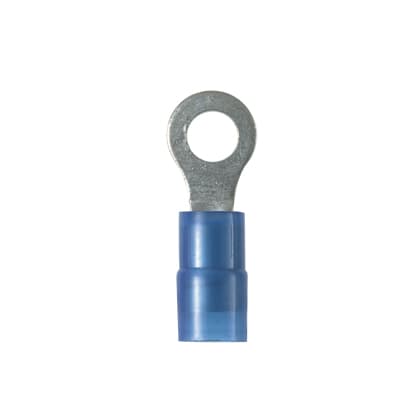

PN14-6R-C Panduit Industrial Automation Components

Product Details

• Tongue Width (mm)
  7.9
• Tongue Thickness (mm)
  0.8
• Part Features
  • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure goo
• Packaging Type
  Bottle
• For Use With
  CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Maximum Wire Insulation Diameter (mm)
  4.1
• Overall Width (mm)
  7.9
• Overall Width (In.)
  0.31
• Overall Length (In.)
  0.85
• Barrel Type
  Grip Sleeve
• Maximum Operating Temperature (°F)
  221
• Maximum Voltage (V)
  600
• Maximum Voltage (kV)
  0.6
• Wire Strip Length (mm)
  5.6
• Maximum Copper Conductor Size (AWG STR)
  #14
• Minimum Wire Size (AWG)
  #18
• Minimum Copper Conductor Size (AWG STR)
  #18
• Insulation Material
  Nylon
• Product Type
  Loose Piece Ring Terminal
• Tongue Width (In.)
  0.31
Tongue Thickness (In.)
0.03
Overall Length (mm)
21.6
Maximum Operating Temperature (°C)
105
Sub Brand
Pan-Term®
Maximum Wire Insulation Diameter (In.)
0.16
Flammability Rating
UL94-HB
Color Code
Blue
Finish/Coating
Tin-Plated
Standards Met
UL 486A/B, and CSA 22.2 No.65
Base Material
Copper
Wire Strip Length (In.)
7/32
Minimum Metric Conductor Size (mm²)
1
Minimum Copper Conductor Size (AWG SOL)
#18
Maximum Wire Size (AWG)
#14
Maximum Metric Conductor Size (mm²)
2.5
Stud Size
#6
Maximum Copper Conductor Size (AWG SOL)
#14

Related documents PN14-6R-C Specs
