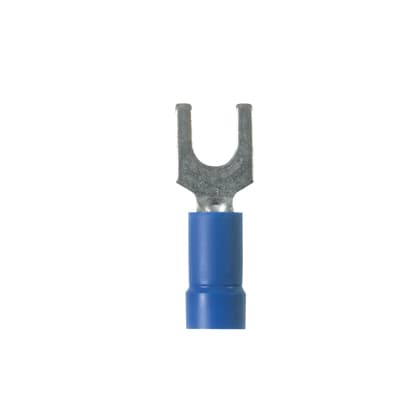

PN14-6FN-M Panduit Electronic Components

Product Details

• Overall Length (mm)
  20.1
• Maximum Wire Insulation Diameter (In.)
  0.16
• Tongue Width (mm)
  6.1
• Product Type
  Loose Piece Forks
• PN14-6FN-M
  6.1
• Part Features
  Fork design provides for fast and easy installation, without the need to remove fastener Internal barrel serrations assure good wire contact and maximum tensile strength Barrel of terminal internally beveled to provide
• For Use With
  CT-100, CT-250
• Packaging Type
  Box
• Tongue Width (In.)
  0.24
• Tongue Thickness (mm)
  0.8
• Tongue Thickness (In.)
  0.03
• Sub Brand
  Pan-Term®
• Tongue Length (mm)
  10
• Tongue Length (In.)
  0.4
• Overall Width (mm)
  6.1
• Overall Width (In.)
  0.24
• Maximum Wire Insulation Diameter (mm)
  4.1
• Overall Length (In.)
  0.79
• Stud Hole Size (mm)
  3.5
• Stud Hole Size (In.)
  1/7
Minimum Wire Insulation Diameter (mm)
2
Minimum Wire Insulation Diameter (In.)
0.08
Seam Type
NA
Barrel Length (mm)
10
Maximum Operating Temperature (°F)
221
Maximum Operating Temperature (°C)
105
Insulation Diameter (In.)
0.16
Insulation Diameter (mm)
4.1
Flammability Rating
UL 587-H
Maximum Voltage (V)
600
Standards Met
UL Listed 587H E52164; CSA Certified LR31212
Barrel Length (In.)
0.4
Barrel Type
Grip Sleeve
Color Code
Blue
Finish/Coating
Tin-Plated
Maximum Voltage (kV)
0.6
Base Material
Copper
Wire Strip Length (mm)
5.5
Stud Size
#6
Wire Strip Length (In.)
0.22
Minimum Metric Conductor Size (mm²)
1.5
Maximum Metric Conductor Size (mm²)
2.5
Minimum Copper Conductor Size (AWG)
#16
Minimum Copper Conductor Size (AWG STR)
#16
Fork Type
Narrow Fork
Insulation Type
Nylon
Insulation Material
Nylon
Maximum Copper Conductor Size (AWG STR)
#14
Maximum Wire Size (AWG)
#14
Maximum Copper Conductor Size (AWG)
#14
Minimum Copper Conductor Size (AWG SOL)
#16
Minimum Wire Size (AWG)
#16
Maximum Copper Conductor Size (AWG SOL)
#14
