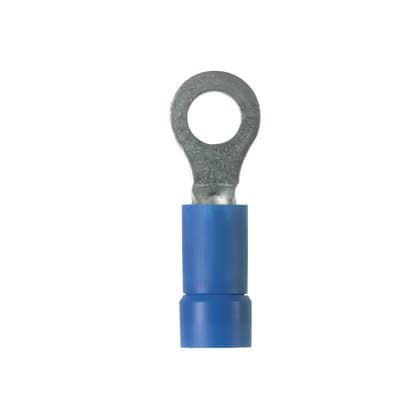

PN14-38R-M Panduit Electronic Components

Product Details

• For Use With
  CT-550, CT-1550, CT-1551,CT-460, CT-400
• Part Features
  • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure goo
• Tongue Length (mm)
  14.5
• Product Type
  Loose Piece Ring Terminal
• Tongue Width (mm)
  13.5
• Packaging Type
  Box
• Tongue Width (In.)
  0.53
• Overall Width (In.)
  0.53
• Tongue Length (In.)
  0.57
• Overall Width (mm)
  13.5
• Minimum Wire Insulation Diameter (mm)
  2
• Minimum Wire Insulation Diameter (In.)
  0.08
• Sub Brand
  Pan-Term
• Maximum Wire Insulation Diameter (mm)
  4.1
• Overall Length (mm)
  29
• Overall Length (In.)
  1.14
• Maximum Operating Temperature (°C)
  105
• Maximum Wire Insulation Diameter (In.)
  0.16
• Maximum Operating Temperature (°F)
  221
• Insulation Diameter (mm)
  4.1
Insulation Diameter (In.)
0.16
Flammability Rating
UL 94 V-2/UL 94 HB
CSA Temperature Rating (°C)
105
Barrel Length (mm)
14.5
Barrel Length (In.)
0.57
Maximum Voltage (kV)
0.6
Finish/Coating
Tin-Plated
Barrel Type
Grip Sleeve
Color Code
Blue
Maximum Voltage (V)
600
Base Material
Copper
Minimum Metric Conductor Size (mm²)
1
Wire Strip Length (In.)
0.21
Wire Strip Length (mm)
5.3
Standards Met
CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B
Maximum Metric Conductor Size (mm²)
2.5
Minimum Copper Conductor Size (AWG)
#18
Minimum Copper Conductor Size (AWG STR)
#18
Minimum Copper Conductor Size (AWG SOL)
#18
Minimum Wire Size (AWG)
#18
Maximum Copper Conductor Size (AWG STR)
#14
Maximum Wire Size (AWG)
#14
Maximum Copper Conductor Size (AWG)
#14
Maximum Copper Conductor Size (AWG SOL)
#14
Insulation Material
Nylon
Stud Size
3/8"
Stud Hole Size (mm)
10.2
Stud Hole Size (In.)
2/5
