T186E W/16 Banner Proximity Sensors

T186E W/16 on Powermatic Associates
Banner
  • T186E W/16
  • T186E W/16

Part#:T186E W/16

Alt. Part#:36479

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

EZ-BEAM T18 Series: Emitter; Range: 20 m; Input: 10-30 V dc; Output: Not Applicable; 4.9 m (16 ft) Cable

Product Details

  • Weight
    385.5532 g
  • Country Of Origin
    US
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Audible
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Barrel Diameter (mm)
    18
  • Special Feature: Water Detection
    No
  • Special Feature: Intrinsically Safe
    No
  • Primary Housing Material
    Thermoplastic
  • Max Sensing Distance (mm)
    20000
  • Housing Style
    Barrel
  • Power
    DC
  • Sensing Beam
    Infrared LED
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Chemical Resistant
    Yes
  • Feature: Encapsulated
    Yes
  • Feature: Ecolab Certified
    Yes
  • Indicator
    LEDs
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Adjustments
    N/A
  • Lens Material
    Polycarbonate
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • IP Rating
    IP67, IP69
  • NEMA Rating
    NEMA 6P
  • Repeatability (µs)
    375
  • Number of Pins
    2
  • Delay at Power-up (ms)
    100
  • Special Feature: Remote Teach
    No
  • Operation
    N/A
  • Output response time (ms)
    N/A
  • Max Op. Temp. (°C)
    70
  • Quick Disconnect Type
    No QD
  • Min Op. Temp. (°C)
    -40
  • Connection
    Other
  • Outputs
    N/A
  • Power Supply/Supply Voltage
    10-30 V dc
  • Sensing Mode (Detailed)
    Emitter
  • Sensing Mode (General)
    Opposed

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T186E W/16 on Powermatic Associates is $160.00. Order now.

About the product

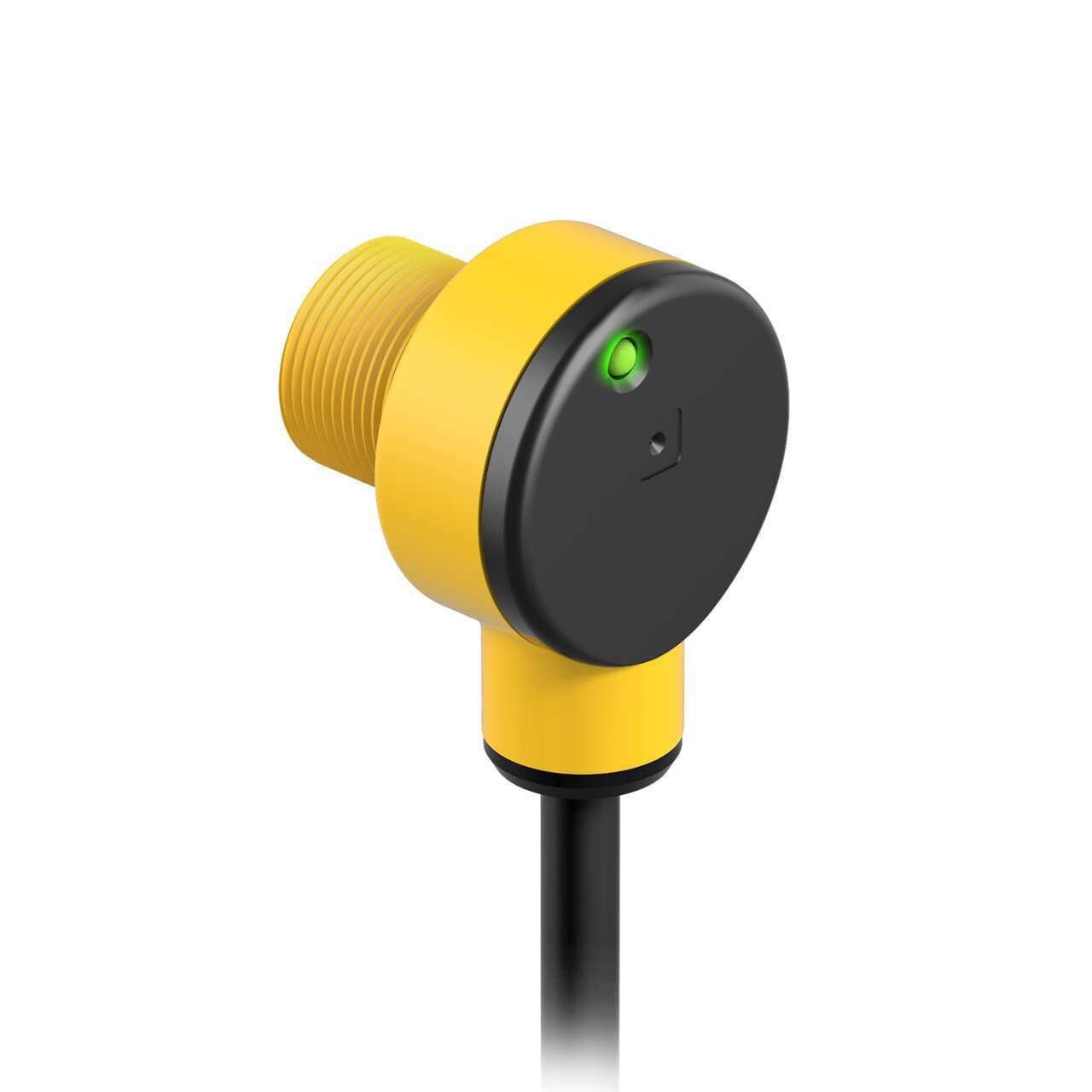

Banner Engineering T186E W/16 is a photo-electric sensor from the T18 series, designed as a through-beam system or opposed mode emitter alone. It features a thermoplastic housing with a polycarbonate lens and is pre-wired with a 16ft / 5m cable that terminates with bare end flying leads. This sensor operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc. It can function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6P. The T186E W/16 has an M18 cylindrical threaded/barrel shape, a sensing distance of 20m, utilizes infrared light with a wavelength of 950 nm, and has an M18 thread size.
