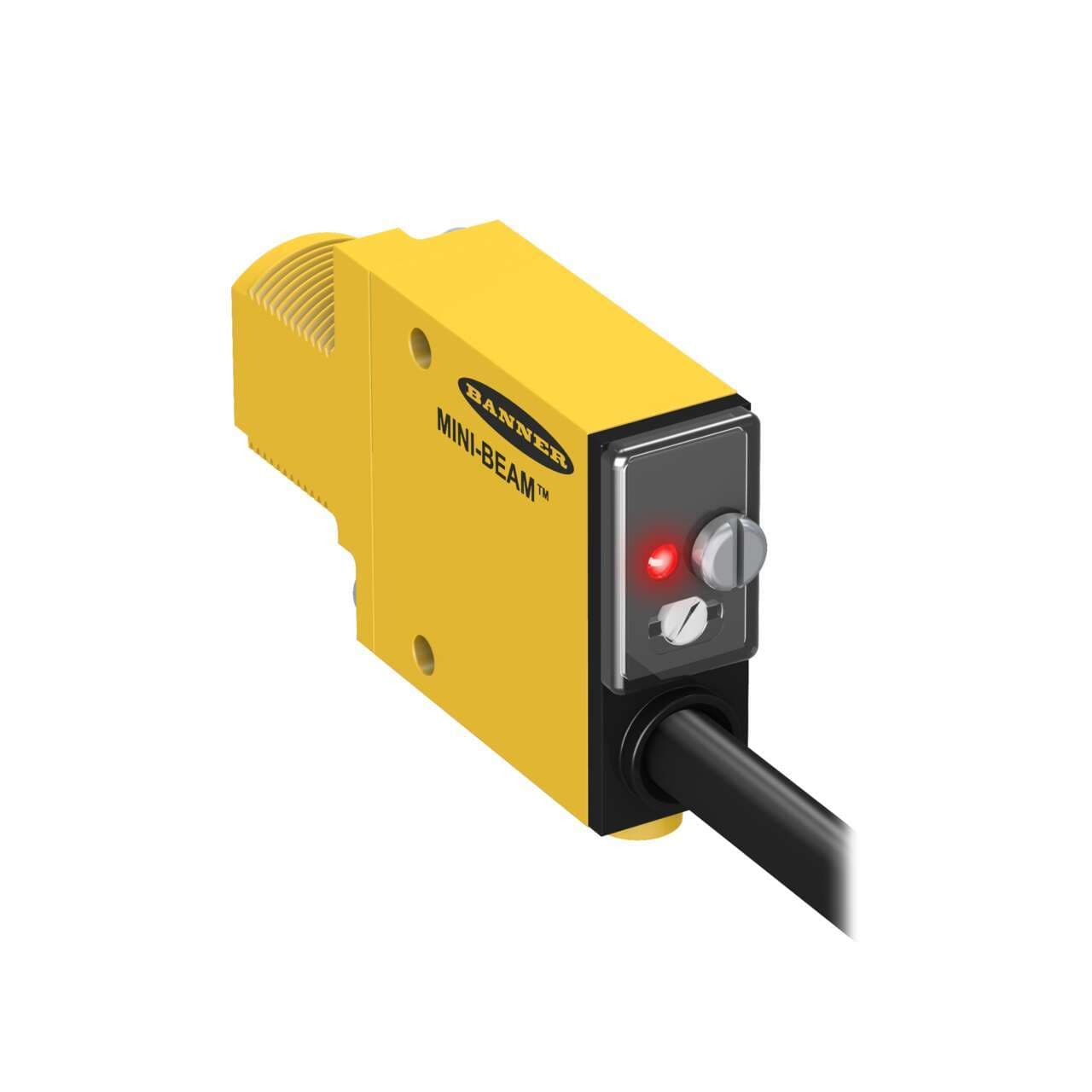

SM31RLMHS Banner Proximity Sensors
Part#:SM31RLMHS
Alt. Part#:27626
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
MINI-BEAM: High Speed Receiver; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; MHS Response Time = 0.3 ms; 2 m (6.5 ft) Cable
Product Details
- Weight 150.592544 g
- Country Of Origin US
- Sensing Mode (General) Opposed
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver Receiver
- Housing Style Rectangular w/M18 Mount
- Power Supply/Supply Voltage 10-30 V dc
- IP Rating IP67
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 30000
- Quick Disconnect Type No QD
- Repeatability (µs) 140
- Barrel Diameter (mm) 18
- Input/Output Discrete
- Outputs Bipolar (NPN & PNP)
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- IO Link No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Power DC
- Min Op. Temp. (°C) -20
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Sensing Mode (Detailed) Receiver
- Output response time (ms) 0.3
- Max Op. Relative Humidity [%] 90% @ 50°C
- Sensing Beam Infrared LED
- Special Feature: Water Detection No
- Feature: Encapsulated Yes
- Cable Length (m) 2
- Feature: Timing (Hold/Delay) No
- Primary Housing Material Thermoplastic
- Connection Cable
- NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
- DeviceNet No
- Operation Light/Dark Operate
- Indicator LEDs
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SM31RLMHS on Powermatic Associates is $125.00. Order now.
About the product
Banner Engineering SM31RLMHS, part of the SM312 series, is a photo-electric sensor designed with a through-beam system and opposed mode potentiometer adjustment. This sensor, functioning as the receiver alone, is encased in a thermoplastic housing with an acrylic lens. It comes pre-wired with a 6.5ft / 2m cable featuring bare end flying leads for connection. The SM31RLMHS operates on a supply voltage range of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc, and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and boasts a degree of protection rated at IP67, NEMA 1, 2, 3, 3S, 4, 4X, 6, and 12, ensuring its durability in various environmental conditions. The sensor has a rectangular shape, includes 1 x digital output (PNP/NPN transistor), and offers a sensing distance of up to 30m. It utilizes infrared (IR) light and has a response time of 0.3ms / 0.0003 s, with operating modes that include Light-ON and Dark-ON.
