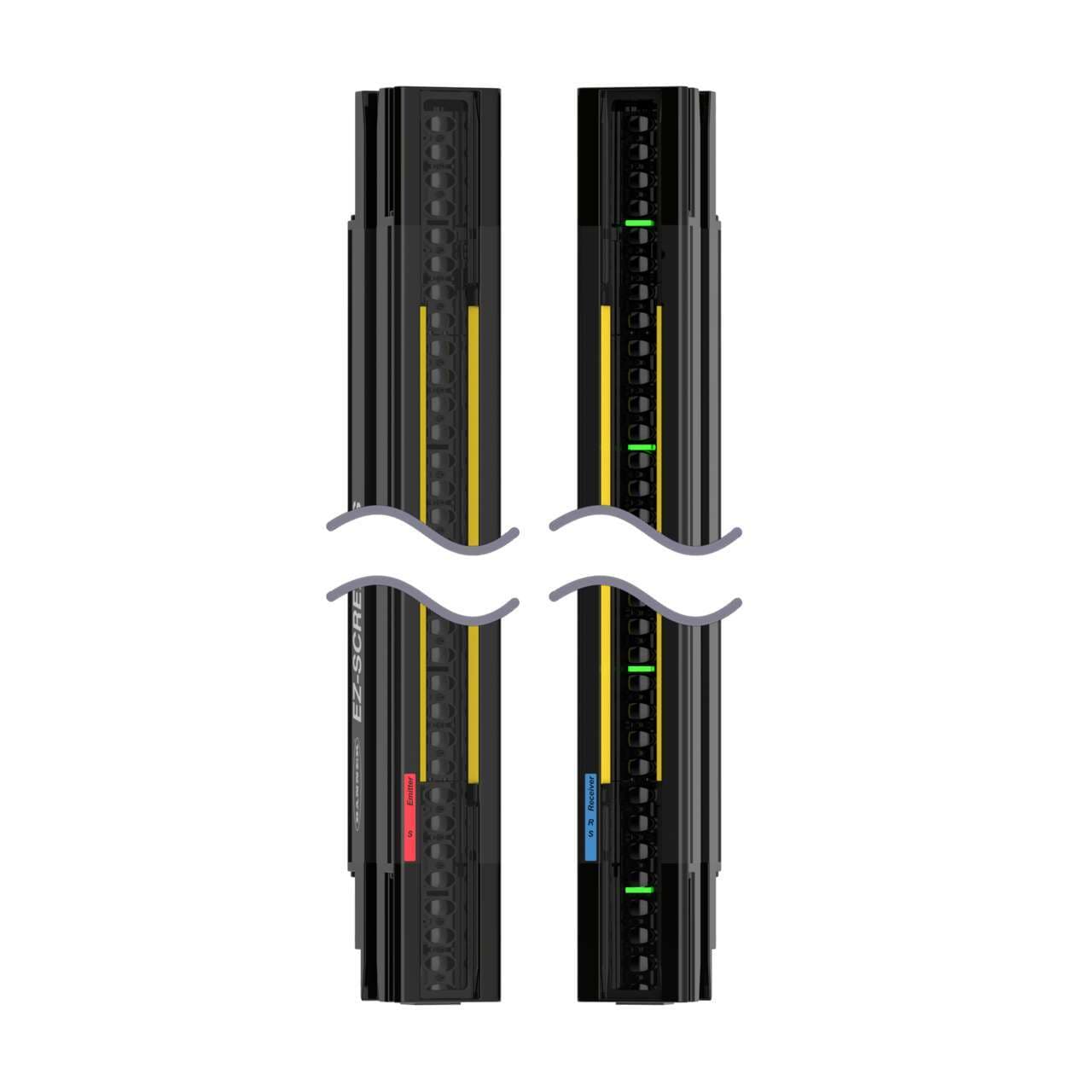

SLLVE23-1540 Banner Safety Light Curtains

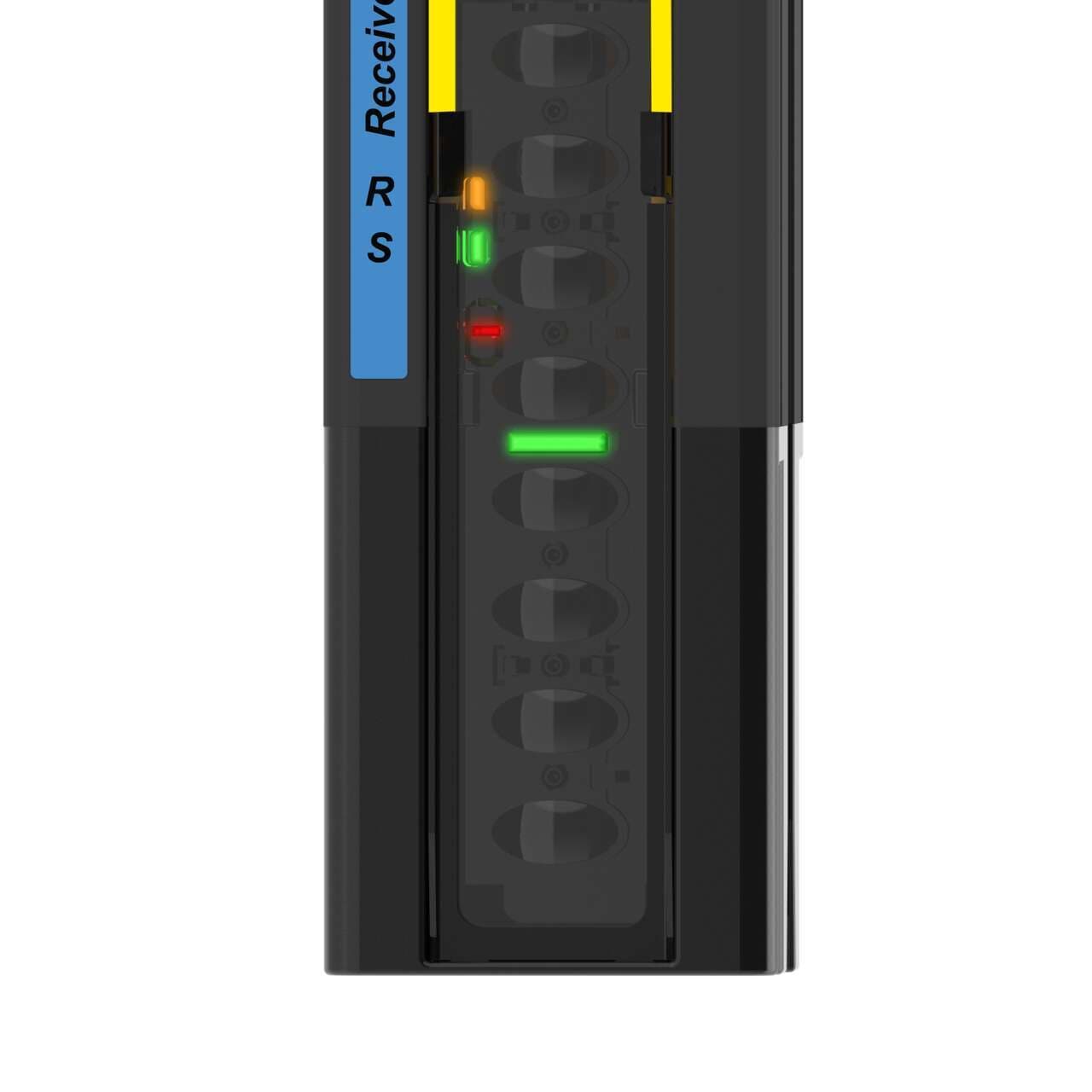

Banner Engineering SLLVE23-1540 is a safety light curtain from the LS Basic heavy-duty safety light curtains series designed for hand detection with a resolution of 23mm. This unit, constructed with an aluminium housing, acrylic lens, and zinc end caps, features a yellow housing and is designed for emitter functionality alone. It offers a protective height of 1540mm and operates with a supply voltage of 24Vdc. The SLLVE23-1540 can function within an ambient air temperature range of -20 to +55°C and is rated with a degree of protection of IP65 and IP67, ensuring durability in various environmental conditions. It has a net width of 36mm, a net height of 1542mm, and a net depth of 45mm. The light curtain operates with a 23mm beam spacing/pitch and an infrared light color at a wavelength of 850 nm. It is capable of sensing distances from 10cm up to 8m and has a response time of 23.5ms. For connectivity, it features a wiring chamber connection and includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter fault indication. Additionally, it is equipped with 1 x digital input (10Vdc-30Vdc; 30mA) for position ID input and 1 x digital input (10Vdc-30Vdc; 30mA) for scan code input.
