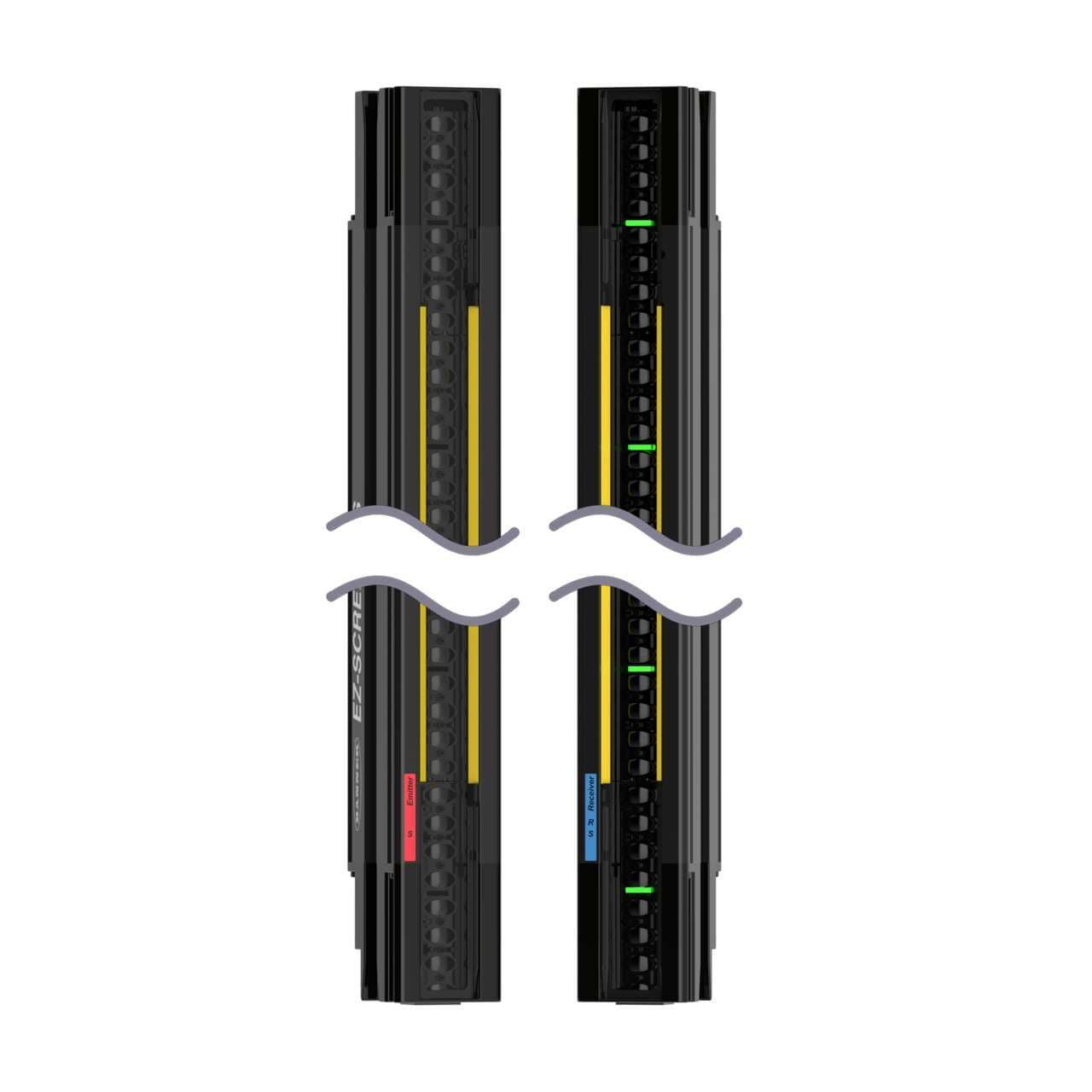

SLLVP23-630 Banner Safety Light Curtains

Banner Engineering SLLVP23-630 is a safety light curtain from the LS Basic heavy-duty safety light curtains series designed for hand detection with a resolution of 23mm. This unit features an aluminium housing with acrylic lens and zinc end caps, ensuring durability. It operates with a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLLVP23-630 offers a protective height of 630mm and comes in a yellow housing. It is designed for easy integration into systems with a wiring chamber connection type. The device boasts an IP65 and IP67 degree of protection, making it suitable for challenging environments. Dimensions include a net width of 36mm, a net height of 634mm, and a net depth of 45mm. It features a 23mm beam spacing/pitch and provides a sensing distance of 10cm to 8m. The light curtain emits infrared (IR) light with a wavelength of 850 nm and has a response time of 12.5ms. For outputs, it includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 1 x digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter FAULT indication. Additionally, it has 1 x digital input (10Vdc-30Vdc; 30mA) for position ID input and 1 x digital input (10Vdc-30Vdc; 30mA) for scan code input.
