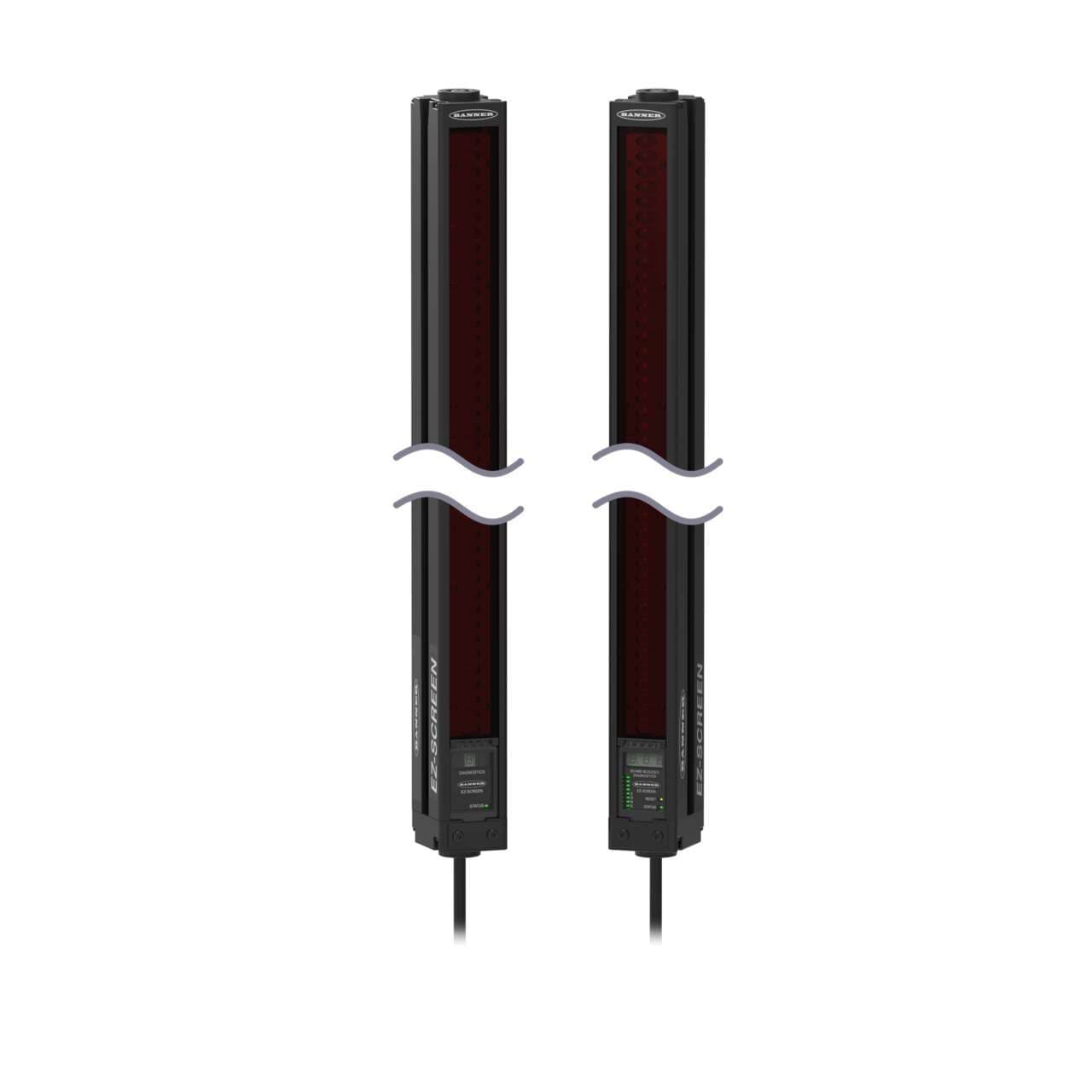

Banner SLSP14-450P88 Banner Engineering SLSP14-450P88 is a safety light curtain from the 14/30 series designed for finger detection with a resolution of 14mm. It features an aluminium housing with an acrylic lens and die-cast zinc end caps, and it is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. This part has a protective height of 450mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSP14-450P88 is IP65 rated, indicating protection against dust ingress and low-pressure water jets from any direction. It offers a sensing distance between 10cm and 6m, with infrared (IR) light color at a wavelength of 850 nm. The safety light curtain provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary purposes. Additionally, it includes one digital input (10Vdc-30Vdc) for EDM input and another for RESET input, with a response time of 19ms / 0.019 seconds.
Banner

Part#:SLSP14-450P88

Manufacturer:Banner

Product Lifecycle:Active

In-stock parts: 3

Sep 28, 2024

Banner Engineering SLSP14-450P88 is a safety light curtain from the 14/30 series designed for finger detection with a resolution of 14mm. It features an aluminium housing with an acrylic lens and die-cast zinc end caps, and it is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector. This part has a protective height of 450mm and comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSP14-450P88 is IP65 rated, indicating protection against dust ingress and low-pressure water jets from any direction. It offers a sensing distance between 10cm and 6m, with infrared (IR) light color at a wavelength of 850 nm. The safety light curtain provides two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary purposes. Additionally, it includes one digital input (10Vdc-30Vdc) for EDM input and another for RESET input, with a response time of 19ms / 0.019 seconds.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLSP14-450P88 Banner price in the box on the right side or send a quick quote.

Product Details

  • Test Input
    No
  • Feature: Integral Muting
    No
  • Feature: ESD Safe
    No
  • Feature: End-to-End Sensing
    No
  • Auxiliary Output
    Yes
  • Trip/Latch Output
    Selectable
  • Supply Current
    375 mA max.
  • OSSD Rating
    24 V dc at 0.5 A each
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Fault Output
    No
  • Vibration
    10-55 Hz at 0.35 mm
  • System Type
    Emitter/Receiver Pair
  • Short Protection
    Yes
  • Shock
    10g at 16ms (6000 cycles)
  • Scan Code
    Selectable
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Response Time
    19
  • Reduced Resolution
    Yes
  • Resolution (mm)
    14
  • IP Rating
    IP65
  • Housing Finish
    Yellow Polyester
  • Recovery Time
    33-220 / 109-800
  • PL Rating
    Ple
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • Operating Voltage
    24 V dc +/- 15%
  • Operating Distance (m)
    0.1 - 6
  • Number of Pins (Receiver/Emitter)
    8
  • Fixed Blanking
    Yes
  • Primary Housing Material
    Aluminum
  • Safety Level
    Type 4
  • External Monitoring Device
    1 or 2 Channel
  • Overall Length (mm)
    522
  • Connector Type
    M12 Pigtail (Yellow)
  • Dimensions WxD (mm)
    36 x 45.2
  • Defined Area Height (mm)
    450
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents SLSP14-450P88 Specs

SLSP14-450P88 EZ-SCREEN, SLS 450mm QDP/CABLE.pdf
SLSP14-450P88 EZ-SCREEN, SLS 450mm QDP/CABLE.stp
SLSP14-450P88 SLS/SLSC/EA END BRACKET.stp
