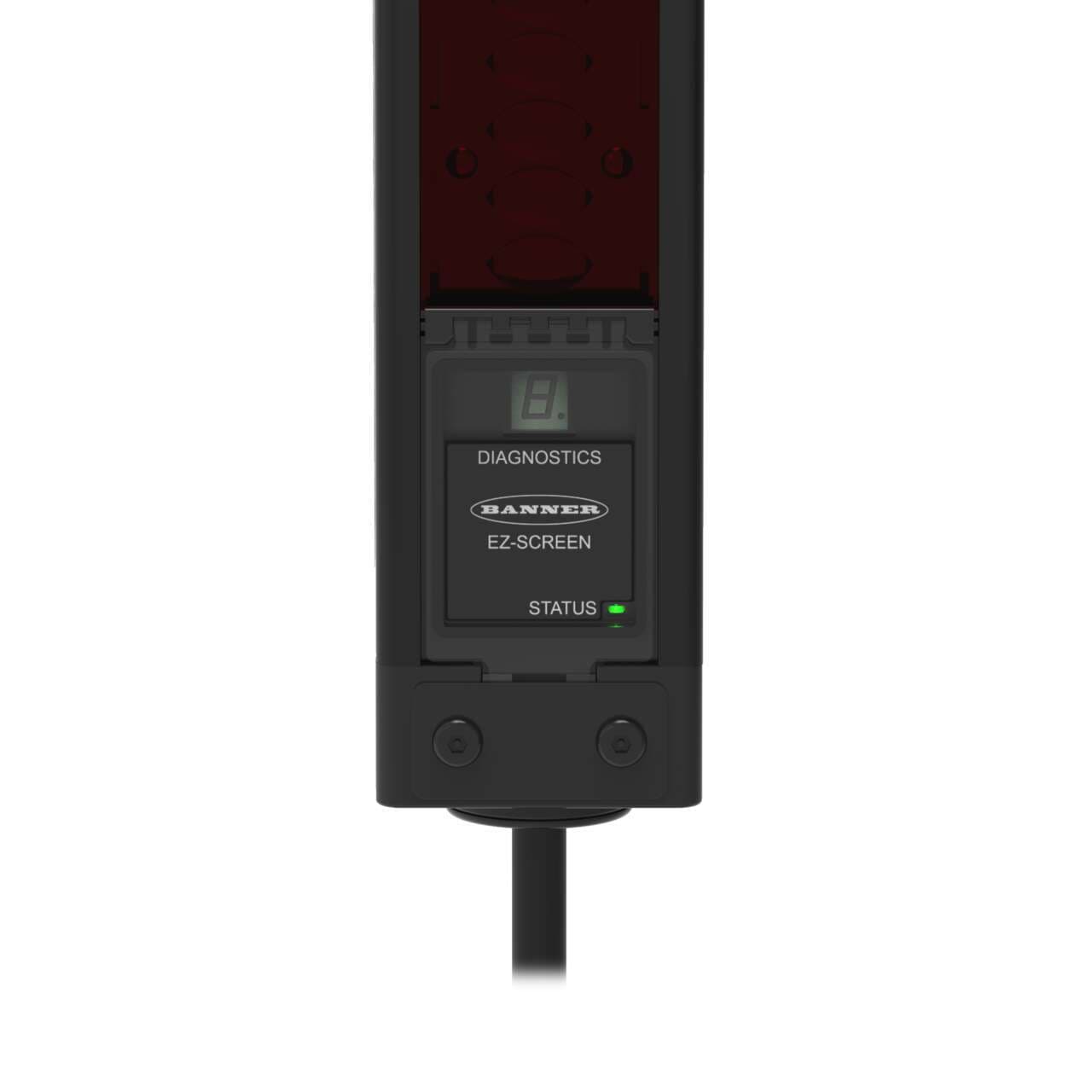

SLSP14-1050P88 Banner Safety Light Curtains

Name: SLSP14-1050P88
Brand: Banner
Price: 4372 USD
Availability: BackOrder

Part#:SLSP14-1050P88

Alt. Part#:73954

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

EZ-SCREEN Pair; Resolution: 14 mm; Range: 6 m (20 ft); Defined Area: 1050 mm (41.3 in); Housing Length: 1120 mm (44.1 in); Connection: 8-pin M12 Pigtail Connectors; Emitter: No test input

Product Details

Weight
7402.62144 g
Country Of Origin
MX
Feature: Integral Muting
No
Feature: ESD Safe
No
Supply Current
375 mA max.
Feature: End-to-End Sensing
No
Test Input
No
OSSD Rating
24 V dc at 0.5 A each
Housing Material
Aluminum; Zinc; Acrylic
Trip/Latch Output
Selectable
Fault Output
No
Auxiliary Output
Yes
Vibration
10-55 Hz at 0.35 mm
Electrical Safety Class
III
System Type
Emitter/Receiver Pair
Scan Code
Selectable
Shock
10g at 16ms (6000 cycles)
Short Protection
Yes
SIL Rating
SIL3; CL3
Response Time
36

Reduced Resolution

Yes

Recovery Time

33-220 / 109-800

Resolution (mm)

PL Rating

Ple

Operating Temperature

0 to +55 deg. C; RH 95%

Operating Voltage

24 V dc +/- 15%

Operating Distance (m)

0.1 - 6

Number of Pins (Receiver/Emitter)

IP Rating

IP65

Fixed Blanking

Yes

External Monitoring Device

1 or 2 Channel

Safety Level

Type 4

Housing Finish

Yellow Polyester

Primary Housing Material

Aluminum

Effective Aperture Angle

Type 4 Per IEC 61496-2

low-profile

Dimensions WxD (mm)

36 x 45.2

Defined Area Height (mm)

1050

Connector Type

M12 Pigtail (Yellow)

Overall Length (mm)

1120

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLSP14-1050P88 on Powermatic Associates is $4,372.00. Order now.

About the product

Banner Engineering SLSP14-1050P88 is a safety light curtain designed for finger detection with a resolution of 14mm. This component of the 14/30 series features an aluminium housing, acrylic lens, and die-cast zinc end caps, ensuring durability. It is pre-wired with a 300mm pigtail that terminates with an 8-pin Euro-style M12 connector for easy installation. The protective height of the device is 1050mm, and it comes in a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suitable for various industrial environments. The SLSP14-1050P88 offers a sensing distance from 10cm to 6m and utilizes infrared light with a wavelength of 850 nm. It features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary functions. Additionally, it includes one digital input (10Vdc-30Vdc) for EDM and one for RESET, with a response time of 36ms.

SLSP14-1050P88 Related Documents

112852.pdf
