QT50R-US-AFH Banner Safety Light Curtains

QT50R-US-AFH on Powermatic Associates
Banner

Part#:QT50R-US-AFH

Manufacturer:Banner

Category:Safety Light Curtains

Alt. Part#:25364

Product Lifecycle:Active

In-stock parts: 2

Dec 21, 2024

R-Gage Series Radar Sensor; Adjustable Field; Outputs: Bipolar: 1 NPN; 1 PNP; Supply Voltage: 12-30 V dc; Range: 3.5 - 24 m; 2 m Cable

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the QT50R-US-AFH Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    453.592 g
  • Country Of Origin
    US
  • Cert: Canada
    Yes
  • Cert: US
    Yes
  • Wireless
    No
  • SSI
    No
  • RS-422
    No
  • 1-wire Serial Interface
    No
  • RS-485
    No
  • RS-232
    No
  • PROFINET
    No
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Chemical Resistant
    No
  • Common Ethernet Protocol
    No
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • Profibus
    No
  • IO Link
    No
  • Min Operating Temperature (°C)
    -40
  • Minimum Response Time (ms)
    30
  • Max Operating Temperature (°C)
    65
  • IP Rating
    IP67
  • Power Supply
    12-30 V dc
  • Output Protection
    Protected against short circuit
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Delay at Power-up (ms)
    2000
  • Max Discrete (Switched) Output (mA)
    150
  • Number of Pins
    5
  • Adjustments
    Dip Switch
  • Minimum Sensing Distance (mm)
    3500
  • Max Sensing Distance (mm)
    24000
  • Quick Disconnect Type
    No QD
  • Input/Output
    Discrete
  • Primary Housing Material
    ABS/Polycarbonate
  • Radar Beam Pattern (H x V °)
    90 x 76
  • Connection
    Flying Leads
  • Indicator
    LED(s)
  • Device Type
    Sensor
  • Housing Style
    Rectangular
  • Sensing Beam
    Radar
  • Sensing Mode (General)
    Proximity
  • Sensing Mode (Detailed)
    Time of Flight
  • Power
    DC
  • PC Configurable
    No
  • Cable Length (m)
    2
  • Operating Frequency
    24 GHz
  • Max Measurement Range
    >20 m - <=50 m
  • Main function
    Sensor (Radar)
  • Sub-range name
    QT50R-AFH
  • Sensing distance
    3.5...24m
  • Shape
    Rectangular
  • Degree of protection
    IP67
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Material
    ABS / polycarbonate housing
  • Equivalent to
    QT50RUSAFH
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Compliant with standard(s)
    cULus CE
  • Product series / family name
    R-GAGE series
  • Design
    time-of-flight system
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Ambient air temperature for operation
    -40...+65 °C
  • Order code / Manufacturer SKU
    25364
  • Functions
    Collision-avoidance adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Protection functions
    Reverse polarity Short-circuit

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QT50R-US-AFH Description

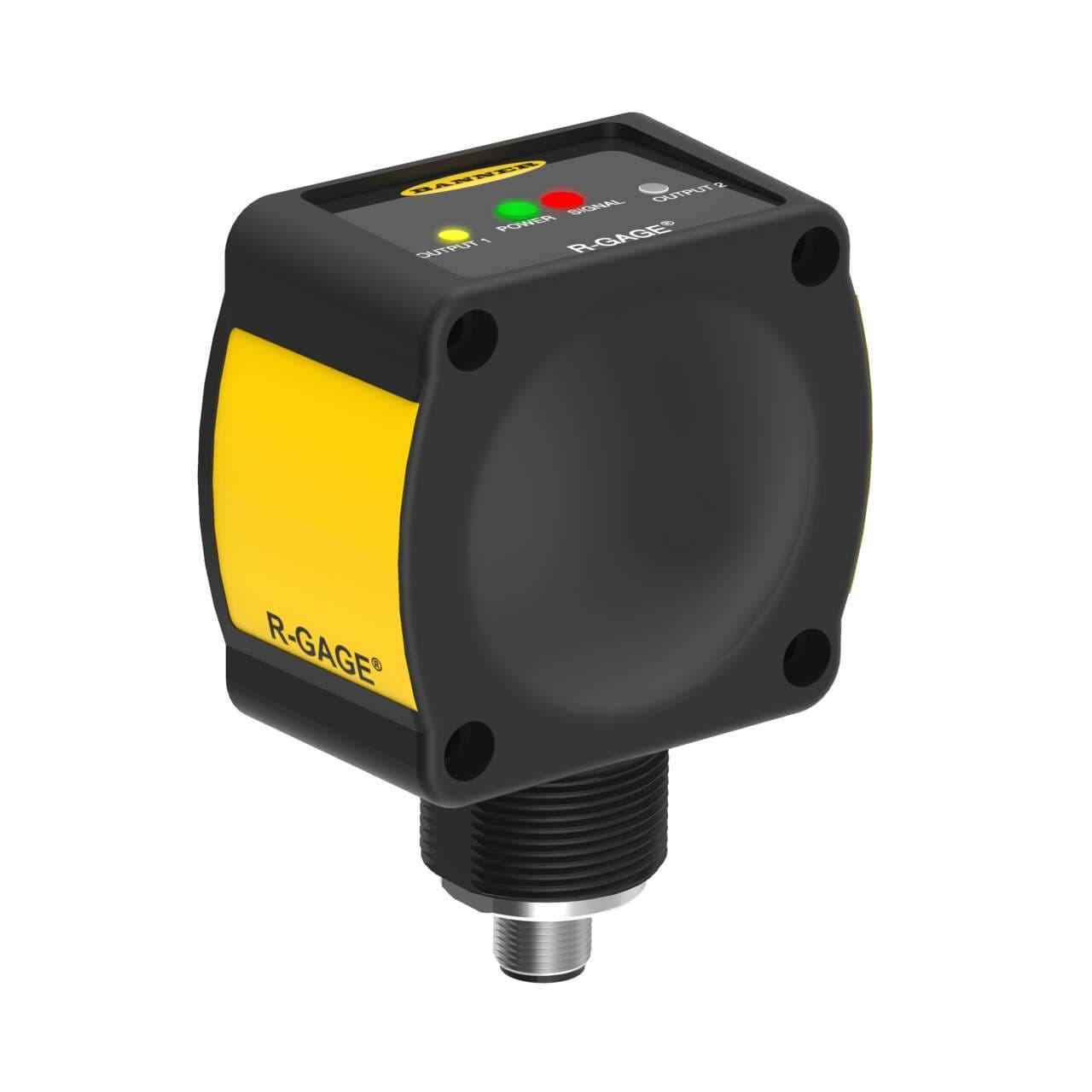

Banner Engineering QT50R-US-AFH is a collision-avoidance adjustable-field radar sensor designed with a time-of-flight system and is approved for use in the US, Canada, and Brazil. It operates within an ambient air temperature range of -40 to +65°C and is housed in an ABS / Polycarbonate (PC) material, ensuring durability. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. It belongs to the QT50R-AFH series and offers a sensing distance of 3.5 to 24m. With an IP67 degree of protection, it is well-suited for challenging environments. The QT50R-US-AFH operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and features a rectangular shape. It supports both Normally Open (NO) and Normally Closed (NC) operating modes and includes 1 x digital output (PNP/NPN transistor). Protection functions include reverse polarity and short-circuit protection, enhancing its operational safety and reliability.
