SLLCP23-700 Banner Safety Light Curtains
Part#:SLLCP23-700
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

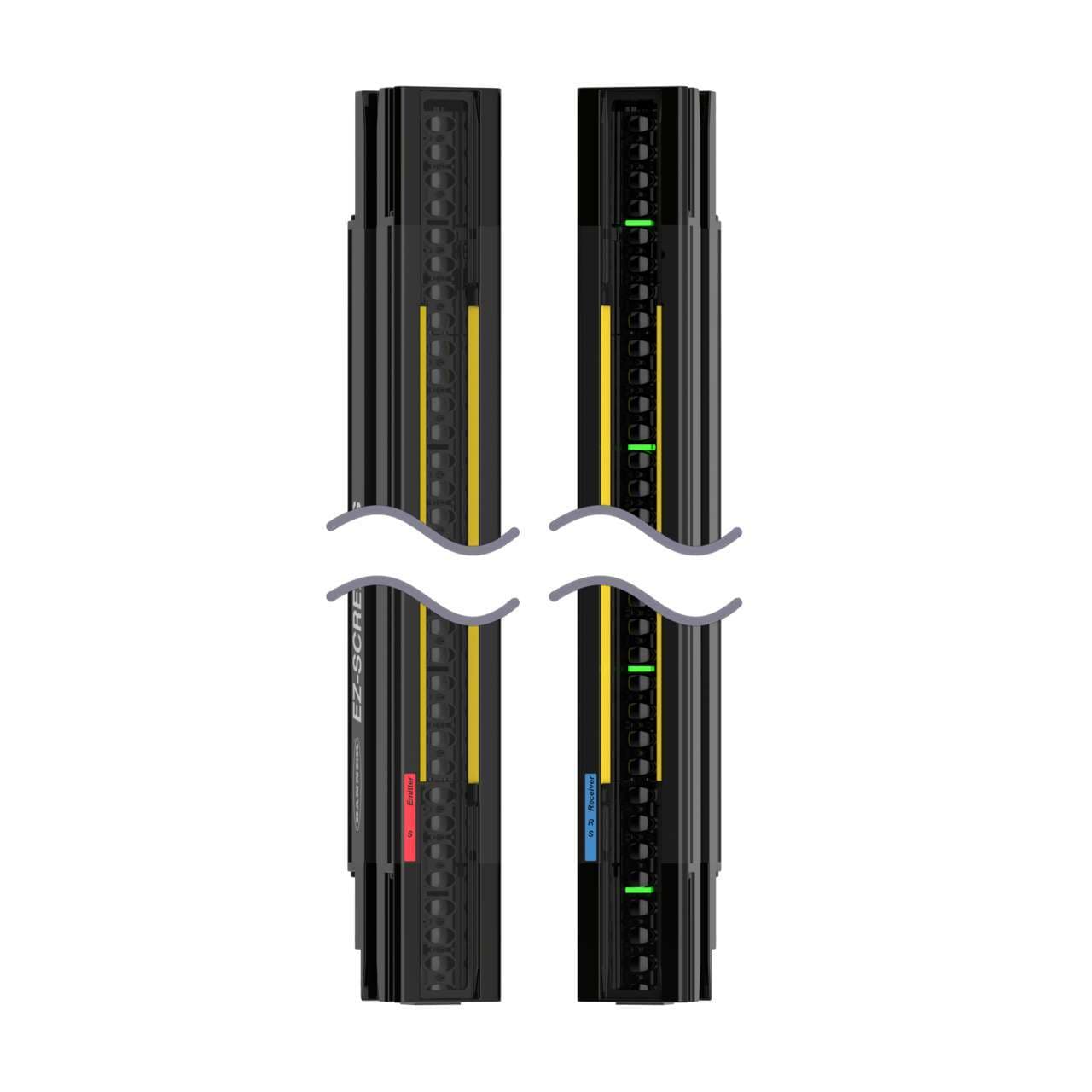

Banner Engineering SLLCP23-700 is a safety light curtain from the LS series type 4 safety light curtains, designed with a cascadable feature. It comprises an emitter and receiver pair housed in aluminum with acrylic lens and zinc end caps. This part offers a protective height of 700mm and operates with a supply voltage of 24Vdc. It is suitable for ambient air temperatures ranging from -20 to +55°C and provides a degree of protection rated at IP65 and IP67. The dimensions include a net width of 36mm, a net height of 704mm, and a net depth of 45mm. The SLLCP23-700 features a yellow housing and utilizes a wiring chamber connection type. It has a 23mm beam spacing/pitch for hand detection, operates with infrared light at a wavelength of 850 nm, and has a sensing distance between 10cm and 12m. The response time is 13.3ms, and it includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status, and one digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter FAULT indication.
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLLCP23-700 Banner price in the box on the right side or send a quick quote.
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
SLLCP23-700 Description
Banner Engineering SLLCP23-700 is a safety light curtain from the LS series type 4 safety light curtains, designed with a cascadable feature. It comprises an emitter and receiver pair housed in aluminum with acrylic lens and zinc end caps. This part offers a protective height of 700mm and operates with a supply voltage of 24Vdc. It is suitable for ambient air temperatures ranging from -20 to +55°C and provides a degree of protection rated at IP65 and IP67. The dimensions include a net width of 36mm, a net height of 704mm, and a net depth of 45mm. The SLLCP23-700 features a yellow housing and utilizes a wiring chamber connection type. It has a 23mm beam spacing/pitch for hand detection, operates with infrared light at a wavelength of 850 nm, and has a sensing distance between 10cm and 12m. The response time is 13.3ms, and it includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status, and one digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter FAULT indication.
Manufacturer warranty
$2,085.00
Request a quote, and we will send availability within minutes.
Select Qty:
$2,085.00
$2,085.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
