SLSP30-1200Q88 Banner Electronic Components

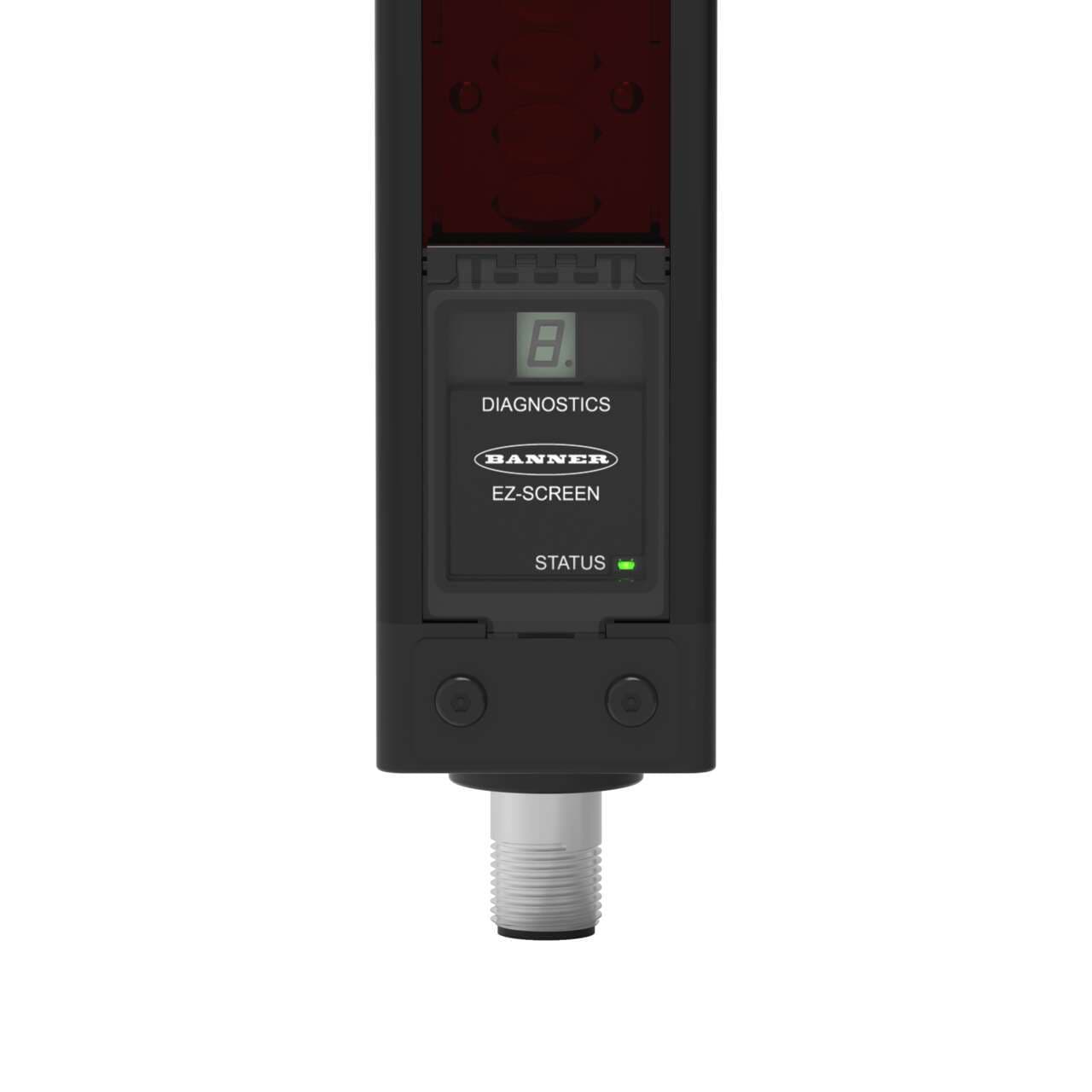

Banner SLSP30-1200Q88 Banner Engineering SLSP30-1200Q88 is a safety light curtain designed for hand detection with a resolution of 30mm, part of the 14/30 series. This unit features an emitter and receiver pair housed in aluminum with acrylic lenses and die-cast zinc end caps. It is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The protective height of the curtain is 1200mm, and it has a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSP30-1200Q88 offers a degree of protection rated at IP65 and has dimensions of 36mm in width, 1270mm in height, and 46mm in depth. The beam spacing or pitch is 30mm, and it has a sensing distance ranging from 10cm to 18m. The light curtain emits infrared light with a wavelength of 850 nm. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, and two digital inputs (10Vdc-30Vdc) for EDM and RESET functions. The response time of the device is 23ms.
Banner

Part#:SLSP30-1200Q88

Manufacturer:Banner

Product Lifecycle:Active

In-stock parts: 2

Sep 28, 2024

Banner Engineering SLSP30-1200Q88 is a safety light curtain designed for hand detection with a resolution of 30mm, part of the 14/30 series. This unit features an emitter and receiver pair housed in aluminum with acrylic lenses and die-cast zinc end caps. It is pre-equipped with an 8-pin Euro-style M12 connector for connectivity. The protective height of the curtain is 1200mm, and it has a yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of 0 to +55°C. The SLSP30-1200Q88 offers a degree of protection rated at IP65 and has dimensions of 36mm in width, 1270mm in height, and 46mm in depth. The beam spacing or pitch is 30mm, and it has a sensing distance ranging from 10cm to 18m. The light curtain emits infrared light with a wavelength of 850 nm. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; sourcing/PNP transistor; 75mA) for auxiliary output, and two digital inputs (10Vdc-30Vdc) for EDM and RESET functions. The response time of the device is 23ms.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLSP30-1200Q88 Banner price in the box on the right side or send a quick quote.

Product Details

  • Vibration
    10-55 Hz at 0.35 mm
  • Shock
    10g at 16ms (6000 cycles)
  • Feature: Integral Muting
    No
  • Feature: End-to-End Sensing
    No
  • Feature: ESD Safe
    No
  • Test Input
    No
  • Trip/Latch Output
    Selectable
  • OSSD Rating
    24 V dc at 0.5 A each
  • Supply Current
    375 mA max.
  • Fault Output
    No
  • Housing Material
    Aluminum; Zinc; Acrylic
  • Auxiliary Output
    Yes
  • System Type
    Emitter/Receiver Pair
  • Short Protection
    Yes
  • Resolution (mm)
    30
  • Scan Code
    Selectable
  • Electrical Safety Class
    III
  • SIL Rating
    SIL3; CL3
  • Reduced Resolution
    Yes
  • Response Time
    23
  • PL Rating
    Ple
  • Operating Distance (m)
    0.1 - 18
  • Recovery Time
    25-152 / 81-495
  • Operating Temperature
    0 to +55 deg. C; RH 95%
  • IP Rating
    IP65
  • Operating Voltage
    24 V dc +/- 15%
  • Number of Pins (Receiver/Emitter)
    8
  • Housing Finish
    Yellow Polyester
  • Fixed Blanking
    Yes
  • External Monitoring Device
    1 or 2 Channel
  • Overall Length (mm)
    1270
  • Dimensions WxD (mm)
    36 x 45.2
  • Connector Type
    M12
  • Primary Housing Material
    Aluminum
  • Safety Level
    Type 4
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Defined Area Height (mm)
    1200
  • low-profile
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents SLSP30-1200Q88 Specs

SLSP30-1200Q88 SLS/SLSC/EA END BRACKET.stp
SLSP30-1200Q88 EZ-SCREEN, SLS 1200mm QD.pdf
SLSP30-1200Q88 EZ-SCREEN, SLS 1200mm QD.stp
