SLLVR23-630 Banner Safety Light Curtains

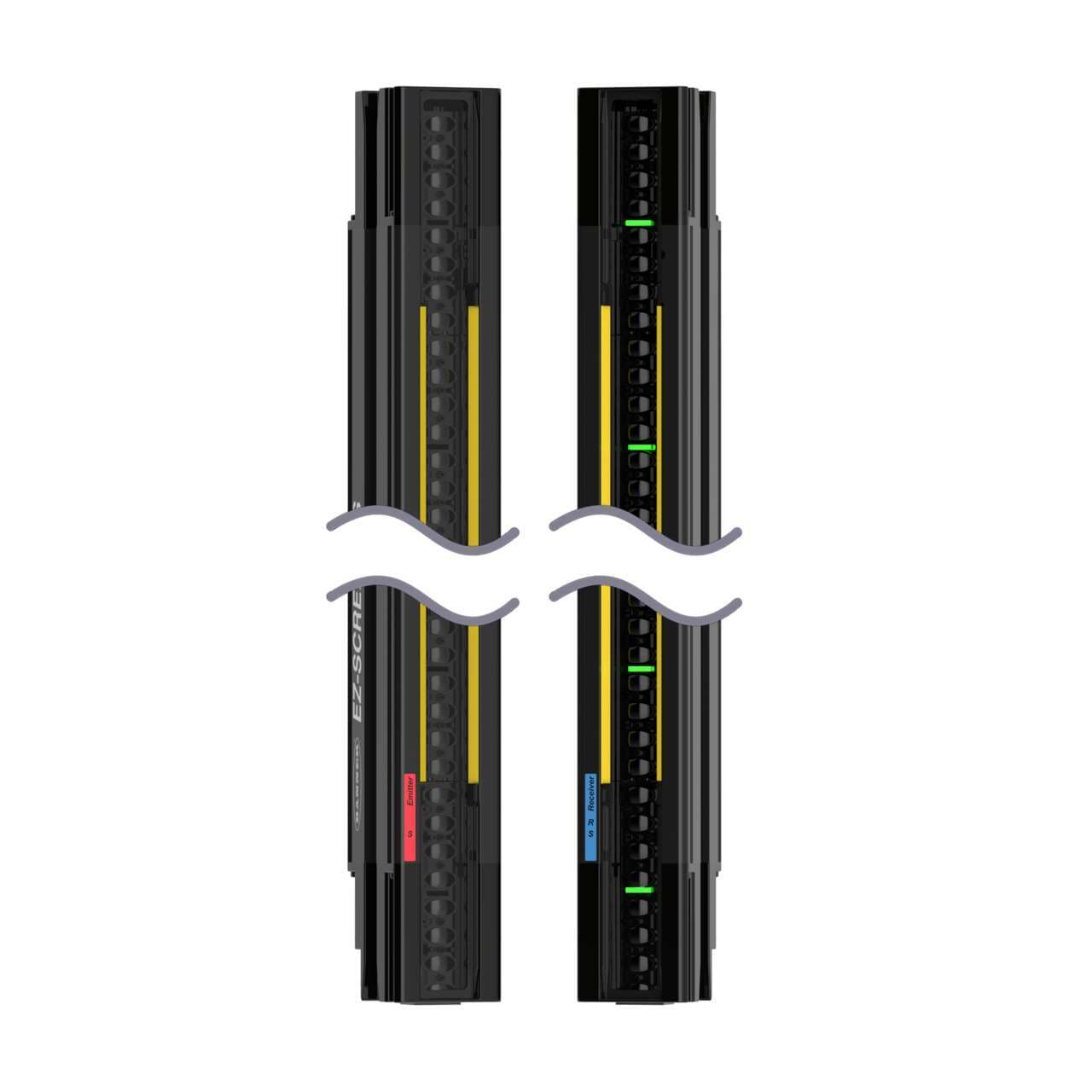

Banner Engineering SLLVR23-630 is a safety light curtain from the LS Basic heavy-duty safety light curtains series designed for hand detection with a resolution of 23mm. This receiver unit features an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. It operates with a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLLVR23-630 offers a protective height of 630mm and is equipped with a wiring chamber connection for installation. It has a yellow housing, adhering to visibility standards. This part is designed to provide a sensing distance from 10cm up to 8m, utilizing infrared (IR) light with a wavelength of 850 nm. It includes 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) for reliable signaling and 2 x digital inputs (10Vdc-30Vdc; 30mA) for position ID and scan code inputs. With a response time of 12.5ms, a net width of 36mm, a net height of 634mm, and a net depth of 45mm, this safety light curtain is protected against ingress with IP65 and IP67 ratings, suitable for various industrial environments.
