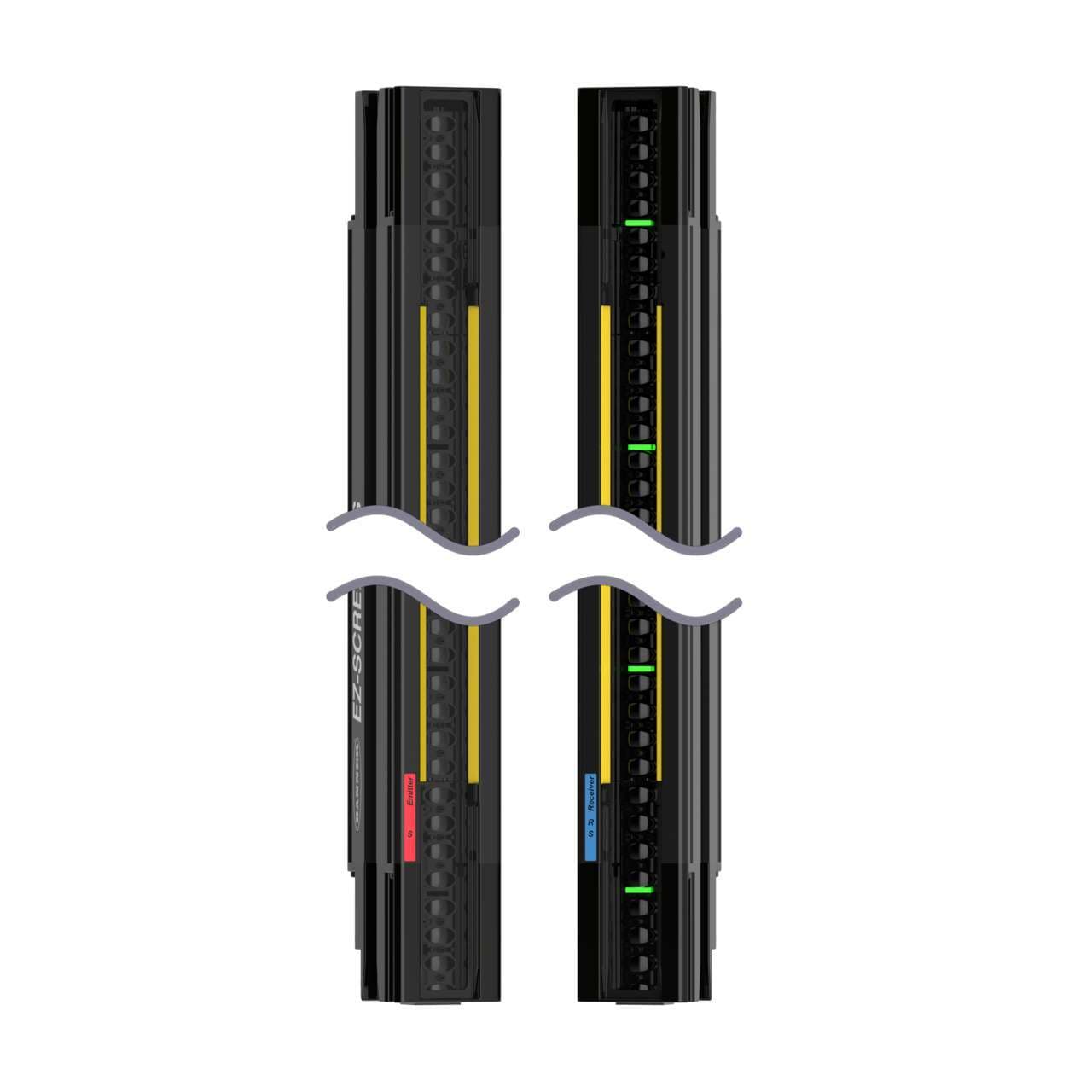

SLLVR23-910 Banner Safety Light Curtains

Banner Engineering SLLVR23-910 is a safety light curtain from the LS Basic heavy-duty safety light curtains series designed for hand detection with a resolution of 23mm. This receiver unit is encased in an aluminium housing with an acrylic lens and zinc end caps, featuring a yellow housing color. It offers a protective height of 910mm and operates with a supply voltage of 24Vdc. The SLLVR23-910 is designed to function within an ambient air temperature range of -20 to +55°C and is rated with a degree of protection of IP65 and IP67, ensuring durability in various environmental conditions. It has a net width of 36mm, a height of 914mm, and a depth of 45mm. The unit is equipped with 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 2 x digital inputs (10Vdc-30Vdc; 30mA) for position ID and scan code inputs. It features a 23mm beam spacing/pitch, a sensing distance ranging from 10cm to 8m, and operates with an infrared light color at a wavelength of 850 nm. The response time of the device is 15.9ms / 0.0159 s, and it connects via a wiring chamber connection.
