SLLVR23-1050 Banner Safety Light Curtains

Banner SLLVR23-1050 EZ-SCREEN LS BASIC, Receiver; Resolution: 23 mm; Range: 8 m (26 ft); Defined Area: 1050 mm (41.3 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware Ordered Separately
Banner

Part#:SLLVR23-1050

Manufacturer:Banner

Alt. Part#:804065

Product Lifecycle:Active

Get a quick Quote!

EZ-SCREEN LS BASIC, Receiver; Resolution: 23 mm; Range: 8 m (26 ft); Defined Area: 1050 mm (41.3 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware Ordered Separately

About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLLVR23-1050 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    3401.94 g
  • Country Of Origin
    US

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLLVR23-1050 Description

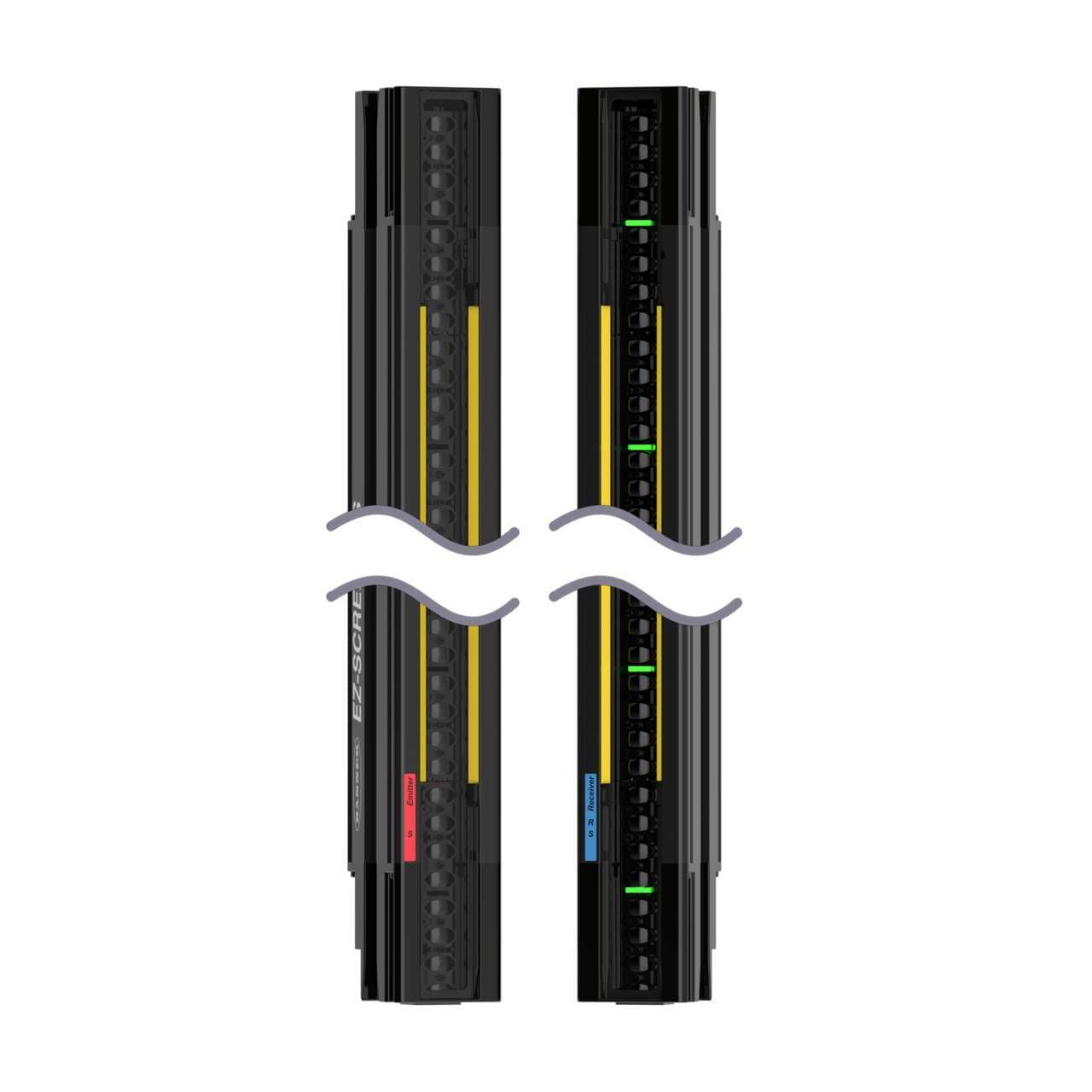

Banner Engineering SLLVR23-1050 is a safety light curtain from the LS Basic heavy-duty safety light curtains series, designed specifically as a receiver unit. It features an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. This model offers a protective height of 1050mm and is characterized by its yellow housing. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLLVR23-1050 is designed to provide a high degree of protection with ratings of IP65 and IP67, making it suitable for challenging environments. It has a net width of 36mm, a height of 1053mm, and a depth of 45mm. The light curtain offers a 23mm beam spacing/pitch for hand detection and features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) alongside two digital inputs (10Vdc-30Vdc; 30mA) for position ID and scan code inputs. It has a sensing distance range from 10cm to 8m and utilizes infrared (IR) light with a wavelength of 850 nm. The response time of the device is 17.5ms / 0.0175 s, and it connects via a wiring chamber connection.

Related documents SLLVR23-1050 Specs

SLLVR23-1050 204120.pdf

Manufacturer warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
