SLLVR23-350 Banner Safety Light Curtains

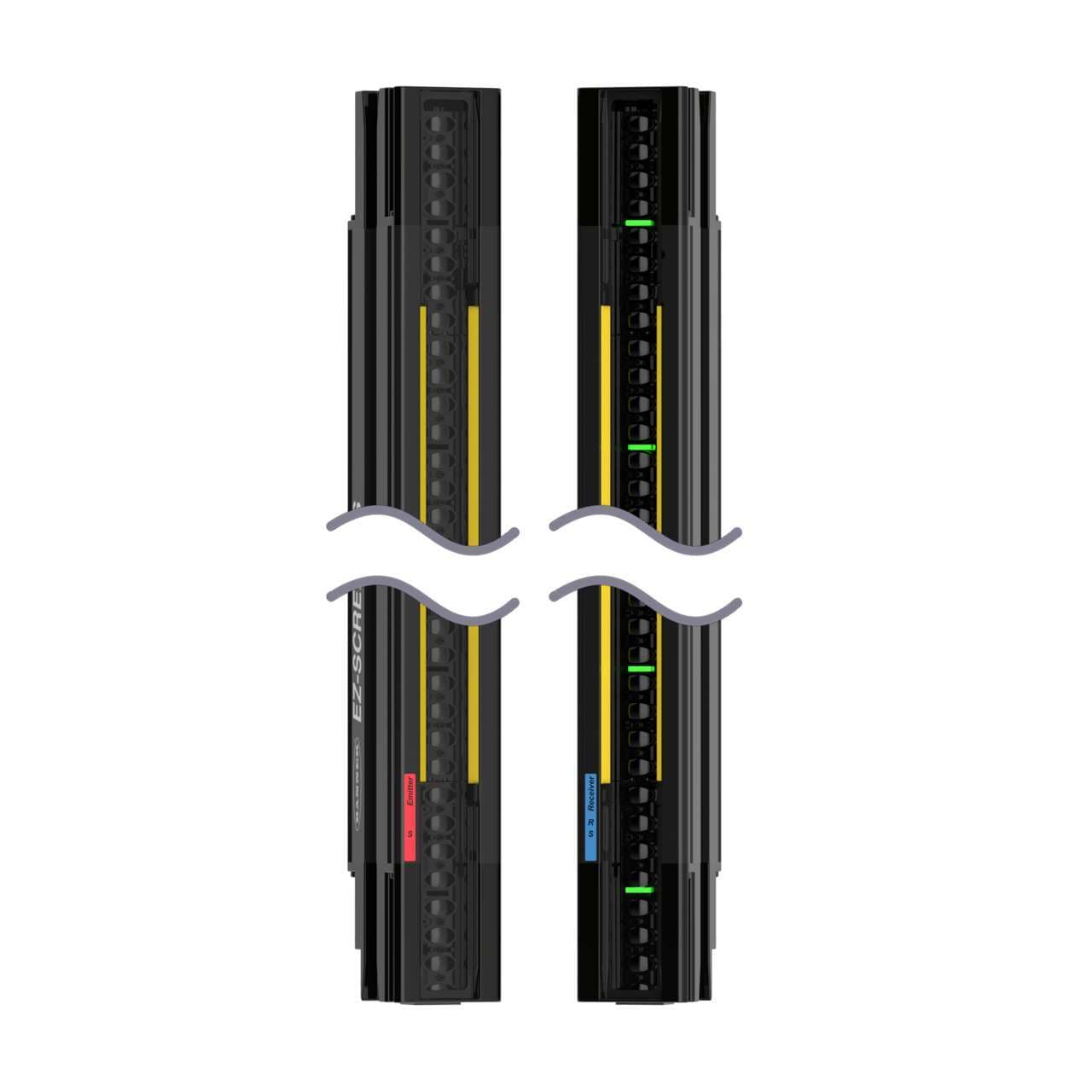

Banner Engineering SLLVR23-350 is a safety light curtain from the LS Basic heavy-duty safety light curtains series designed for hand detection with a resolution of 23mm. This receiver unit features an aluminium housing with an acrylic lens and zinc end caps, ensuring durability. It operates with a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLLVR23-350 offers a protective height of 350mm and is equipped with a wiring chamber connection for installation. It has a yellow housing, adhering to visibility standards, and provides a degree of protection rated at IP65 and IP67, making it suitable for challenging environments. The unit has a net width of 36mm, a height of 355mm, and a depth of 45mm. With 23mm beam spacing/pitch, it supports a sensing distance from 10cm up to 8m. The light curtain emits infrared light with a wavelength of 850nm and has a response time of 9.1ms. It features 2 x digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and 2 x digital inputs (10Vdc-30Vdc; 30mA) for position ID and scan code inputs, facilitating versatile integration into safety systems.
