QS30VR3FF400QPMA16

Banner

Product Lifecycle: Active

Banner Engineering QS30VR3FF400QPMA16 is a fixed-field photo-electric sensor designed for precision detection tasks. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is equipped with a background suppression system and is intended for use with the SMBQS30YL bracket. It comes pre-wired with a 6-inch (150mm) PUR cable that terminates with a 5-pin 1/2" micro connector, facilitating easy and quick connections. The QS30VR3FF400QPMA16 operates on a universal voltage range, accepting 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac nominal) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc nominal), making it versatile for various power supply configurations. It boasts an IP67 NEMA 6 degree of protection, ensuring durability in harsh environments. The sensor's housing is made from thermoplastic with an acrylic lens and a polyurethane (PUR) cable sheath for enhanced durability. It has a sensing distance of 400mm and utilizes visible red light for detection. The operating modes include Light-ON and Dark-ON, with a single digital output (SPDT relay contact) and a response time of 15ms (0.015 seconds), ensuring timely and accurate sensing performance.

QS30VR3FF400QPMA16

Banner Engineering QS30VR3FF400QPMA16 is a fixed-field photo-electric sensor designed for precision detection tasks. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is equipped with a background suppression system and is intended for use with the SMBQS30YL bracket. It comes pre-wired with a 6-inch (150mm) PUR cable that terminates with a 5-pin 1/2" micro connector, facilitating easy and quick connections. The QS30VR3FF400QPMA16 operates on a universal voltage range, accepting 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac nominal) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc nominal), making it versatile for various power supply configurations. It boasts an IP67 NEMA 6 degree of protection, ensuring durability in harsh environments. The sensor's housing is made from thermoplastic with an acrylic lens and a polyurethane (PUR) cable sheath for enhanced durability. It has a sensing distance of 400mm and utilizes visible red light for detection. The operating modes include Light-ON and Dark-ON, with a single digital output (SPDT relay contact) and a response time of 15ms (0.015 seconds), ensuring timely and accurate sensing performance.

QS30VR3FF CABLE.pdf

QS30 Universal Voltage Series -- Instruction Manual.pdf

QS30VR3FF CABLE.stp

Product details

QS30VR3FF CABLE.pdf

QS30 Universal Voltage Series -- Instruction Manual.pdf

QS30VR3FF CABLE.stp

Sensing Beam Wavelength680
Special Feature: Remote TeachNo
ConnectionPigtail PUR QD
Output response time (ms)15
Special Feature: Intrinsically SafeNo
Min Op. Temp. (°C)-20

Max Op. Temp. (°C)70

Sensing BeamVisible Red LED

Quick Disconnect Type1/2 in. (Micro)

PowerAC/DC Universal

Power Supply/Supply Voltage12-250 V dc or 24-250 V ac

Primary Housing MaterialThermoplastic

Sensing Mode (Detailed)Background Suppression (Fixed)

OutputsSPDT e/m Relay

Input/OutputE/M Relay

Feature: AudibleNo

Barrel Diameter (mm)30

IP RatingIP67

Number of Pins5

OperationLight/Dark Operate

Housing StyleRectangular w/M30 Mount

Sensing Mode (General)Proximity

Max Sensing Distance (mm)400

Product series / family nameWORLD-BEAM series

Main functionSensor (Photo-electric)

Sensing distance400mm

ShapeRectangular

Sub-range nameQS30 Universal Voltage Series

Light ColorVisible red

Designbackground suppression system

Thread sizeM30

Operating modeLight-ON Dark-ON

Mounting modeThreaded mount

Degree of protectionIP67 NEMA 6

Ambient air temperature for operation-20...+70 °C

Order code / Manufacturer SKU73075

IO LinkNo

DeviceNetNo

Feature: Chemical ResistantNo

Feature: EncapsulatedNo

Feature: Hazardous AreaNo

Feature: Timing (Hold/Delay)No

Opposed Mode Emitter/ReceiverN/A

IndicatorLEDs

AdjustmentsN/A

Lens MaterialAcrylic

NEMA RatingNEMA 6

Max Op. Relative Humidity [%]95% @ 50°C

Special Feature: Water DetectionNo

Repeatability (µs)N/A

Delay at Power-up (ms)100

FunctionsFixed-field photo-electric sensor green LED (power ON) yellow LED (output state)

Connection typePre-wired with 6" / 150mm PUR pigtail terminated with 5-pin 1/2" Micro connector

Supply voltage (DC)12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)

Digital outputs1 x digital output (SPDT contact type)

Primary brandBanner Engineering

Materialthermoplastic housing Acrylic lns. PUR pigtail

Supply voltage (AC)24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)

Response time15ms / 0.015 s

Compliant with standard(s)cULus CE

Get a quick quote

Select Qty:

Average response time:

11 minutes

This part can ship within 24h!

Fast worldwide Shipping and Delivery

Shipping cost will be calculated during checkout

Payments methods

Secure Payment Processing
with money back guarantee

1 year warranty on all parts

Responsive Customer Support
with personalized assistance

Need more details?

Feel free to chat with us.

Relevant products

SI-HG63FQDL

Banner Engineering SI-HG63FQDL is a door switch from the SI-HG63 series, designed as a 270° hinge motion switch that is mounted on the left. This safety interlock switch hinge features a thermoplastic housing with a stainless steel hinge. It comes pre-equipped with a 6-pin Euro-style M12 connector for connectivity. The switch includes 1NO+2NC contacts for operation, with an ambient air temperature range for operation between -25 and +70 °C. It offers a degree of protection rated at IP67, with 1 Normally Open (NO) auxiliary contact and 2 Normally Closed (NC) auxiliary contacts.

SM312LVAGQDP

Banner Engineering SM312LVAGQDP is a polarized photo-electric sensor from the SM312 series, designed in a retro-reflective mode with potentiometer adjustment. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. This sensor operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can be mounted using an M18 threaded mount. It is designed to operate within an ambient air temperature range of -20 to +70°C and offers a degree of protection rated at IP67, NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 12. The rectangular-shaped sensor provides 1 x digital output (PNP/NPN transistor), has a sensing distance of 55mm to 2m, emits visible red light, and has a response time of 1ms / 0.001 s. It supports both Light-ON and Dark-ON operating modes.

This item can ship within 24h!

QS30LD-79194

Banner Engineering QS30LD-79194 is a Class 1 laser photo-electric sensor designed for a variety of detection applications. It features a diffuse mode with TEACH mode functionality and is equipped with an M30 threaded mount for secure installation. This sensor operates within an ambient air temperature range of -10 to +50°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. It comes pre-wired with a 60" / 1.5m pigtail that terminates with a 4-pin Pico-style M8 connector for easy connection. As part of the QS30 Diffuse-mode Laser sensors series, it offers a sensing distance of 400mm and emits a visible red light with a wavelength of 650 nm. The QS30LD-79194 supports both Light-ON and Dark-ON operating modes and provides a single digital output (PNP/NPN transistor) with a rapid response time of 0.225ms / 0.000225 s. It requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is protected to IP67 NEMA 6 standards, making it suitable for challenging environments.

BT13S

Banner Engineering BT13S, part of the Glass fiber series, is a fiber optic sensor designed with a diffuse-reflective system and bifurcated fiber in-line sensing. It features a brass sensing end, glass fiber, and a stainless steel monocoil construction. The sensor has a 1.6mm fiber core diameter and comes in a cylindrical shape with a threaded end tip. It measures 3ft or 910mm in length. This sensor is capable of operating in ambient air temperatures up to +249°C.

QDE2R4-825D

Banner Engineering QDE2R4-825D is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.5mm diameter PVC cable and a 5-pin Euro-style M12 male connector to bare end flying leads. This cable operates effectively within an ambient air temperature range of -40 to +105°C. It offers a degree of protection rated at IP67, making it suitable for environments where dust and water resistance are necessary. The cable is sheathed in yellow, measures 7.62 meters in length, and is rated for 75Vdc and 60Vac, accommodating a broad range of electrical requirements.

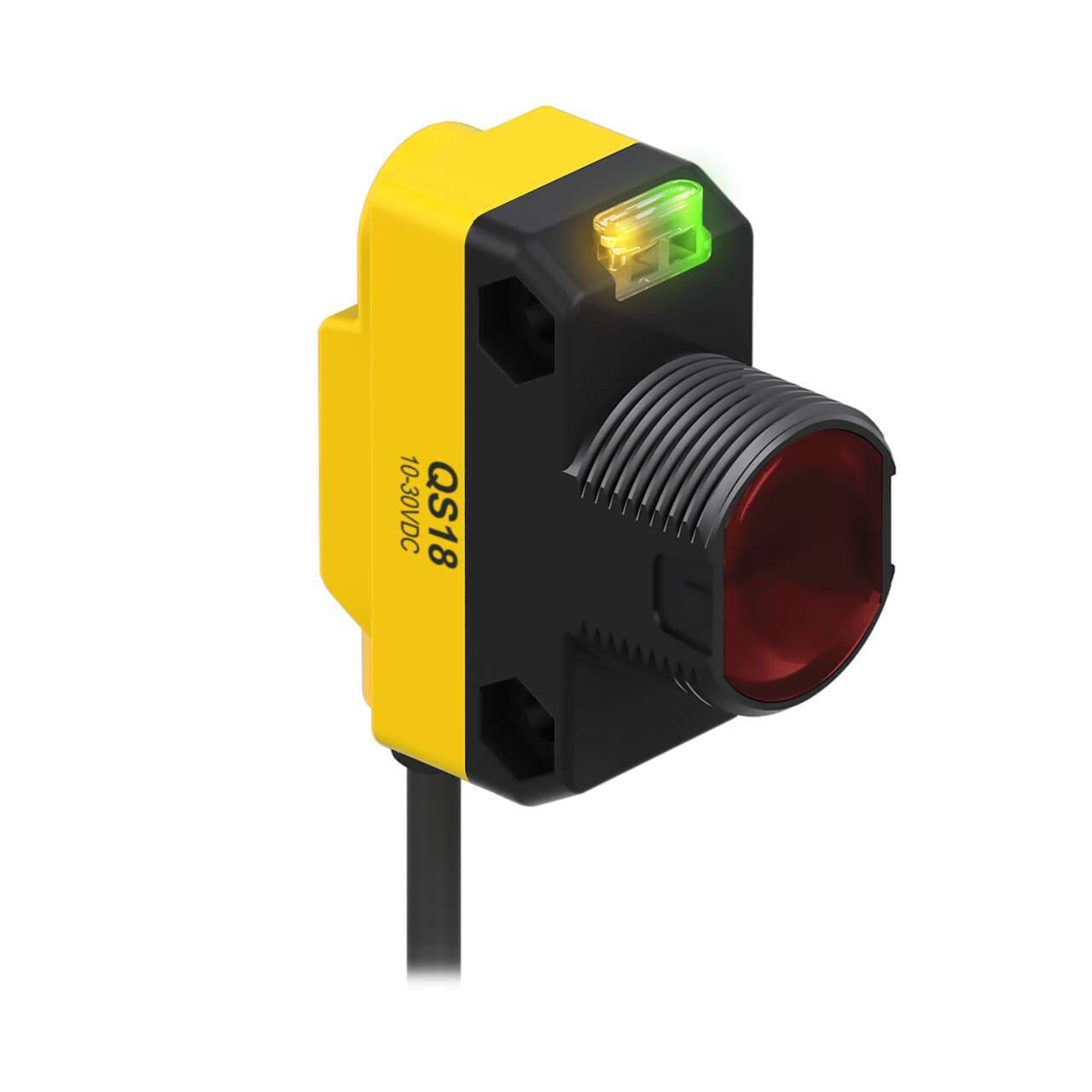

QS18VP6LAFQ5
