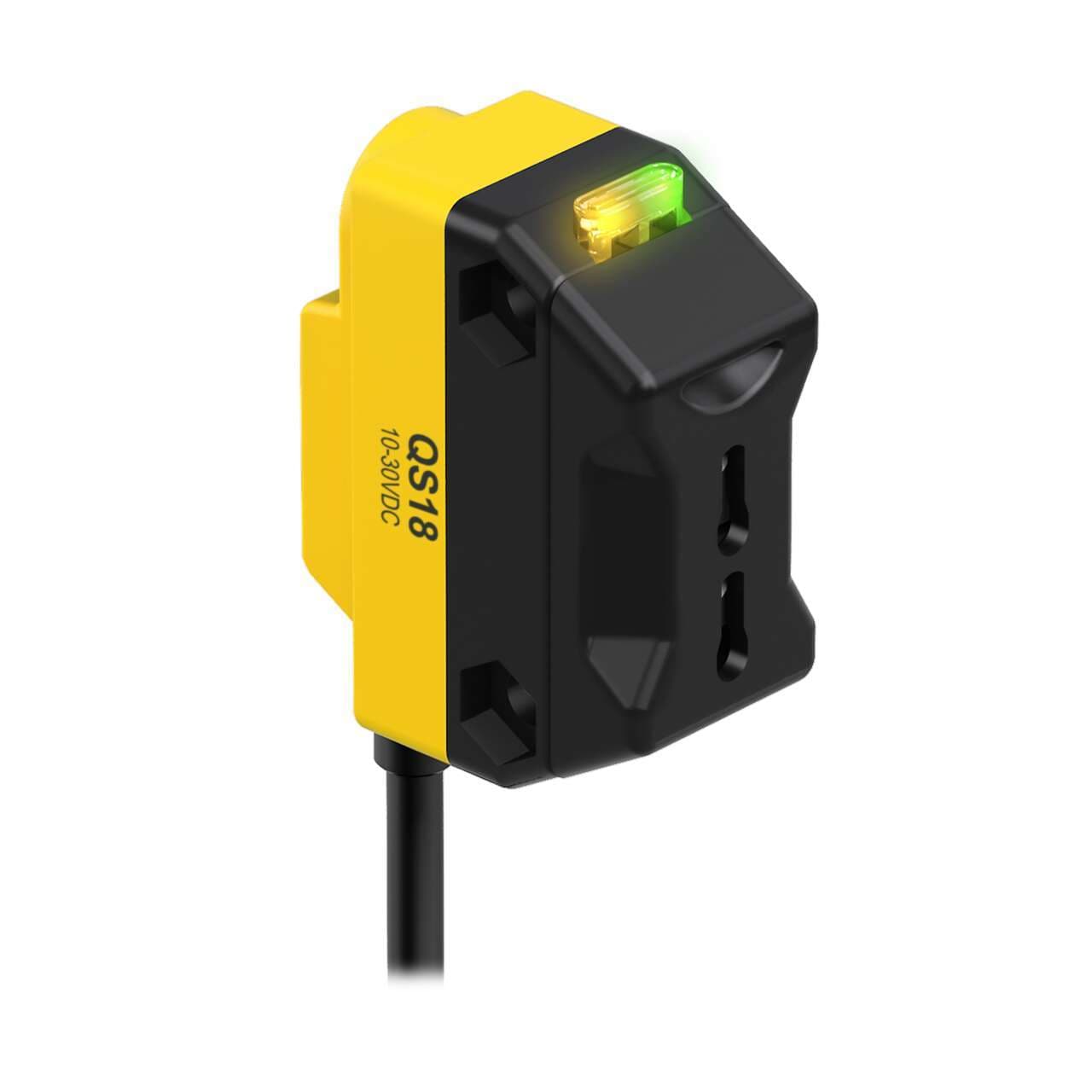

QS18VP6FPQ Banner Proximity Sensors
Part#:QS18VP6FPQ
Alt. Part#:66225
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM: Plastic Fiber Optic; Range: depends on the fiber; Input: 10-30 V dc; Output: PNP; 150 mm (6 in) M8 Pigtail QD
Product Details
- Weight 54.43104 g
- Country Of Origin MX
- Product series / family name WORLD-BEAM series
- Sub-range name QS18 series
- Operating mode Light-ON Dark-ON
- Main function Sensor (Photo-electric)
- Functions Photo-electric fiber optic sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Degree of protection IP67 NEMA 6
- Compliant with standard(s) cURus CE
- Primary brand Banner Engineering
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
- Ambient air temperature for operation -20...+70 °C
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Response time 0.6ms / 0.0006 s
- Order code / Manufacturer SKU 66225
- Shape Rectangular
- Digital outputs 1 x digital output (PNP transistor)
- Material thermoplastic housing Acrylic lns. Plastic fiber
- Input/Output Discrete
- Repeatability (µs) 150
- Feature: Encapsulated No
- Feature: Chemical Resistant No
- Quick Disconnect Type M8 (Pico)
- Max Op. Temp. (°C) 70
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- Adjustments Potentiometer
- Feature: Timing (Hold/Delay) No
- Housing Style Rectangular
- Special Feature: Water Detection No
- Feature: Quick Disconnect Yes
- Connection Pigtail QD
- IP Rating IP67
- Feature: Audible No
- Primary Housing Material ABS
- Delay at Power-up (ms) 100
- Lens Material Acrylic
- Outputs PNP
- Output response time (ms) 0.6
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
- Power DC
- Min Op. Temp. (°C) -20
- Number of Pins 4
- Feature: Hazardous Area No
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 18
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6FPQ on Powermatic Associates is $106.00. Order now.
About the product
Banner Engineering QS18VP6FPQ is a photo-electric fiber optic sensor within the QS18 series, designed for a wide range of sensing applications. This sensor operates within an ambient air temperature range of -20 to +70°C and features a potentiometer for adjustment, which varies by sensing mode and the type of fiber optics used. It comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector, ensuring easy installation. The QS18VP6FPQ is housed in a rectangular, thermoplastic body with an acrylic lens and plastic fiber, offering a degree of protection rated at IP67 NEMA 6, suitable for challenging environments. It supports a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. This sensor features a digital output (PNP transistor; complementary NO/NC) and offers both Light-ON and Dark-ON operating modes. The response time is notably quick at 0.6ms / 0.0006 s, facilitating rapid signal processing.
