Q3XTBLD-Q8 Banner Proximity Sensors

Q3XTBLD-Q8 on Powermatic Associates
Banner
  • Q3XTBLD-Q8
  • Q3XTBLD-Q8

Part#:Q3XTBLD-Q8

Alt. Part#:91638

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q3XT Series: Laser Diffuse; Range: 300 mm; Input: 10-30 V dc; Outputs: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD

Product Details

  • Weight
    108.86208 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q3XTBLD-Q8 on Powermatic Associates is $288.00. Order now.

About the product

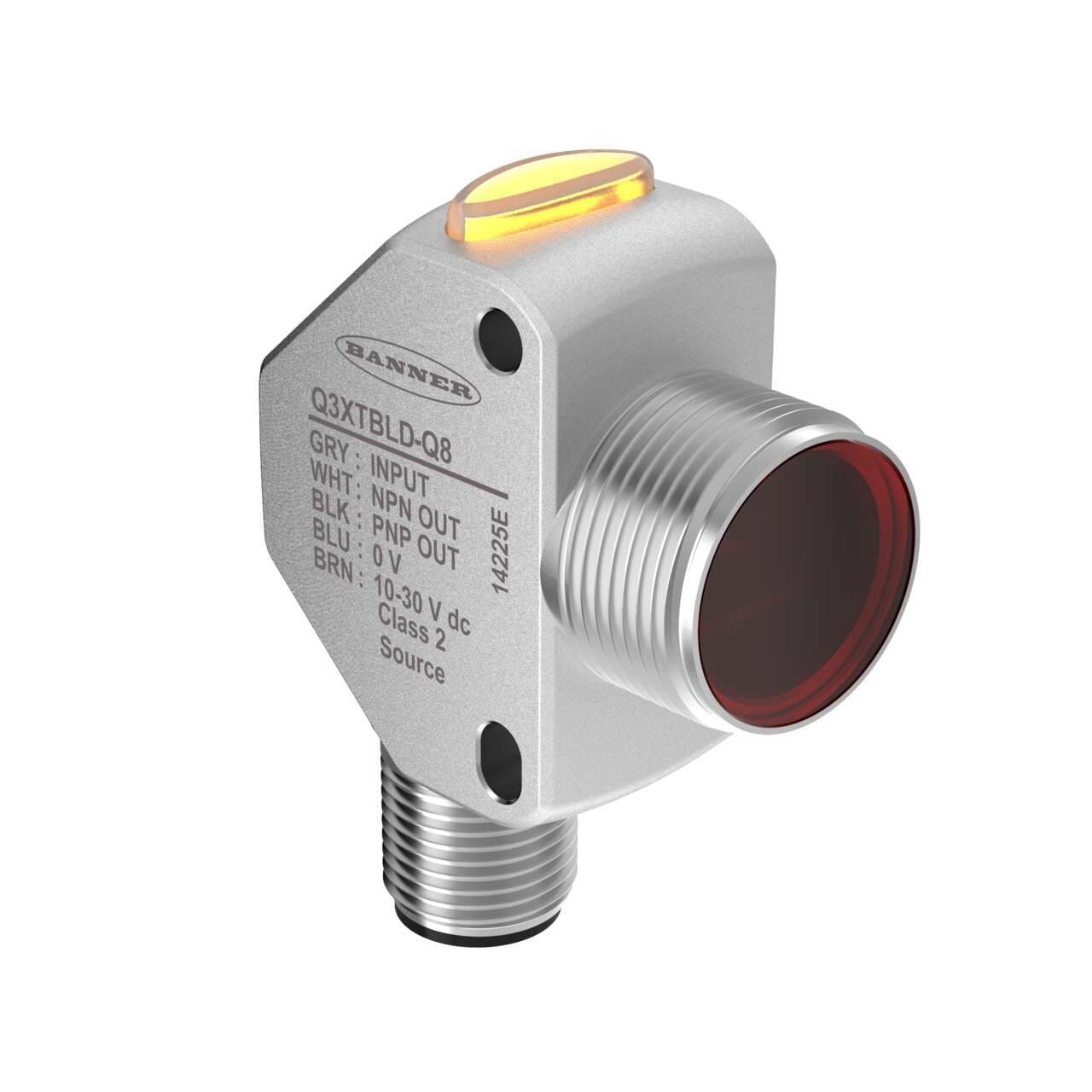

Banner Engineering Q3XTBLD-Q8 is a diffuse Class 2 laser contrast sensor designed for a variety of applications requiring distinction of colors or contrast levels. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50 °C. This sensor is equipped with a background suppression system and TEACH mode for enhanced functionality. It connects via a pre-equipped 5-pin Euro-style M12 connector, ensuring compatibility with standard interfaces. The Q3X series sensor boasts a high degree of protection with ratings of IP67, IP68, and IP69K, making it suitable for harsh environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The rectangular, nickel-plated housing with an acrylic lens is designed for durability, and it has a sensing distance of 0 to 300mm. The sensor emits a visible class 2 red laser with a wavelength of 655 nm and offers Light-ON and Dark-ON operating modes. It also includes 1 x digital output (PNP/NPN transistor) for versatile signaling options.

Q3XTBLD-Q8 Related Documents
