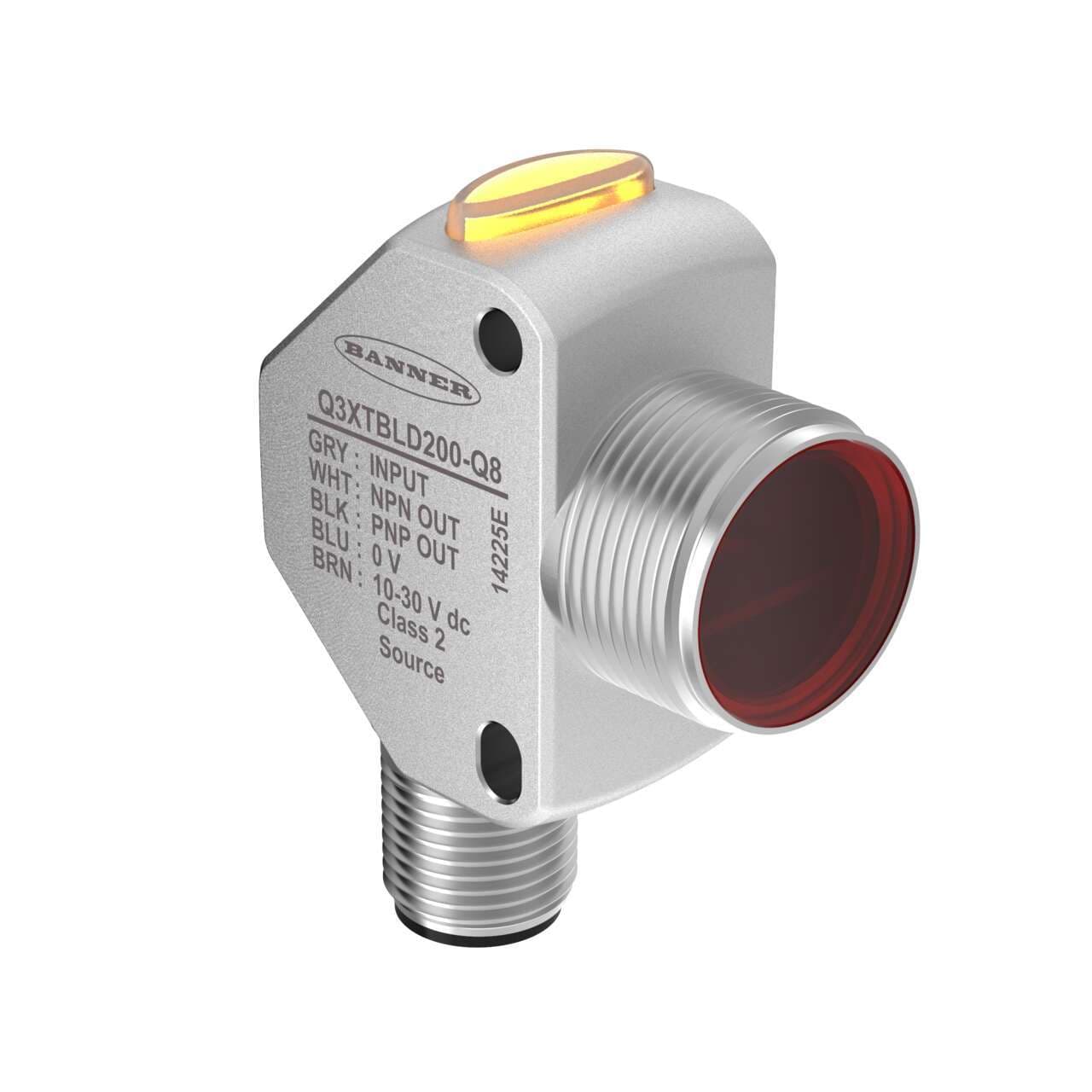

Q3XTBLD200-Q8 Banner Proximity Sensors

Q3XTBLD200-Q8 on Powermatic Associates
Banner
  • Q3XTBLD200-Q8
  • Q3XTBLD200-Q8

Part#:Q3XTBLD200-Q8

Alt. Part#:91635

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q3XT Series: Laser Diffuse with BGS; Range: 200 mm; Input: 10-30 V dc; Outputs: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD

Product Details

  • Weight
    108.86208 g
  • Country Of Origin
    CN
  • Product series / family name
    Q series
  • Sub-range name
    Q3X
  • Design
    background suppression system
  • Shape
    Rectangular
  • Ambient air temperature for operation
    -10...+50 °C
  • Functions
    Diffuse class 2 Laser contrast sensor TEACH mode
  • Wavelength
    655 nm
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67 IP68 IP69K
  • Order code / Manufacturer SKU
    91635
  • Main function
    Sensor (Contrast)
  • Light Color
    Visible class 2 red Laser
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Material
    nickel-plated housing Acrylic lns.
  • Equivalent to
    Q3XTBLD200Q8
  • Display
    LED 3 digits display
  • Sensing distance
    0...200mm
  • Thread size
    M18
  • Compliant with standard(s)
    cULus CE
  • Mounting mode
    Threaded mount
  • Digital outputs
    1 x digital output (PNP/NPN transistor)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q3XTBLD200-Q8 on Powermatic Associates is $302.00. Order now.

About the product

Banner Engineering Q3XTBLD200-Q8 is a diffuse Class 2 laser contrast sensor from the Q3X series, designed for precise sensing with a sensing distance of 0 to 200mm. It features a nickel-plated housing with an acrylic lens and operates within an ambient air temperature range of -10 to +50°C. This sensor is equipped with a background suppression system TEACH mode for enhanced functionality and is mounted using an M18 threaded mount. It offers a visible class 2 red laser light with a wavelength of 655 nm and supports both Light-ON and Dark-ON operating modes. The Q3XTBLD200-Q8 provides a digital output (PNP/NPN transistor) and is pre-equipped with a 5-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and boasts a high degree of protection with IP67, IP68, and IP69K ratings, ensuring durability in various environments.
