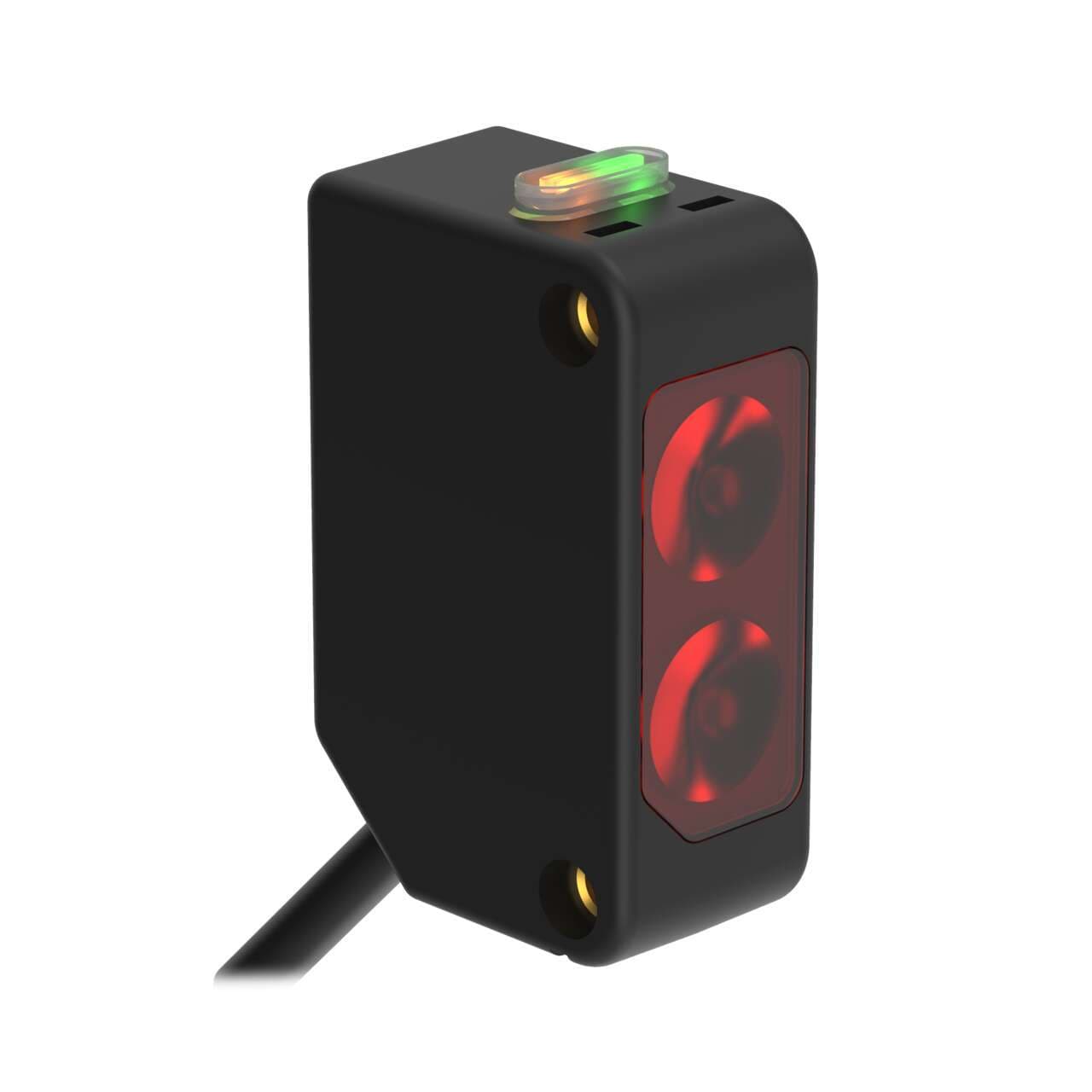

Q20PFF50Q Banner Proximity Sensors

Q20PFF50Q on Powermatic Associates
Banner

Part#:Q20PFF50Q

Manufacturer:Banner

Category:Proximity Sensors

Alt. Part#:78217

Product Lifecycle:Active

Get a quick Quote!

WORLD-BEAM Q20 Series: Fixed-Field; Range: 50 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) 4-pin M8 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the Q20PFF50Q Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    MX
  • IO Link
    No
  • DeviceNet
    No
  • Barrel Diameter (mm)
    N/A
  • Special Feature: Water Detection
    No
  • IP Rating
    IP67
  • Output response time (ms)
    0.8
  • Power Supply/Supply Voltage
    10-30 V dc
  • Small Visible Spot
    LED
  • Sensing Mode (General)
    Proximity
  • Feature: Hazardous Area
    No
  • Lens Material
    Acrylic
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Number of Pins
    4
  • Adjustments
    N/A
  • Delay at Power-up (ms)
    100
  • Sensing Beam Wavelength
    655
  • Special Feature: Remote Teach
    No
  • EPLAN Cabinet Installable
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Indicator
    LEDs
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Encapsulated
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • NEMA Rating
    NEMA 6
  • Repeatability (µs)
    155
  • Special Feature: Intrinsically Safe
    No
  • Min Op. Temp. (°C)
    -20
  • Operation
    Light/Dark Operate
  • Max Op. Temp. (°C)
    60
  • Quick Disconnect Type
    M8 (Pico)
  • Connection
    Pigtail QD
  • Outputs
    PNP
  • Max Sensing Distance (mm)
    50
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular
  • Cable Length (m)
    0.15
  • Power
    DC
  • Sensing Beam
    Visible Red LED
  • Primary brand
    Banner Engineering
  • Connection type
    Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
  • Main function
    Sensor (Photo-electric)
  • Shape
    Rectangular
  • Response time
    0.8ms / 0.0008 s
  • Sensing distance
    50mm
  • Wavelength
    655 nm
  • Operating mode
    Light-ON Dark-ON
  • Product series / family name
    WORLD-BEAM series
  • Material
    thermoplastic housing
  • Sub-range name
    Q20 series
  • Degree of protection
    IP67 NEMA 6
  • Design
    background suppression system
  • Digital outputs
    1 x digital output (PNP transistor)
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Order code / Manufacturer SKU
    78217
  • Functions
    Fixed-field photo-electric sensor green LED (power ON) amber LED (black (LO) wire conducting)
  • Compliant with standard(s)
    cURus CE
  • Light Color
    Visible red
  • Ambient air temperature for operation
    -20...+60 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q20PFF50Q Description

Banner Engineering Q20PFF50Q is a fixed-field photo-electric sensor designed with a background suppression system. It operates within an ambient air temperature range of -20 to +60 °C and is housed in a thermoplastic material, ensuring durability in various environments. This sensor is part of the Q20 series and features a pre-wired 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector for easy installation. It offers a sensing distance of 50mm with a visible red light source at a wavelength of 655 nm. The Q20PFF50Q operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and includes a single digital output (PNP transistor) with a rapid response time of 0.8ms / 0.0008 s. Its rectangular shape and IP67 NEMA 6 degree of protection make it suitable for a wide range of applications, offering both Light-ON and Dark-ON operating modes.

Related documents Q20PFF50Q Specs

Q20PFF50Q 127816.pdf
