Q120RA-KR-AF Banner Electronic Components

Q120RA-KR-AF on Powermatic Associates
Banner

Part#:Q120RA-KR-AF

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

Banner Engineering Q120RA-KR-AF is a narrow-beam adjustable-field radar sensor designed for precise detection tasks. It operates within an ambient air temperature range of -40 to +65°C and is built on a time-of-flight system that is approved by Korea Telecom. This sensor is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. As part of the Q120RA-AF series, it features an IP67 degree of protection, making it suitable for harsh environmental conditions. The sensor requires a supply voltage of 12Vdc to 24Vdc and is housed in a durable ABS / Polycarbonate (PC) material. It operates at a frequency range of 24.050GHz to 24.250GHz within the ISM band, ensuring reliable transmission. The Q120RA-KR-AF offers a sensing distance of 2 to 12 meters and includes operating modes of NO (Normally Open) and NC (Normally Closed) for versatile application. Additionally, it is equipped with 1 x digital output (PNP/NPN transistor) and includes protection functions against reverse polarity and short-circuit, enhancing its operational safety and longevity.

Product Details

  • Cert: Korea
    Yes
  • Wireless
    No
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • RS-422
    No
  • SSI
    No
  • RS-485
    No
  • RS-232
    No
  • PROFINET
    No
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Feature: Timing (Hold/Delay)
    No
  • Common Ethernet Protocol
    No
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • Minimum Response Time (ms)
    15
  • Min Operating Temperature (°C)
    -40
  • Max Operating Temperature (°C)
    65
  • IP Rating
    IP67
  • Output Protection
    Protected against short circuit
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Number of Pins
    5
  • Max Discrete (Switched) Output (mA)
    150
  • Adjustments
    Dip Switch
  • Delay at Power-up (ms)
    2000
  • Power Supply
    12-24 V dc
  • Quick Disconnect Type
    No QD
  • Minimum Sensing Distance (mm)
    2000
  • Max Sensing Distance (mm)
    12000
  • Connection
    Flying Leads
  • Primary Housing Material
    ABS/Polycarbonate
  • Indicator
    LED(s)
  • Radar Beam Pattern (H x V °)
    24 x 50
  • Input/Output
    Discrete
  • Device Type
    Sensor
  • Power
    DC
  • Sensing Mode (Detailed)
    Time of Flight
  • Sensing Beam
    Radar
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Rectangular
  • PC Configurable
    No
  • Operating Frequency
    24 GHz
  • Cable Length (m)
    2
  • Max Measurement Range
    >5 m - <=20 m
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    12Vdc-24Vdc
  • Product series / family name
    R-GAGE series
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Emission frequency
    24.050GHz...24.250GHz (ISM band)
  • Functions
    Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Sensing distance
    2...12m
  • Degree of protection
    IP67
  • Ambient air temperature for operation
    -40...+65 °C
  • Sub-range name
    Q120RA-AF
  • Main function
    Sensor (Radar)
  • Design
    time-of-flight system Korea Telecom-approved
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Equivalent to
    Q120RAKRAF
  • Shape
    Rectangular
  • Material
    ABS / polycarbonate housing
  • Protection functions
    Reverse polarity Short-circuit
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Compliant with standard(s)
    cULus CE
  • Order code / Manufacturer SKU
    93886

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Q120RA-KR-AF Related Documents

R-GAGE Q120RA-AF Sensor-1630950404503.pdf

Similar products from: Banner Electronic Components

T18SP6R on Powermatic Associates

T18SP6R

Banner

Banner Engineering T18SP6R is a photo-electric sensor designed for through-beam system applications, part of the T18 series. This sensor functions as a receiver alone, housed in a thermoplastic with a polycarbonate lens. It features a pre-wired connection with a 6.5ft / 2m cable ending in bare end flying leads. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed for threaded mount installation and can operate within an ambient air temperature range of -40 to +70°C. The T18SP6R offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environments. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (PNP transistor). The sensing distance is up to 20m, utilizing infrared light with a wavelength of 950 nm. It has a quick response time of 3ms / 0.003 s and supports both Light-ON and Dark-ON operating modes.

4 in stock
FIC-M12M4 on Powermatic Associates

FIC-M12M4

Banner

Banner Engineering FIC-M12M4 is a field-wireable connector designed for automation applications, featuring a 4-pin Euro-style M12 male connection type.

2 in stock
WLAW360X180DQ on Powermatic Associates

WLAW360X180DQ

Banner

Banner Engineering WLAW360X180DQ is an industrial LED area light designed with a diffused window for 1-color Cool White (W) LED illumination. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this task light are L180mm x W360mm, featuring an acrylic diffused window and PBT housing. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The rectangular-shaped light offers a degree of protection rated at IP67 and IP69K, suitable for surface or wall mounting. It can operate in ambient air temperatures ranging from -20°C to +50°C and includes 1 x digital input (12Vdc / 24Vdc) for color control.

4 in stock
T18SN6R W/30 on Powermatic Associates

T18SN6R W/30

Banner

Banner Engineering T18SN6R W/30 is a photo-electric sensor designed as part of the T18 series, featuring a through-beam system in an opposed mode configuration. This sensor functions as a receiver alone, housed in a thermoplastic with a polycarbonate lens. It comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed for threaded mount installation and can operate within an ambient air temperature range of -40 to +70°C. This model boasts an IP67, IP69K, and NEMA 6P degree of protection, ensuring durability in various environmental conditions. The T18SN6R W/30 has a cylindrical M18 threaded/barrel shape, includes 1 x digital output (NPN transistor), and offers a sensing distance of up to 20m. It utilizes infrared light with a wavelength of 950 nm and has a response time of 3ms. The operating modes available are Light-ON and Dark-ON, catering to diverse application needs.

1 in stock

Manufacturer warranty

Q120RA-KR-AF Banner

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare Q120RA-KR-AF with other Electronic Components products

Cert: Korea

Wireless

Profibus

1-wire Serial Interface

RS-422

SSI

RS-485

RS-232

PROFINET

Feature: Chemical Resista...

Selected product

Q120RA-KR-AF
Backordered
Q120RA-KR-AF
Banner

Banner Engineering Q120RA-KR-AF is a narrow-beam adjustable-field radar sensor designed for precise ...

Cert: KoreaYes

WirelessNo

ProfibusNo

1-wire Serial InterfaceNo

RS-422No

SSINo

RS-485No

RS-232No

PROFINETNo

Feature: Chemical ResistantNo

T18SP6R
4 in stock
T18SP6R
Banner

Banner Engineering T18SP6R is a photo-electric sensor designed for through-beam system applications,...

Cert: Korea-

Wireless-

Profibus-

1-wire Serial Interface-

RS-422-

SSI-

RS-485-

RS-232-

PROFINET-

Feature: Chemical Resistant-

FSA1
1 in stock

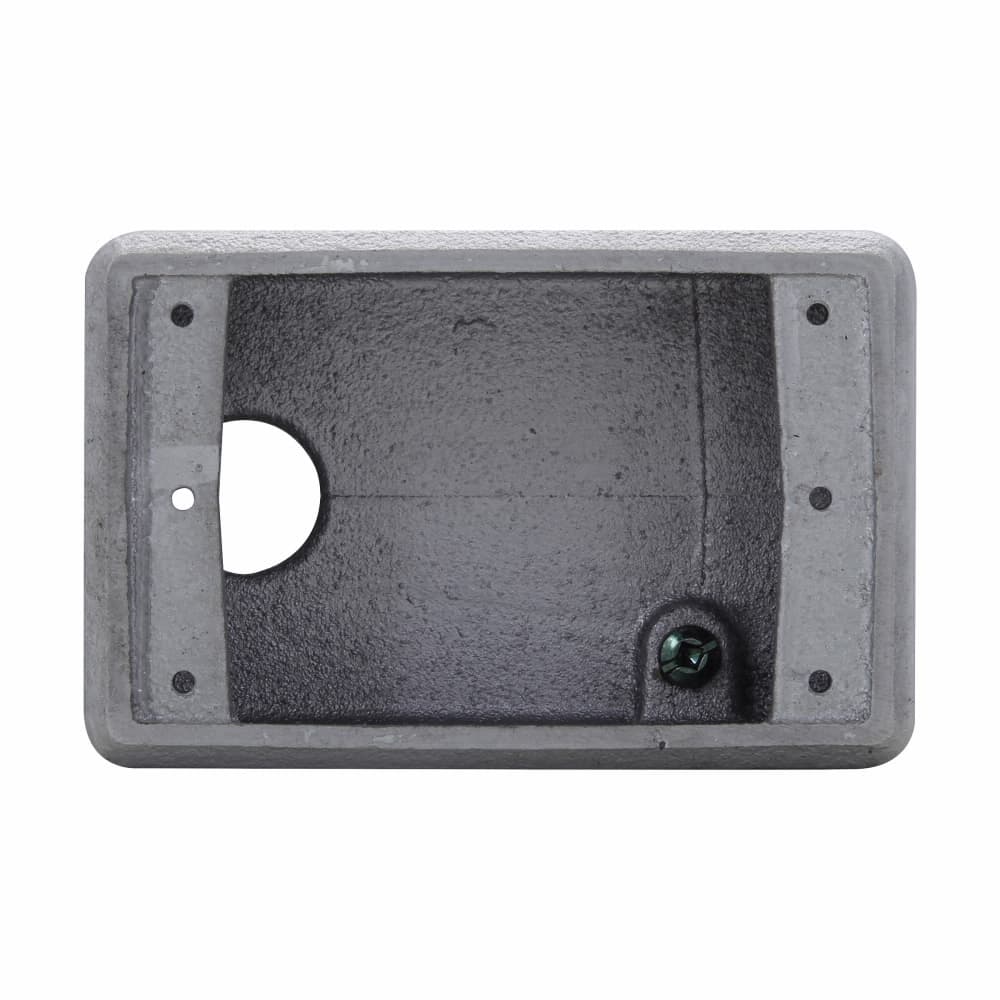

FSA1
