Q120RA-US-AFQ Banner Optical Sensors

Q120RA-US-AFQ on Powermatic Associates
Banner
  • Q120RA-US-AFQ
  • Q120RA-US-AFQ

Part#:Q120RA-US-AFQ

Alt. Part#:54281

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

R-GAGE Series Radar Sensor; Bipolar Outputs; Range: 3.5-12 m Single Zone; Response Speed: 40 ms; 5-pin M12 Integral QD

Product Details

  • Weight
    725.7472 g
  • Country Of Origin
    US
  • Cert: Brazil
    Yes
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • SSI
    No
  • RS-485
    No
  • Cert: US
    Yes
  • IO Link
    No
  • Common Ethernet Protocol
    No
  • Wireless
    No
  • RS-422
    No
  • RS-232
    No
  • PROFINET
    No
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Chemical Resistant
    No
  • Minimum Response Time (ms)
    15
  • Min Operating Temperature (°C)
    -40
  • Max Operating Temperature (°C)
    65
  • IP Rating
    IP67
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Number of Pins
    5
  • Output Protection
    Protected against short circuit
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Max Discrete (Switched) Output (mA)
    150
  • Adjustments
    Dip Switch
  • Power Supply
    12-30 V dc
  • Minimum Sensing Distance (mm)
    3500
  • Delay at Power-up (ms)
    2000
  • Max Sensing Distance (mm)
    12000
  • Radar Beam Pattern (H x V °)
    24 x 50
  • Connection
    Integral QD
  • Quick Disconnect Type
    M12 (Euro)
  • Indicator
    LED(s)
  • Input/Output
    Discrete
  • Primary Housing Material
    ABS/Polycarbonate
  • Sensing Mode (Detailed)
    Time of Flight
  • Housing Style
    Rectangular
  • Device Type
    Sensor
  • Sensing Mode (General)
    Proximity
  • PC Configurable
    No
  • Operating Frequency
    24 GHz
  • Power
    DC
  • Max Measurement Range
    >5 m - <=20 m
  • Sensing Beam
    Radar

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q120RA-US-AFQ on Powermatic Associates is $1,905.00. Order now.

About the product

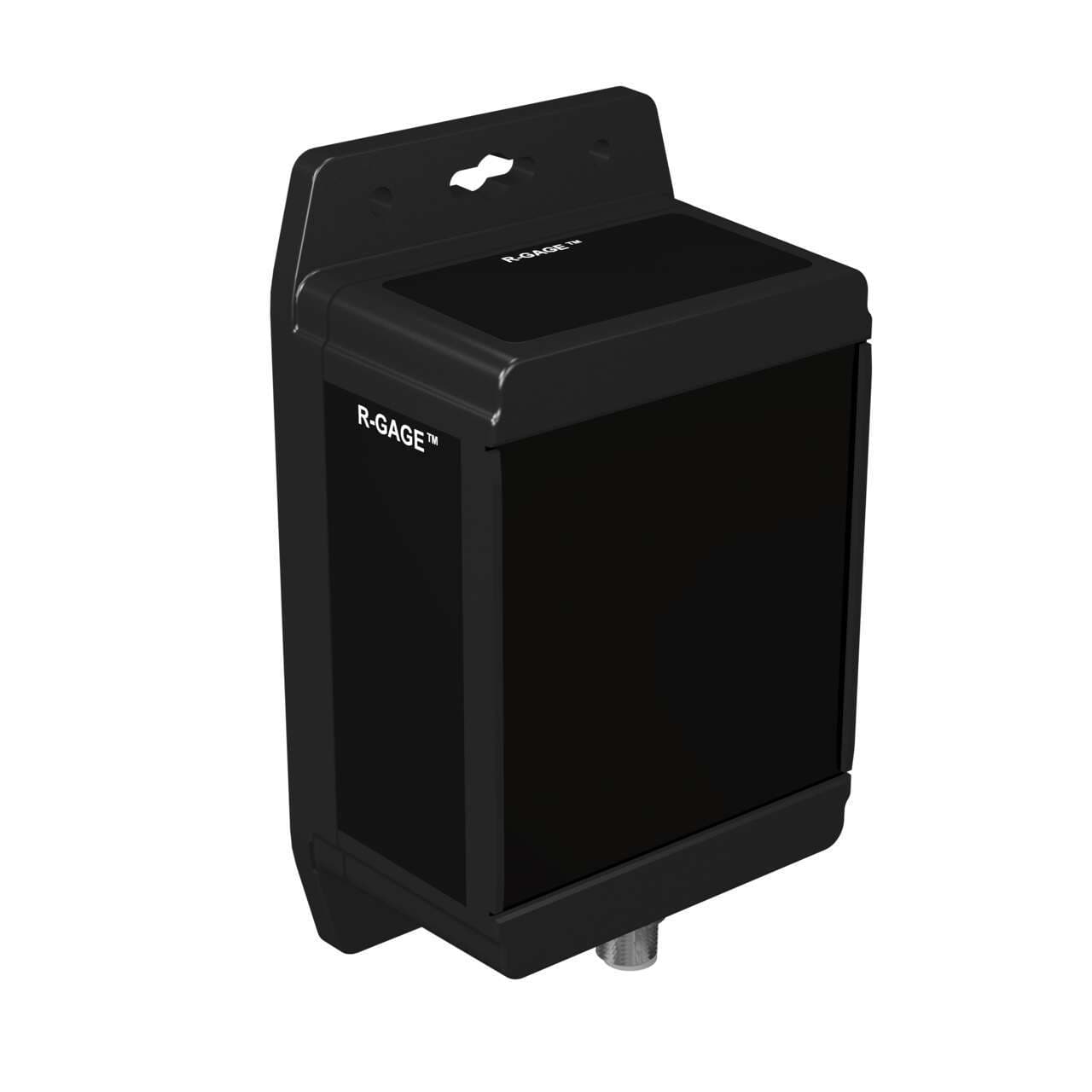

Banner Engineering Q120RA-US-AFQ is a narrow-beam adjustable-field radar sensor designed with a time-of-flight system and is US / Brazil Telecom-approved. It operates within an ambient air temperature range of -40 to +65 °C and is housed in an ABS / Polycarbonate (PC) material, ensuring durability. This sensor is pre-equipped with a 5-pin Euro-style M12 connector for easy connection and falls under the Q120RA-AF series. It offers a degree of protection rated at IP67, making it suitable for challenging environments. The supply voltage required for operation is 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. Its rectangular shape encompasses a transmission frequency within the 24.075GHz to 24.175GHz range in the ISM band. The sensing distance of this device ranges from 3.5m to 12m. It features an operating mode that can be set to either NO (Normally Open) or NC (Normally Closed) and includes 1 x digital output (PNP/NPN transistor) for signaling. Additionally, it is equipped with protection functions against reverse polarity and short-circuit incidents.

Q120RA-US-AFQ Related Documents

169605.pdf

Similar products from: Banner Optical Sensors

Q10AP6D on Powermatic Associates

Q10AP6D

Banner

Q10 Series: Diffuse; Range: 0.5 m; Input: 10-30 V dc; Output: Light Operate - PNP; 2 m (6.5 ft) Cable

1 in stock
Q10AN6D on Powermatic Associates

Q10AN6D

Banner

Q10 Series: Diffuse; Range: 0.5 m; Input: 10-30 V dc; Output: Light Operate - NPN; 2 m (6.5 ft) Cable

2 in stock
SB12E1-10747 on Powermatic Associates

SB12E1-10747

Banner

DISCONTINUED, USE STD SB12E1 FOR GUNNEBO

11 in stock

This item can ship within 0 day!

Manufacturer warranty

Q120RA-US-AFQ Banner

$1,905.00

Your price can be lower.
Log in or Create account to check your discount

Stock:

0

Select Qty:

$1,905.00

$1,905.00 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare Q120RA-US-AFQ with other Optical Sensors products

Weight

Country Of Origin

Cert: Brazil

Profibus

1-wire Serial Interface

SSI

RS-485

Cert: US

IO Link

Common Ethernet Protocol

Selected product

Q120RA-US-AFQ
Backordered
Q120RA-US-AFQ
Banner

R-GAGE Series Radar Sensor; Bipolar Outputs; Range: 3.5-12 m Single Zone; Response Speed: 40 ms; 5-p...

Weight725.7472 g

Country Of OriginUS

Cert: BrazilYes

ProfibusNo

1-wire Serial InterfaceNo

SSINo

RS-485No

Cert: USYes

IO LinkNo

Common Ethernet ProtocolNo

Q10AP6D
1 in stock
Q10AP6D
Banner

Q10 Series: Diffuse; Range: 0.5 m; Input: 10-30 V dc; Output: Light Operate - PNP; 2 m (6.5 ft) Cabl...

Weight63.50288 g

Country Of OriginMX

Cert: Brazil-

Profibus-

1-wire Serial Interface-

SSI-

RS-485-

Cert: US-

IO Link-

Common Ethernet Protocol-

Q10AN6D
2 in stock
Q10AN6D
Banner

Q10 Series: Diffuse; Range: 0.5 m; Input: 10-30 V dc; Output: Light Operate - NPN; 2 m (6.5 ft) Cabl...

Weight63.50288 g

Country Of OriginMX

Cert: Brazil-

Profibus-

1-wire Serial Interface-

SSI-

RS-485-

Cert: US-

IO Link-

Common Ethernet Protocol-

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...

Recently viewed products

MDI4MRQ34B2-EQ on Powermatic Associates

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

Relevant products

Q120RA-KR-AF on Powermatic Associates

Q120RA-KR-AF

Verified stock: 0

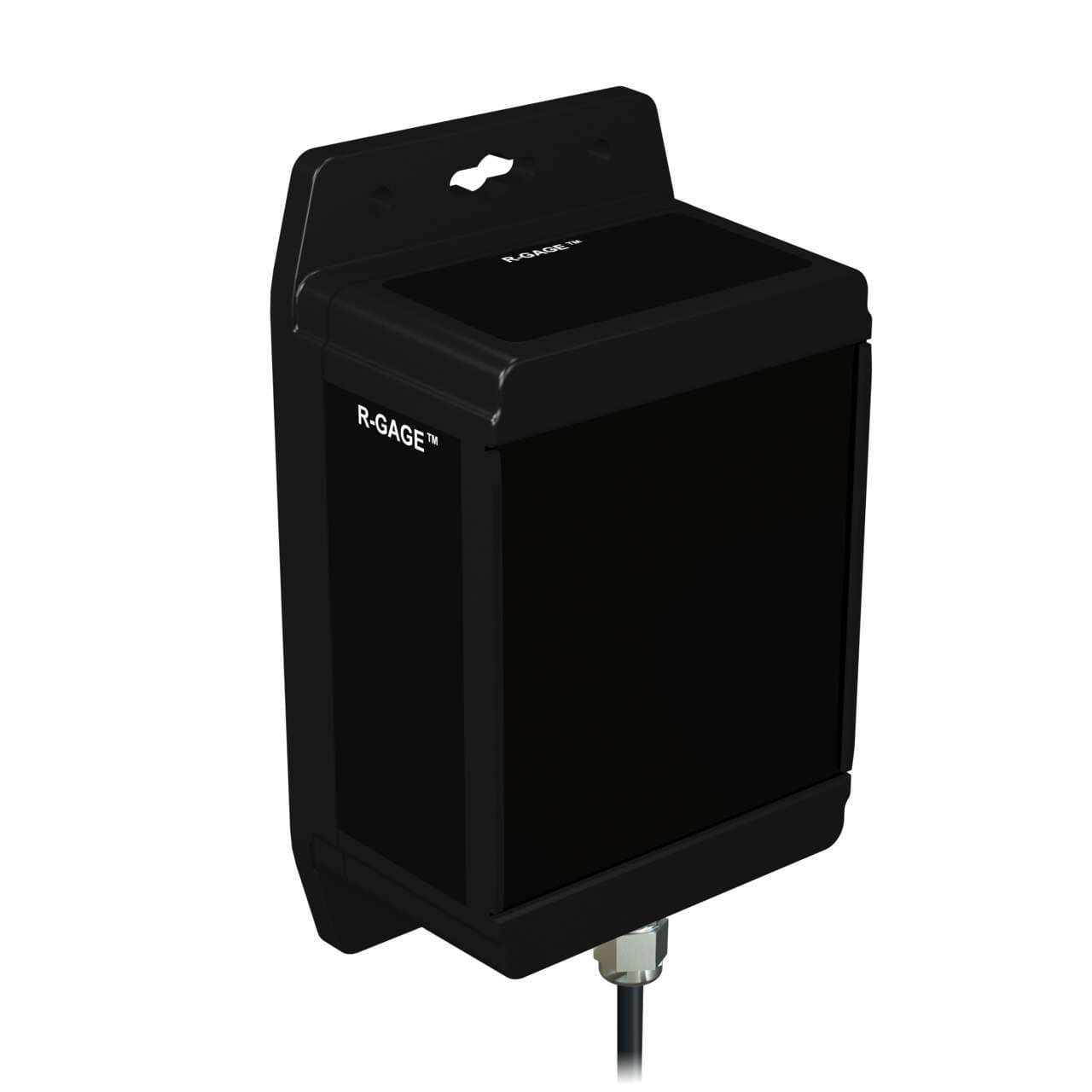

Banner Engineering Q120RA-KR-AF is a narrow-beam adjustable-field radar sensor designed for precise detection tasks. It operates within an ambient air temperature range of -40 to +65°C and is built on a time-of-flight system that is approved by Korea Telecom. This sensor is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. As part of the Q120RA-AF series, it features an IP67 degree of protection, making it suitable for harsh environmental conditions. The sensor requires a supply voltage of 12Vdc to 24Vdc and is housed in a durable ABS / Polycarbonate (PC) material. It operates at a frequency range of 24.050GHz to 24.250GHz within the ISM band, ensuring reliable transmission. The Q120RA-KR-AF offers a sensing distance of 2 to 12 meters and includes operating modes of NO (Normally Open) and NC (Normally Closed) for versatile application. Additionally, it is equipped with 1 x digital output (PNP/NPN transistor) and includes protection functions against reverse polarity and short-circuit, enhancing its operational safety and longevity.
