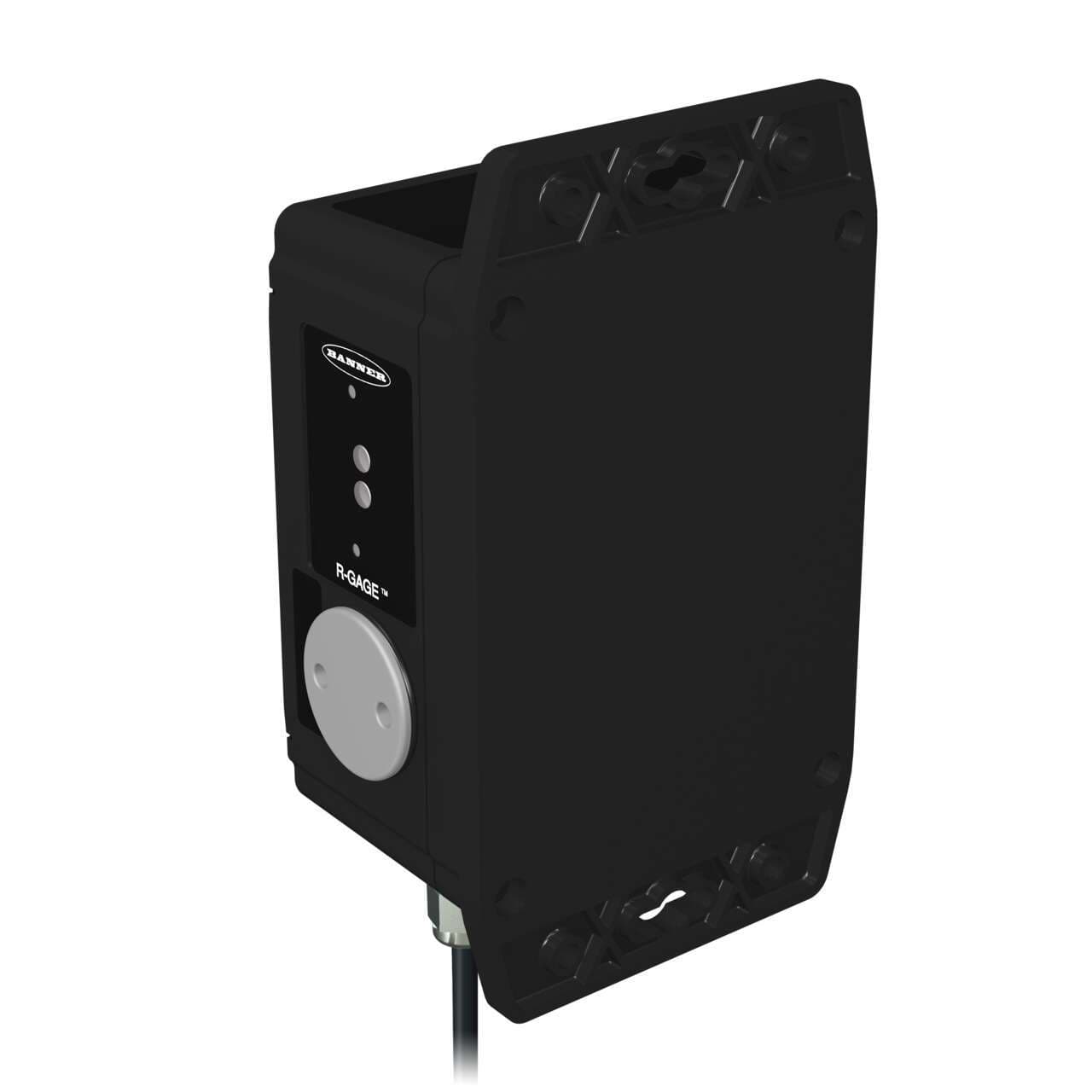

Q120RA-US-AF2 Banner Optical Sensors

Q120RA-US-AF2 on Powermatic Associates
Banner
  • Q120RA-US-AF2
  • Q120RA-US-AF2

Part#:Q120RA-US-AF2

Alt. Part#:25372

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

R-GAGE Series Radar Sensor; Bipolar Outputs; Range: 3.5-40 m; Response Speed: 40 ms; 2 m Cable

Product Details

  • Weight
    839.1452 g
  • Country Of Origin
    US
  • Cert: Brazil
    Yes
  • RS-232
    No
  • Cert: US
    Yes
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • SSI
    No
  • RS-485
    No
  • RS-422
    No
  • Wireless
    No
  • PROFINET
    No
  • IO Link
    No
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Minimum Response Time (ms)
    15
  • Feature: Timing (Hold/Delay)
    No
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • Min Operating Temperature (°C)
    -40
  • Max Operating Temperature (°C)
    65
  • Number of Pins
    5
  • IP Rating
    IP67
  • Output Protection
    Protected against short circuit
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Max Discrete (Switched) Output (mA)
    150
  • Adjustments
    Dip Switch
  • Delay at Power-up (ms)
    2000
  • Power Supply
    12-30 V dc
  • Max Sensing Distance (mm)
    40000
  • Input/Output
    Discrete
  • Indicator
    LED(s)
  • Minimum Sensing Distance (mm)
    3500
  • Connection
    Flying Leads
  • Quick Disconnect Type
    No QD
  • Radar Beam Pattern (H x V °)
    24 x 50
  • Device Type
    Sensor
  • Primary Housing Material
    ABS/Polycarbonate
  • Housing Style
    Rectangular
  • Sensing Mode (Detailed)
    Time of Flight
  • Sensing Mode (General)
    Proximity
  • PC Configurable
    No
  • Cable Length (m)
    2
  • Operating Frequency
    24 GHz
  • Power
    DC
  • Max Measurement Range
    >20 m - <=50 m
  • Sensing Beam
    Radar
  • Digital outputs
    2 x digital outputs (PNP/NPN transistors)
  • Primary brand
    Banner Engineering
  • Sensing distance
    3.5...40m
  • Product series / family name
    R-GAGE series
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Shape
    Rectangular
  • Protection functions
    Reverse polarity Short-circuit
  • Compliant with standard(s)
    cULus CE
  • Sub-range name
    Q120RA-AF
  • Design
    time-of-flight system US / Brazil Telecom-approved
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Ambient air temperature for operation
    -40...+65 °C
  • Equivalent to
    Q120RAUSAF2
  • Main function
    Sensor (Radar)
  • Functions
    Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Material
    ABS / polycarbonate housing
  • Connection type
    Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
  • Degree of protection
    IP67
  • Order code / Manufacturer SKU
    25372
  • Emission frequency
    24.075GHz...24.175GHz (ISM band)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q120RA-US-AF2 on Powermatic Associates is $2,977.00. Order now.

About the product

Banner Engineering Q120RA-US-AF2 is a narrow-beam adjustable-field radar sensor designed with a time-of-flight system and is US / Brazil Telecom-approved. It operates within an ambient air temperature range of -40 to +65°C and is equipped with a pre-wired 6.5ft / 2m cable terminated with bare end flying leads. As part of the Q120RA-AF series, this sensor features an IP67 degree of protection, making it suitable for various environmental conditions. It requires a supply voltage of 12Vdc-30Vdc, with 24Vdc being nominal. The sensor's shape is rectangular, and it utilizes a 24.075GHz to 24.175GHz (ISM band) transmission frequency. Constructed with an ABS / Polycarbonate (PC) housing, it ensures durability. The sensing distance ranges from 3.5m to 40m, and it offers operating modes of NO (Normally Open) and NC (Normally Closed). Additionally, it includes 2 x digital outputs (PNP/NPN transistor) and is equipped with protection functions against reverse polarity and short-circuit issues.
