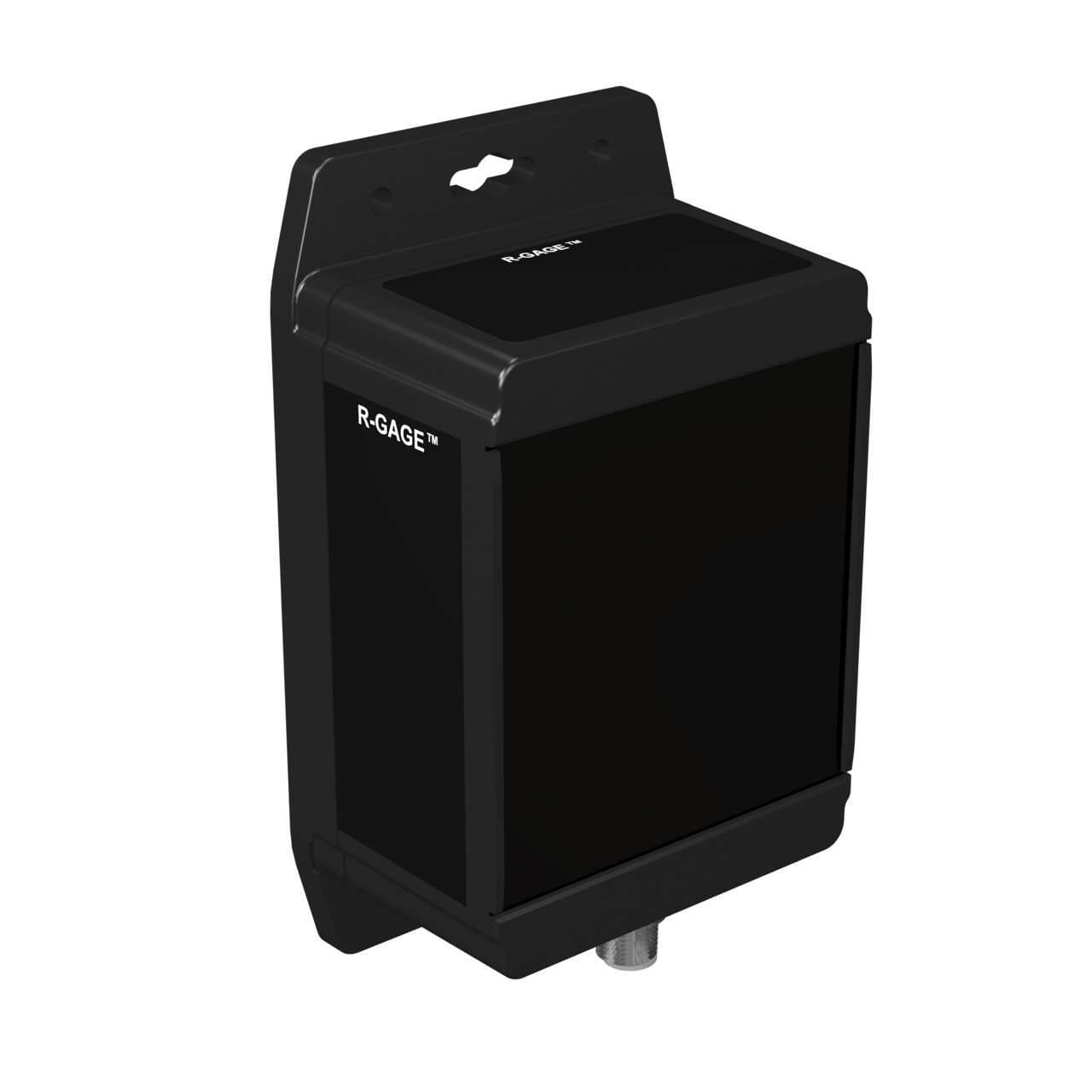

Q120RA-EU-AF2WQ Banner Optical Sensors

Q120RA-EU-AF2WQ on Powermatic Associates
Banner
  • Q120RA-EU-AF2WQ
  • Q120RA-EU-AF2WQ

Part#:Q120RA-EU-AF2WQ

Alt. Part#:96355

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

R-GAGE Series Radar Sensor; Bipolar Outputs; Range: 2-26 m; Response Speed: 40 ms; 5-pin M12 Integral QD

Product Details

  • Weight
    816.4656 g
  • Country Of Origin
    US
  • Cert: Japan
    Yes
  • Cert: European
    Yes
  • Cert: China
    Yes
  • Cert: Australia/New Zealand
    Yes
  • Profibus
    No
  • Wireless
    No
  • SSI
    No
  • RS-485
    No
  • RS-422
    No
  • 1-wire Serial Interface
    No
  • RS-232
    No
  • PROFINET
    No
  • IO Link
    No
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Feature: Timing (Hold/Delay)
    No
  • Min Operating Temperature (°C)
    -40
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • Minimum Response Time (ms)
    15
  • Max Operating Temperature (°C)
    65
  • IP Rating
    IP67
  • Output Protection
    Protected against short circuit
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Max Discrete (Switched) Output (mA)
    150
  • Number of Pins
    5
  • Adjustments
    Dip Switch
  • Delay at Power-up (ms)
    2000
  • Max Sensing Distance (mm)
    26000
  • Minimum Sensing Distance (mm)
    2000
  • Connection
    Integral QD
  • Power Supply
    12-30 V dc
  • Radar Beam Pattern (H x V °)
    24 x 50
  • Quick Disconnect Type
    M12 (Euro)
  • Indicator
    LED(s)
  • Input/Output
    Discrete
  • Primary Housing Material
    ABS/Polycarbonate
  • Sensing Mode (Detailed)
    Time of Flight
  • Housing Style
    Rectangular
  • Power
    DC
  • Device Type
    Sensor
  • Max Measurement Range
    >20 m - <=50 m
  • Sensing Beam
    Radar
  • PC Configurable
    No
  • Sensing Mode (General)
    Proximity
  • Operating Frequency
    24 GHz
  • Sub-range name
    Q120RA-AF
  • Design
    time-of-flight system Europe / UK / Australia / New Zealand / China / Japan Telecom-approved
  • Degree of protection
    IP67
  • Equivalent to
    Q120RAEUAF2WQ
  • Product series / family name
    R-GAGE series
  • Shape
    Rectangular
  • Digital outputs
    2 x digital outputs (PNP/NPN transistors)
  • Protection functions
    Reverse polarity Short-circuit
  • Main function
    Sensor (Radar)
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Compliant with standard(s)
    cULus CE
  • Order code / Manufacturer SKU
    96355
  • Functions
    Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Sensing distance
    2...26m
  • Material
    ABS / polycarbonate housing
  • Emission frequency
    24.050GHz...24.250GHz (ISM band)
  • Primary brand
    Banner Engineering
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Ambient air temperature for operation
    -40...+65 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q120RA-EU-AF2WQ on Powermatic Associates is $2,239.00. Order now.

About the product

Banner Engineering Q120RA-EU-AF2WQ is a narrow-beam adjustable-field radar sensor designed for a variety of applications. It operates within an ambient air temperature range of -40 to +65°C and features a time-of-flight system that is approved for use in Europe, the UK, Australia, New Zealand, China, and Japan. This sensor is equipped with a 5-pin Euro-style M12 connector for easy installation. Part of the Q120RA-AF series, it offers an IP67 degree of protection, making it suitable for harsh environments. The sensor operates on a supply voltage of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. Its rectangular shape is constructed from ABS/Polycarbonate (PC) housing for durability. The Q120RA-EU-AF2WQ operates on a 24.050GHz to 24.250GHz (ISM band) transmission frequency, providing a sensing distance of 2 to 26 meters. It features two operating modes, NO (Normally Open) and NC (Normally Closed), and includes two digital outputs (PNP/NPN transistor) for versatile connectivity. Protection functions include reverse polarity and short-circuit protection, ensuring the sensor's longevity and reliability in various applications.
