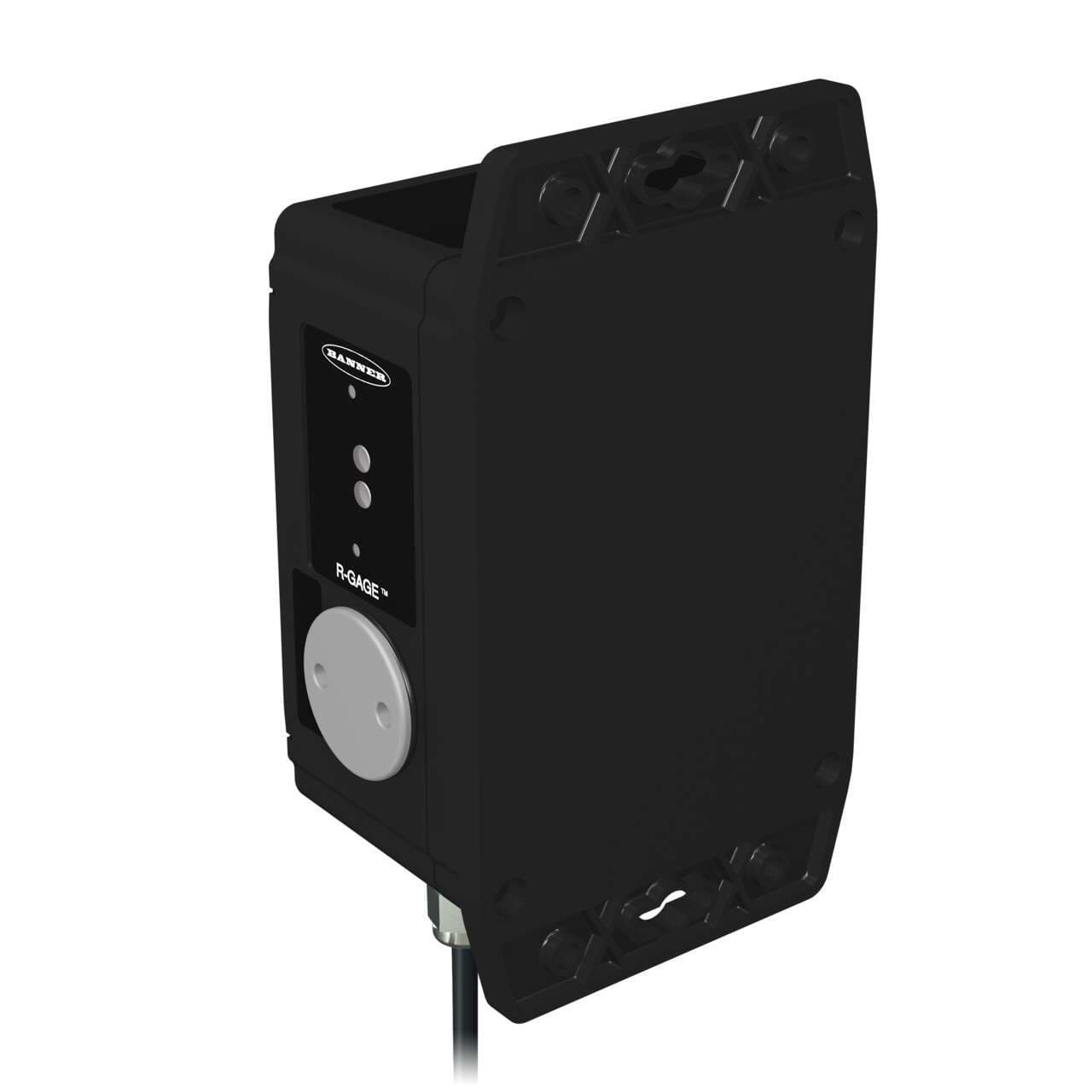

Q120RA-US-AF2Q Banner Optical Sensors

Q120RA-US-AF2Q on Powermatic Associates
Banner
  • Q120RA-US-AF2Q
  • Q120RA-US-AF2Q

Part#:Q120RA-US-AF2Q

Alt. Part#:25376

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

R-GAGE Series Radar Sensor; Bipolar Outputs; Range: 3.5-40 m; Response Speed: 40 ms; 5-pin M12 Integral QD

Product Details

  • Weight
    748.4268 g
  • Country Of Origin
    US
  • Cert: Brazil
    Yes
  • 1-wire Serial Interface
    No
  • Cert: US
    Yes
  • Profibus
    No
  • SSI
    No
  • RS-485
    No
  • Wireless
    No
  • RS-232
    No
  • RS-422
    No
  • Common Ethernet Protocol
    No
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Chemical Resistant
    No
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • PROFINET
    No
  • IO Link
    No
  • Minimum Response Time (ms)
    15
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • Min Operating Temperature (°C)
    -40
  • Max Operating Temperature (°C)
    65
  • IP Rating
    IP67
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Adjustments
    Dip Switch
  • Max Discrete (Switched) Output (mA)
    150
  • Number of Pins
    5
  • Output Protection
    Protected against short circuit
  • Delay at Power-up (ms)
    2000
  • Power Supply
    12-30 V dc
  • Minimum Sensing Distance (mm)
    3500
  • Input/Output
    Discrete
  • Max Sensing Distance (mm)
    40000
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Radar Beam Pattern (H x V °)
    24 x 50
  • Indicator
    LED(s)
  • Primary Housing Material
    ABS/Polycarbonate
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Rectangular
  • Power
    DC
  • Device Type
    Sensor
  • Operating Frequency
    24 GHz
  • PC Configurable
    No
  • Sensing Beam
    Radar
  • Max Measurement Range
    >20 m - <=50 m
  • Sensing Mode (Detailed)
    Time of Flight

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q120RA-US-AF2Q on Powermatic Associates is $2,977.00. Order now.

About the product

Banner Engineering Q120RA-US-AF2Q is a narrow-beam adjustable-field radar sensor designed with a time-of-flight system and is US / Brazil Telecom-approved. It operates within an ambient air temperature range of -40 to +65 °C and is housed in an ABS / Polycarbonate (PC) material, ensuring durability. This sensor is part of the Q120RA-AF series and offers a sensing distance of 3.5 to 40 meters. It features a pre-equipped 5-pin Euro-style M12 connector for connectivity and operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal. The Q120RA-US-AF2Q operates at a frequency range of 24.075GHz to 24.175GHz within the ISM band and provides two digital outputs (PNP/NPN transistor) for operational flexibility. It supports both Normally Open (NO) and Normally Closed (NC) operating modes. The device is protected against reverse polarity and short-circuit issues and is designed in a rectangular shape with an IP67 degree of protection, ensuring its suitability for various industrial applications.
