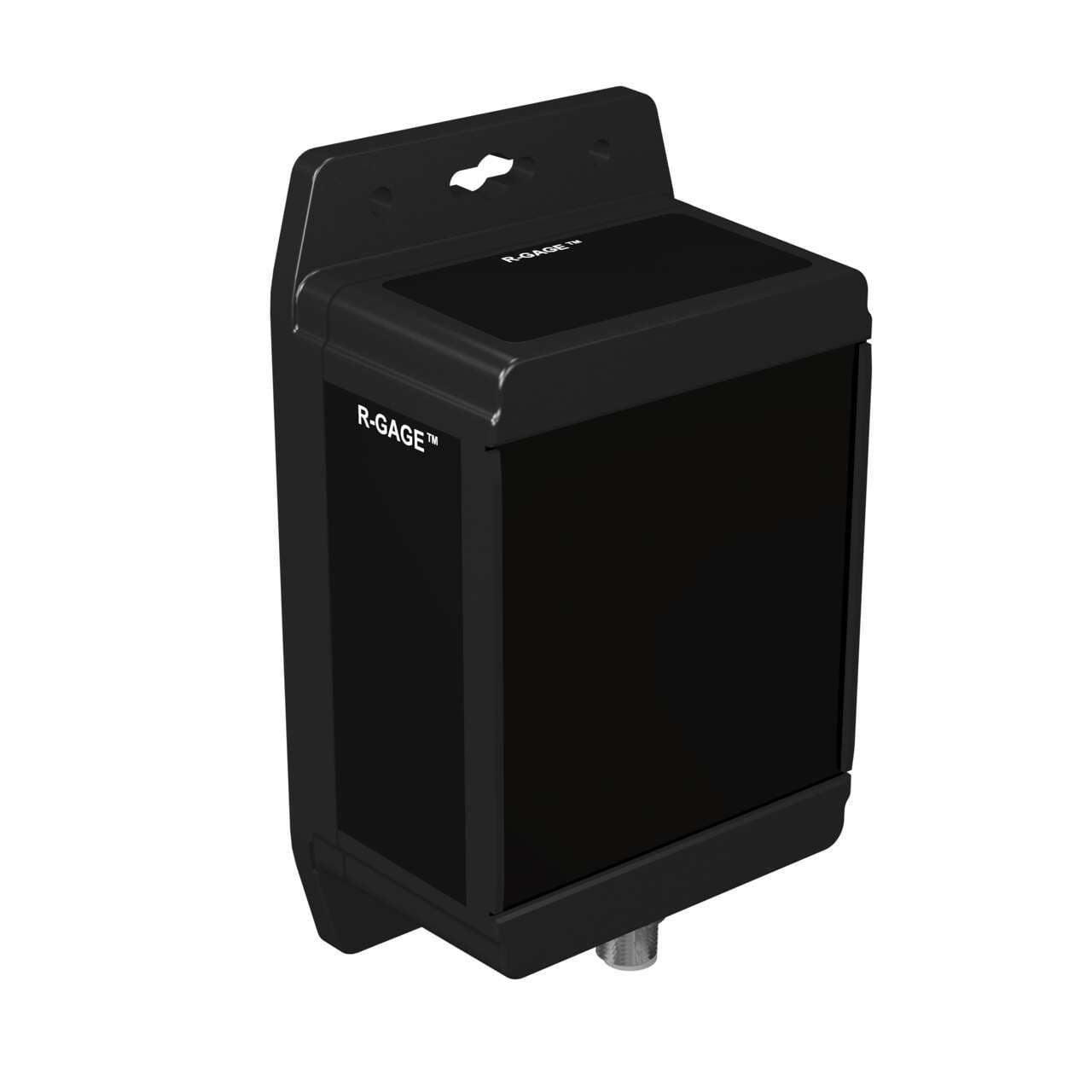

Q120RA-US-AF2WQ Banner Optical Sensors

Q120RA-US-AF2WQ on Powermatic Associates
Banner
  • Q120RA-US-AF2WQ
  • Q120RA-US-AF2WQ

Part#:Q120RA-US-AF2WQ

Alt. Part#:96354

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

R-GAGE Series Radar Sensor; Bipolar Outputs; Range: 3.5-26 m; Response Speed: 40 ms; 5-pin M12 Integral QD

Product Details

  • Weight
    816.4656 g
  • Country Of Origin
    US
  • Cert: US
    Yes
  • Profibus
    No
  • 1-wire Serial Interface
    No
  • Wireless
    No
  • SSI
    No
  • RS-422
    No
  • RS-485
    No
  • RS-232
    No
  • PROFINET
    No
  • IO Link
    No
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Feature: Timing (Hold/Delay)
    No
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Minimum Response Time (ms)
    15
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • Min Operating Temperature (°C)
    -40
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Output Protection
    Protected against short circuit
  • Max Operating Temperature (°C)
    65
  • IP Rating
    IP67
  • Max Discrete (Switched) Output (mA)
    150
  • Delay at Power-up (ms)
    2000
  • Number of Pins
    5
  • Max Sensing Distance (mm)
    26000
  • Adjustments
    Dip Switch
  • Minimum Sensing Distance (mm)
    3500
  • Power Supply
    12-30 V dc
  • Quick Disconnect Type
    M12 (Euro)
  • Connection
    Integral QD
  • Radar Beam Pattern (H x V °)
    24 x 50
  • Primary Housing Material
    ABS/Polycarbonate
  • Input/Output
    Discrete
  • Indicator
    LED(s)
  • Device Type
    Sensor
  • Sensing Mode (Detailed)
    Time of Flight
  • Housing Style
    Rectangular
  • PC Configurable
    No
  • Sensing Mode (General)
    Proximity
  • Operating Frequency
    24 GHz
  • Power
    DC
  • Max Measurement Range
    >20 m - <=50 m
  • Sensing Beam
    Radar
  • Primary brand
    Banner Engineering
  • Functions
    Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Digital outputs
    2 x digital outputs (PNP/NPN transistors)
  • Sub-range name
    Q120RA-AF
  • Material
    ABS / polycarbonate housing
  • Compliant with standard(s)
    cULus CE
  • Product series / family name
    R-GAGE series
  • Design
    time-of-flight system US / Brazil Telecom-approved
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Shape
    Rectangular
  • Protection functions
    Reverse polarity Short-circuit
  • Main function
    Sensor (Radar)
  • Sensing distance
    3.5...26m
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Degree of protection
    IP67
  • Emission frequency
    24.075GHz...24.175GHz (ISM band)
  • Ambient air temperature for operation
    -40...+65 °C
  • Equivalent to
    Q120RAUSAF2WQ
  • Order code / Manufacturer SKU
    96354

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q120RA-US-AF2WQ on Powermatic Associates is $2,239.00. Order now.

About the product

Banner Engineering Q120RA-US-AF2WQ is a narrow-beam adjustable-field radar sensor designed with a time-of-flight system and is US / Brazil Telecom-approved. It operates within an ambient air temperature range of -40 to +65 °C and is housed in an ABS / Polycarbonate (PC) material, ensuring durability. This sensor is pre-equipped with a 5-pin Euro-style M12 connector for connectivity and falls under the Q120RA-AF series. It offers a degree of protection rated at IP67, making it suitable for various environmental conditions. The supply voltage required for operation is 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. Its rectangular shape encompasses a transmission frequency within the 24.075GHz to 24.175GHz range on the ISM band. The sensing distance of this device spans from 3.5m to 26m. It features an operating mode that can be set to either NO (Normally Open) or NC (Normally Closed) and includes 2 x digital outputs (PNP/NPN transistor) for enhanced functionality. Additionally, it is equipped with protection functions against reverse polarity and short-circuit incidents.
