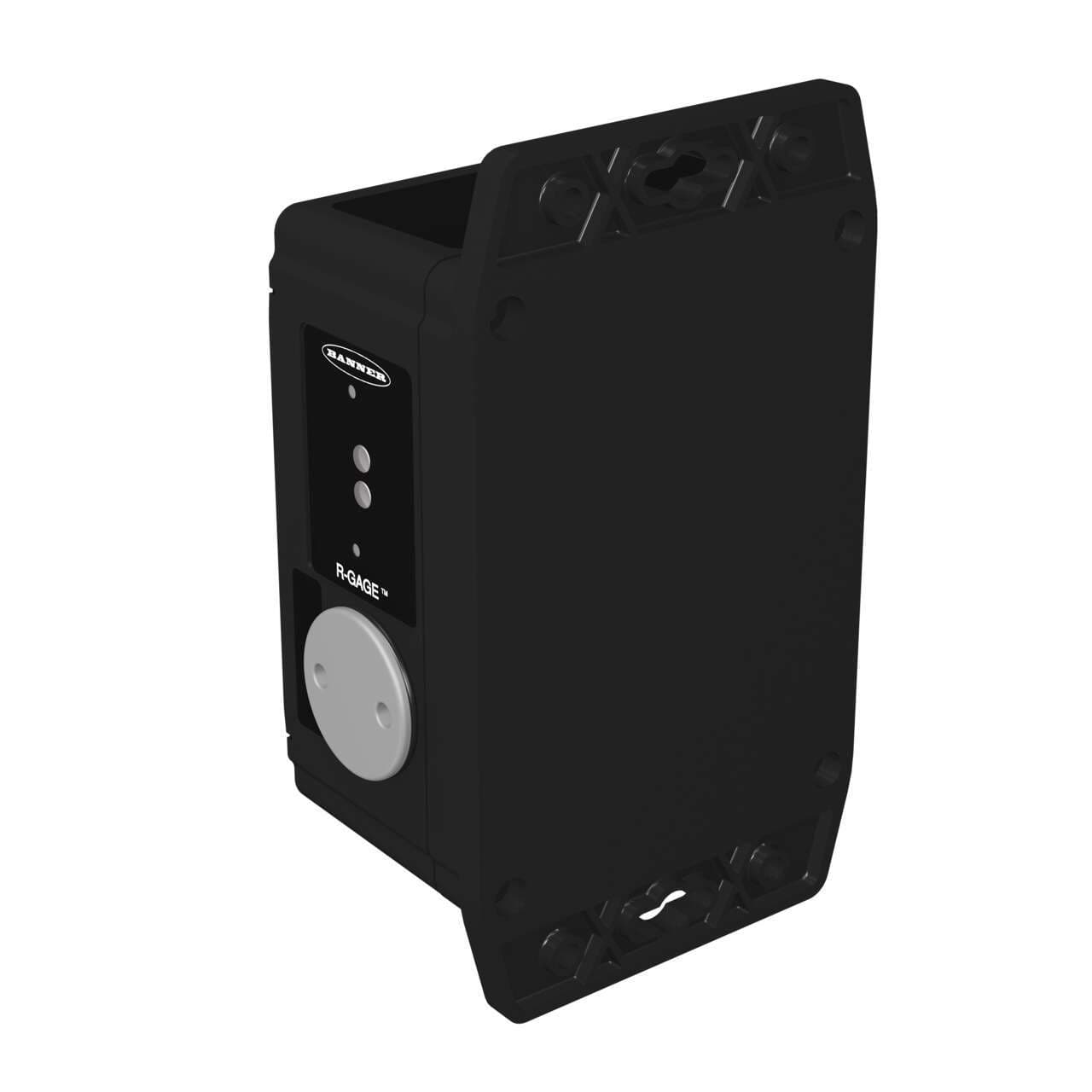

Q120RA-EU-AFQ Banner Optical Sensors

Q120RA-EU-AFQ on Powermatic Associates
Banner
  • Q120RA-EU-AFQ
  • Q120RA-EU-AFQ

Part#:Q120RA-EU-AFQ

Alt. Part#:54282

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

R-GAGE Series Radar Sensor; Bipolar Outputs; Range: 2-12 m Single Zone; Response Speed: 40 ms; 5-pin M12 Integral QD

Product Details

  • Weight
    725.7472 g
  • Country Of Origin
    US
  • Cert: European
    Yes
  • Cert: Japan
    Yes
  • Cert: China
    Yes
  • 1-wire Serial Interface
    No
  • Profibus
    No
  • Cert: Australia/New Zealand
    Yes
  • Wireless
    No
  • SSI
    No
  • RS-485
    No
  • PROFINET
    No
  • RS-232
    No
  • RS-422
    No
  • IO Link
    No
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Output Protection
    Protected against short circuit
  • Max Operating Temperature (°C)
    65
  • IP Rating
    IP67
  • Feature: Timing (Hold/Delay)
    No
  • Min Operating Temperature (°C)
    -40
  • Minimum Response Time (ms)
    15
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Max Sensing Distance (mm)
    12000
  • Minimum Sensing Distance (mm)
    2000
  • Max Discrete (Switched) Output (mA)
    150
  • Number of Pins
    5
  • Adjustments
    Dip Switch
  • Indicator
    LED(s)
  • Delay at Power-up (ms)
    2000
  • Power Supply
    12-30 V dc
  • Quick Disconnect Type
    M12 (Euro)
  • Radar Beam Pattern (H x V °)
    24 x 50
  • Primary Housing Material
    ABS/Polycarbonate
  • Sensing Mode (Detailed)
    Time of Flight
  • Input/Output
    Discrete
  • Connection
    Integral QD
  • Power
    DC
  • Sensing Beam
    Radar
  • Operating Frequency
    24 GHz
  • Device Type
    Sensor
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Rectangular
  • PC Configurable
    No
  • Max Measurement Range
    >5 m - <=20 m
  • Product series / family name
    R-GAGE series
  • Sensing distance
    2...12m
  • Shape
    Rectangular
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Main function
    Sensor (Radar)
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Material
    ABS / polycarbonate housing
  • Order code / Manufacturer SKU
    54282
  • Design
    time-of-flight system Europe / UK / Australia / New Zealand / China / Japan Telecom-approved
  • Degree of protection
    IP67
  • Equivalent to
    Q120RAEUAFQ
  • Sub-range name
    Q120RA-AF
  • Functions
    Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Protection functions
    Reverse polarity Short-circuit
  • Ambient air temperature for operation
    -40...+65 °C
  • Emission frequency
    24.050GHz...24.250GHz (ISM band)
  • Compliant with standard(s)
    cULus CE

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q120RA-EU-AFQ on Powermatic Associates is $1,905.00. Order now.

About the product

Banner Engineering Q120RA-EU-AFQ is a narrow-beam adjustable-field radar sensor designed with a time-of-flight system and is approved for use in Europe, UK, Australia, New Zealand, China, and Japan. This sensor operates within an ambient air temperature range of -40 to +65 degrees Celsius and is housed in an ABS/Polycarbonate (PC) material, ensuring durability. It features a pre-equipped 5-pin Euro-style M12 connector for connectivity and falls under the Q120RA-AF series. With an IP67 degree of protection, it is safeguarded against dust and water ingress. The sensor operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc being nominal. Its rectangular shape encompasses a transmission frequency within the 24.050GHz to 24.250GHz ISM band, capable of sensing distances from 2 to 12 meters. The operating modes include NO (Normally Open) and NC (Normally Closed) options, and it is equipped with 1 x digital output (PNP/NPN transistor). Protection functions include reverse polarity and short-circuit protection, enhancing its operational security.
