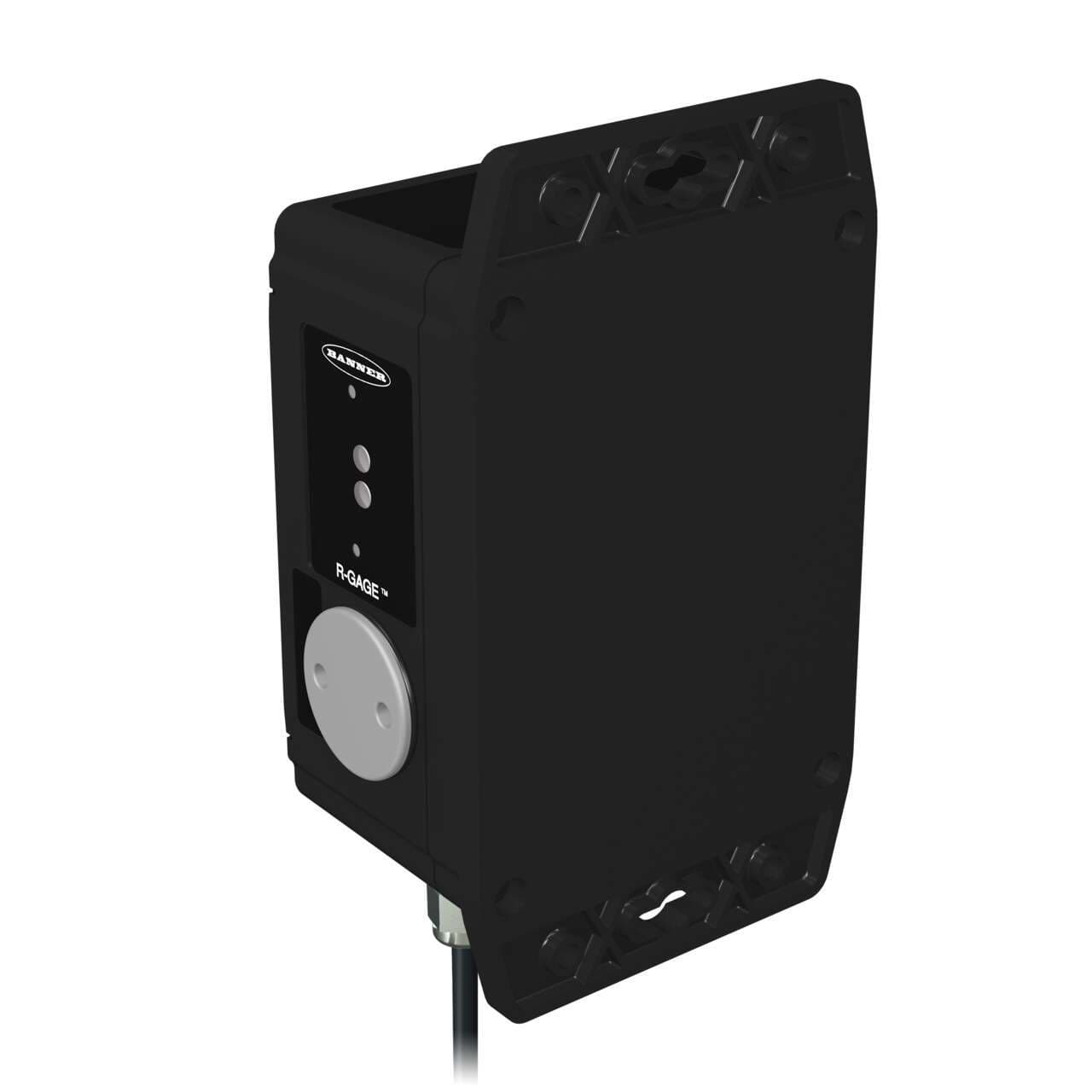

Q120RA-KR-AF2 Banner Optical Sensors

Q120RA-KR-AF2 on Powermatic Associates
Banner
  • Q120RA-KR-AF2
  • Q120RA-KR-AF2

Part#:Q120RA-KR-AF2

Alt. Part#:93884

Manufacturer:Banner

Category:Optical Sensors

Product Lifecycle:Active

Product description

R-GAGE Series Radar Sensor; Bipolar Outputs; Range: 2-40 m; Response Speed: 40 ms; 2 m (6.5 ft) Cable

Product Details

  • Weight
    816.4656 g
  • Country Of Origin
    US
  • 1-wire Serial Interface
    No
  • Cert: Korea
    Yes
  • Wireless
    No
  • Profibus
    No
  • SSI
    No
  • RS-485
    No
  • RS-422
    No
  • RS-232
    No
  • PROFINET
    No
  • Feature: Timing (Hold/Delay)
    No
  • IO Link
    No
  • Common Ethernet Protocol
    No
  • Feature: Chemical Resistant
    No
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • Minimum Response Time (ms)
    15
  • Max Operating Temperature (°C)
    65
  • Min Operating Temperature (°C)
    -40
  • IP Rating
    IP67
  • Output Protection
    Protected against short circuit
  • Discrete (Switched) Outputs
    2 NPN/PNP Configurable
  • Max Discrete (Switched) Output (mA)
    150
  • Number of Pins
    5
  • Adjustments
    Dip Switch
  • Delay at Power-up (ms)
    2000
  • Power Supply
    12-24 V dc
  • Minimum Sensing Distance (mm)
    2000
  • Max Sensing Distance (mm)
    40000
  • Primary Housing Material
    ABS/Polycarbonate
  • Connection
    Flying Leads
  • Indicator
    LED(s)
  • Quick Disconnect Type
    No QD
  • Housing Style
    Rectangular
  • Operating Frequency
    24 GHz
  • Sensing Mode (General)
    Proximity
  • Radar Beam Pattern (H x V °)
    24 x 50
  • PC Configurable
    No
  • Sensing Mode (Detailed)
    Time of Flight
  • Input/Output
    Discrete
  • Cable Length (m)
    2
  • Power
    DC
  • Sensing Beam
    Radar
  • Max Measurement Range
    >20 m - <=50 m
  • Device Type
    Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q120RA-KR-AF2 on Powermatic Associates is $2,977.00. Order now.

About the product

Banner Engineering Q120RA-KR-AF2 is a narrow-beam adjustable-field radar sensor designed with a time-of-flight system and approved by Korea Telecom. It operates within an ambient air temperature range of -40 to +65 °C and is equipped with a pre-wired 6.5ft / 2m cable terminated with bare end flying leads for connectivity. This sensor falls under the Q120RA-AF series and offers a degree of protection rated at IP67, making it suitable for various environmental conditions. It requires a supply voltage of 12Vdc to 24Vdc and features a rectangular shape. The Q120RA-KR-AF2 operates on a 24.050GHz to 24.250GHz (ISM band) transmission frequency and is constructed with an ABS / Polycarbonate (PC) housing. It has a sensing distance range of 2 to 40 meters and supports both NO (Normally Open) and NC (Normally Closed) operating modes. Additionally, it includes 2 x digital outputs (PNP/NPN transistor) and is equipped with protection functions against reverse polarity and short-circuit incidents.
