M12PLV Banner Proximity Sensors

M12PLV on Powermatic Associates
Banner

Part#:M12PLV

Alt. Part#:77186

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

M12 Series: Retro (Red); Range: 2.5 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; 2 m (6.5 ft) Cable

Product Details

  • Weight
    68.0388 g
  • Country Of Origin
    US
  • Input/Output
    Discrete
  • Special Feature: Intrinsically Safe
    No
  • Sensing Beam
    Visible Red LED
  • Min Op. Temp. (°C)
    -20
  • Repeatability (µs)
    95
  • Feature: Washdown Rated
    Yes
  • Sensing Mode (General)
    Retroreflective
  • Quick Disconnect Type
    No QD
  • Number of Pins
    4
  • Opposed Mode Emitter/Receiver
    N/A
  • Primary Housing Material
    Nickel-Plated Brass
  • Max Op. Temp. (°C)
    60
  • NEMA Rating
    NEMA 5, 6 and 1200 PSI Washdown
  • Feature: Hazardous Area
    No
  • Sensing Mode (Detailed)
    Non-Polarized
  • Operation
    Light/Dark Operate
  • Lens Material
    PMMA
  • Feature: Audible
    No
  • IO Link
    No
  • Outputs
    PNP
  • Sensing Beam Wavelength
    660
  • Feature: Encapsulated
    Yes
  • Connection
    Cable
  • Cable Length (m)
    2
  • Delay at Power-up (ms)
    100
  • Adjustments
    Potentiometer
  • Housing Style
    Barrel
  • Output response time (ms)
    0.5
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Chemical Resistant
    No
  • Max Sensing Distance (mm)
    2500
  • Power
    DC
  • Special Feature: Remote Teach
    No
  • Barrel Diameter (mm)
    12
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Water Detection
    No
  • Indicator
    LEDs
  • IP Rating
    IP67, IP68
  • Feature: Timing (Hold/Delay)
    No
  • DeviceNet
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M12PLV on Powermatic Associates is $110.00. Order now.

About the product

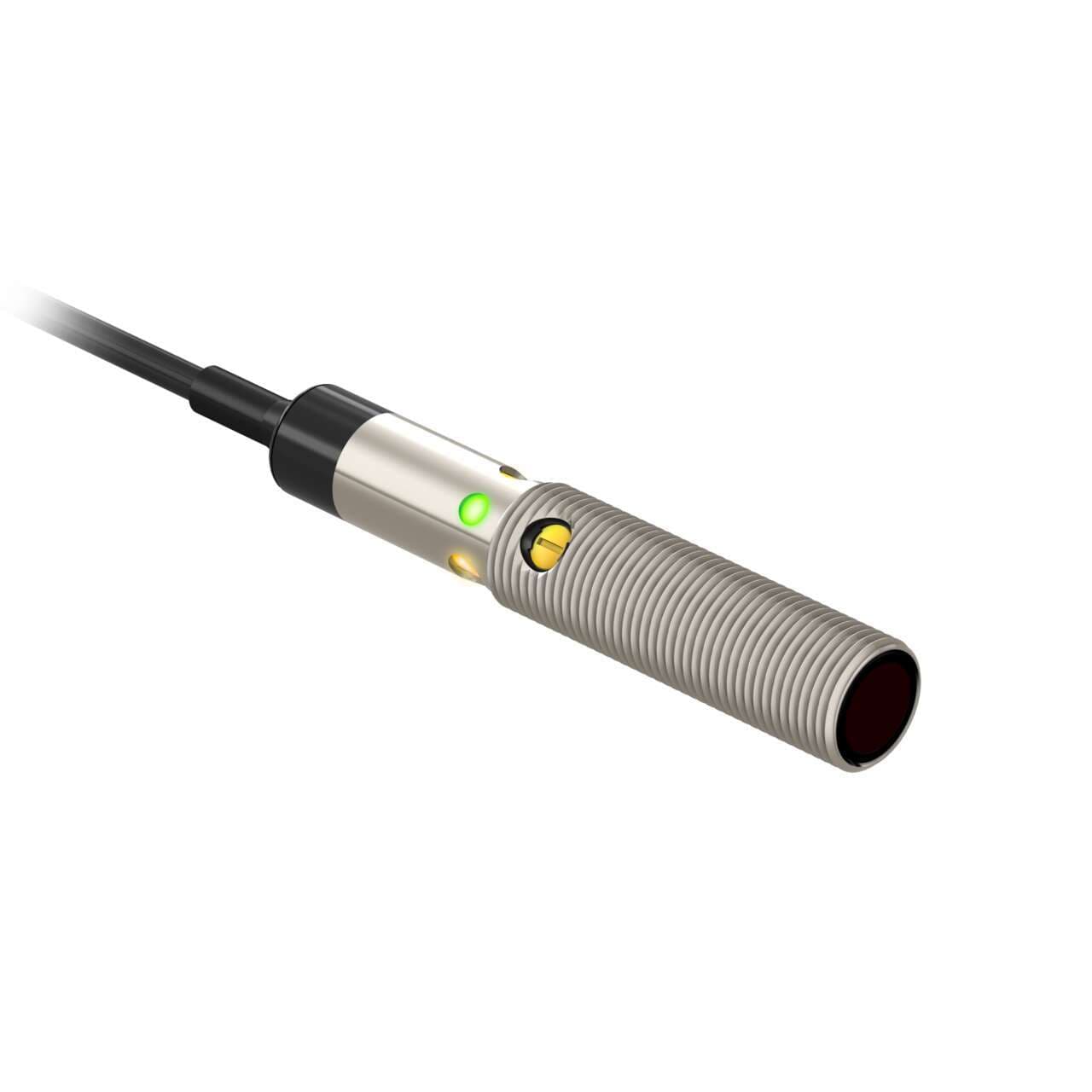

Banner Engineering M12PLV is a photo-electric sensor from the M12 series designed in a retro-reflective mode with potentiometer adjustment. It features a visible red light and is housed in nickel-plated brass with a Polymethyl methacrylate (PMMA) lens. This sensor is shaped in an M12 cylindrical threaded/barrel form and comes pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and has a wavelength of 660 nm. The M12PLV can function in ambient air temperatures ranging from -20 to +60 °C and offers a degree of protection rated at IP67, IP68, NEMA 5, and NEMA 6. It supports Light-ON and Dark-ON operating modes, has an M12 thread size, and offers a sensing distance of up to 2.5m. Additionally, it features 1 x digital output (PNP transistor; complementary NO/NC) with a response time of 0.5ms / 0.0005 s.

M12PLV Related Documents

129721.pdf
