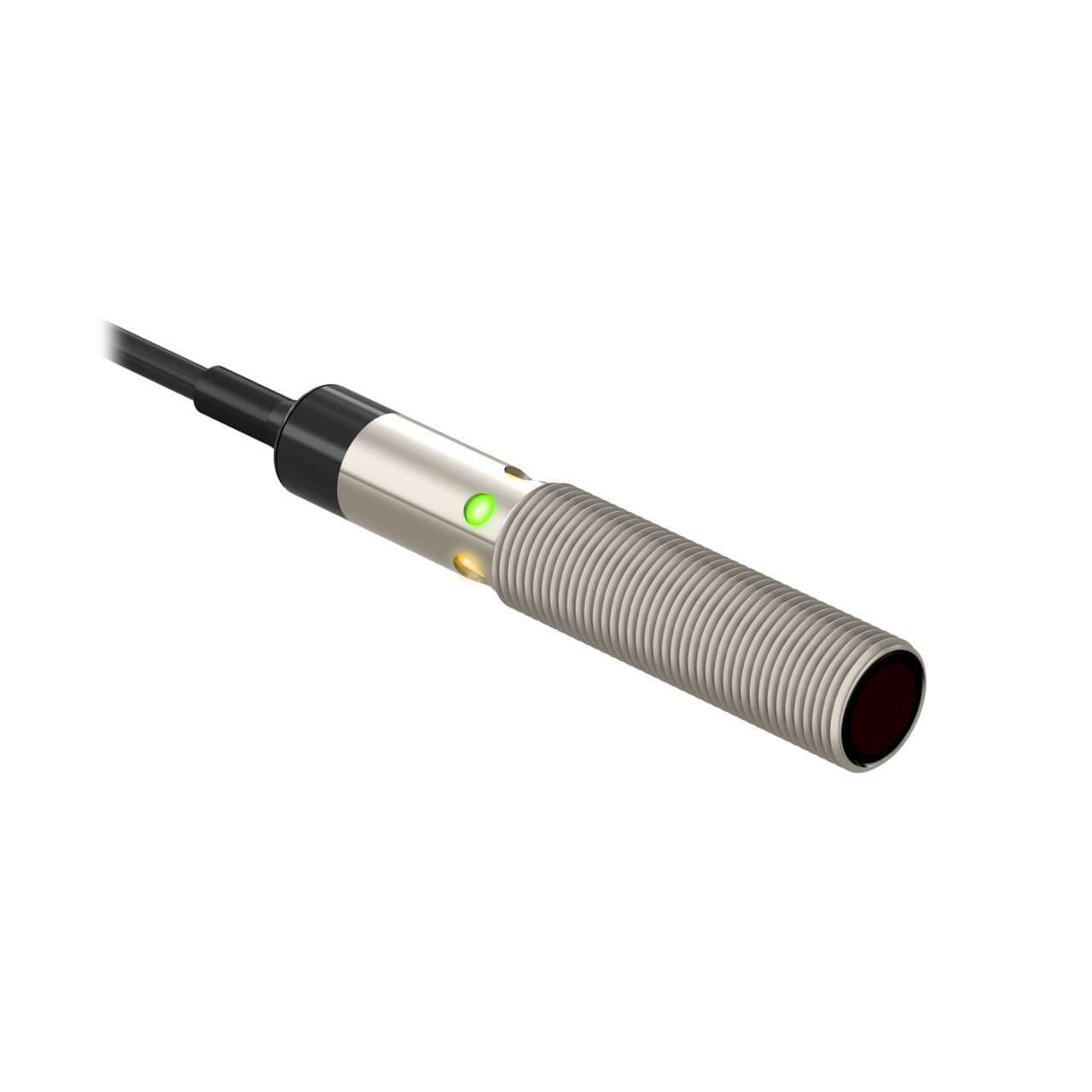

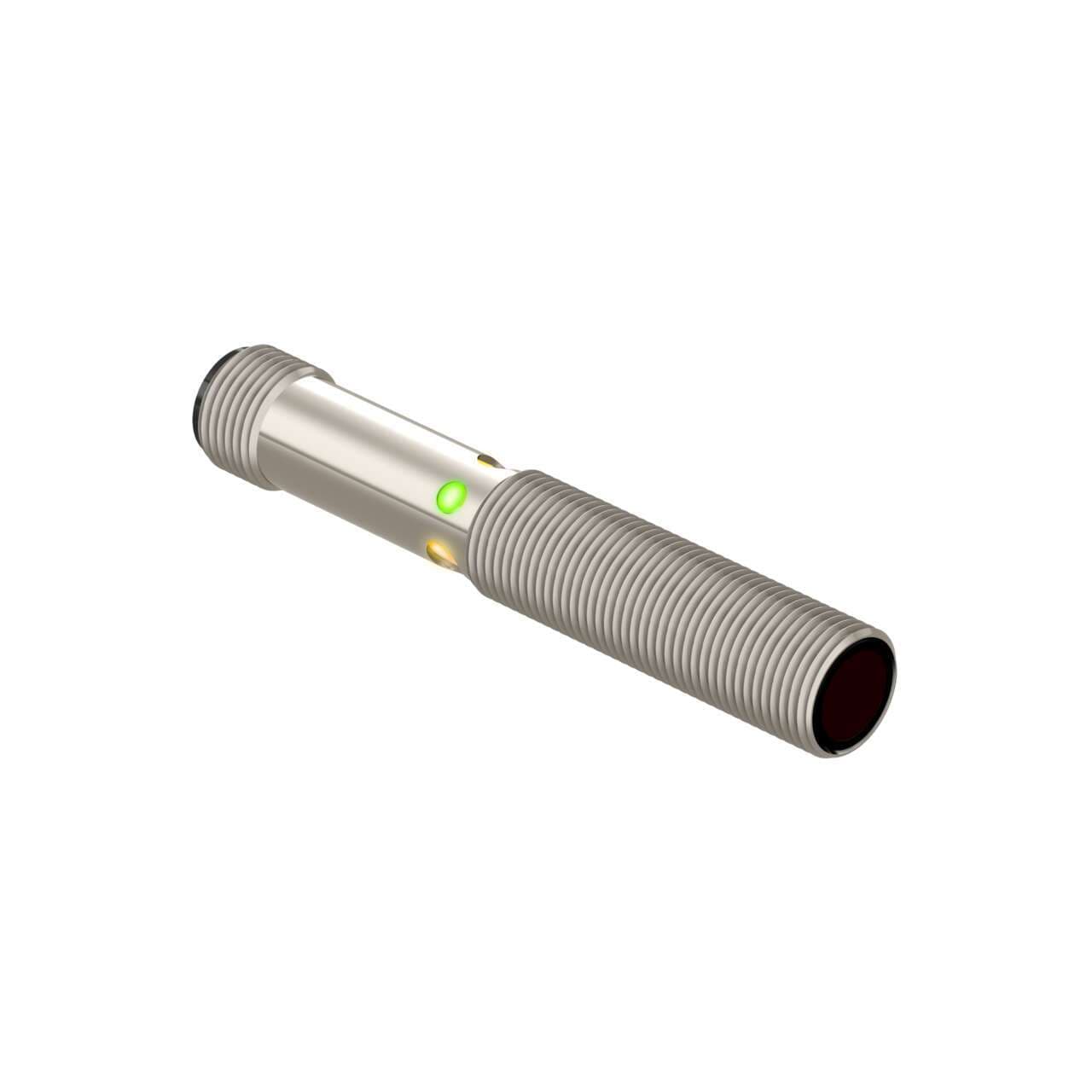

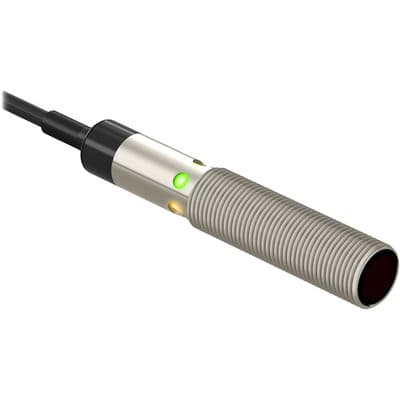

M12E Banner Proximity Sensors

Product Details

• Weight
  27.21552 g
• Country Of Origin
  US
• DeviceNet
  No
• IO Link
  No
• Feature: Timing (Hold/Delay)
  No
• Feature: Audible
  No
• Feature: Encapsulated
  Yes
• Feature: Hazardous Area
  No
• Feature: Chemical Resistant
  No
• Feature: Washdown Rated
  Yes
• Indicator
  LEDs
• Barrel Diameter (mm)
  12
• Adjustments
  Potentiometer
• Opposed Mode Emitter/Receiver
  Emitter
• Lens Material
  PMMA
• NEMA Rating
  NEMA 5, 6 and 1200 PSI Washdown
• Max Op. Relative Humidity [%]
  90% @ 50°C
• IP Rating
  IP67, IP68
• Number of Pins
  4
• Repeatability (µs)
  N/A
Delay at Power-up (ms)
100
Sensing Beam Wavelength
660
Special Feature: Water Detection
No
Special Feature: Remote Teach
No
Operation
N/A
Output response time (ms)
0.625 ON/0.375 OFF
Special Feature: Intrinsically Safe
No
Max Op. Temp. (°C)
60
Min Op. Temp. (°C)
-20
Connection
Cable
Quick Disconnect Type
No QD
Power Supply/Supply Voltage
10-30 V dc
Outputs
N/A
Max Sensing Distance (mm)
5000
Primary Housing Material
Nickel-Plated Brass
Sensing Mode (Detailed)
Emitter
Housing Style
Barrel
Power
DC
Sensing Mode (General)
Opposed
Sensing Beam
Visible Red LED
Cable Length (m)
2
Main function
Sensor (Photo-electric)
Wavelength
660 nm
Light Color
Visible red
Degree of protection
IP67 IP68 NEMA 5 NEMA 6
Thread size
M12
Product series / family name
M12 barrel series
Compliant with standard(s)
CE
Sub-range name
M12
Functions
Photo-electric emitter green LED (power ON) amber LED (light sensed)
Material
Nickel-plated brass housing PMMA lns.
Order code / Manufacturer SKU
77202
Primary brand
Banner Engineering
Design
through-beam system / opposed mode
Connection type
Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Shape
Cylindrical threaded/barrel
Ambient air temperature for operation
-20...+60 °C
