PSG 4-2 Turck Cordsets

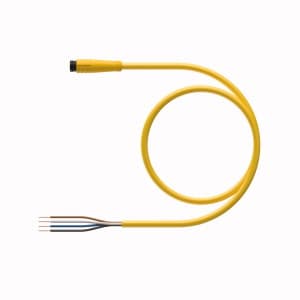

Turck PSG 4-2 PSG 4-2 Actuator and Sensor Cordset, Connection Cable
Turck

Part#:PSG 4-2

Manufacturer:Turck

Alt. Part#:U99-11323

Product Lifecycle:Active

In-stock parts: 257

Oct 5, 2024

PSG 4-2 Actuator and Sensor Cordset, Connection Cable

About the manufacturer: Turck is one of the manufacturers that offers Cordsets that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the PSG 4-2 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    45 g
  • Cable length (L)
    2.0  m
  • Approvals
    UL Listed, CSA, CE, RoHS
  • Cable Jacket Material
    PVC
  • Connector A - Style
    Straight, Male
  • Voltage
    125 V
  • Cable Jacket Color
    Yellow
  • Current
    2 A
  • Connector A - Number of Pins
    4
  • Number of Conductors
    4
  • Connector A
    Ø 8 mm
  • Application
    Actuator and Sensor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PSG 4-2 Description

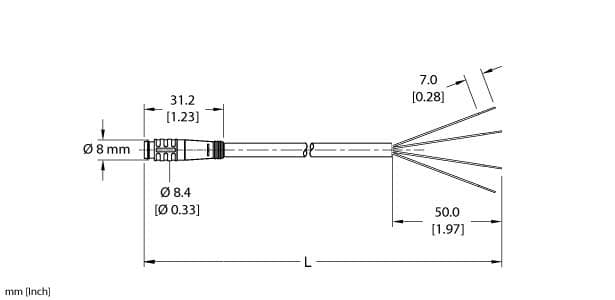

Turck PSG 4-2 is a single-ended mating cable/cordset designed for automation applications. It features a 4-pin M8 picofast male connector with male snap-lock to bare end flying leads. The cable has a length of 2 meters and a diameter of 4.4mm for the cable sheath O.D. It is rated for a current of 2A and a voltage of 125Vac. This part falls under the M8 picofast to bare leads sub-range and is constructed with a nickel-plated brass coupling nut and a PVC jacket, colored black. The PSG 4-2 offers a degree of protection rated at IP67, NEMA 1, NEMA 3, NEMA 4, and NEMA 6P. It supports a 4-wire connection with a cross-section of 4 x #26AWG.

Related documents PSG 4-2 Specs

PSG 4-2 edb_U99-11323_eng_us.pdf

This item can ship within 24h!

Manufacturer warranty

$18.30

Stock:

257

Select Qty:

$18.30

$18.30 each

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
