ML30.102
Puls
Product Lifecycle: Active

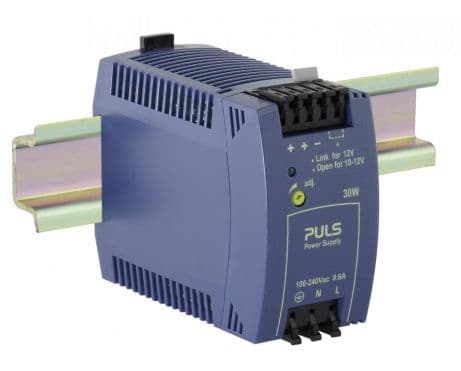

PULS ML30.102 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a NEC Class 2 design for very low output noise. The unit provides a rated current of 2.5A at 12Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 46Vac turn-ON voltage and a 44Vac shutdown voltage) and from 88Vdc to 375Vdc (with nominal values including 100Vdc to 250Vdc). The ML30.102 is housed in a PC / ABS blend and is suitable for single-phase (1AC) or DC networks. It measures 45mm in width, 75mm in height, and 91mm in depth. The rated power is 30W, and the output voltage is adjustable between 10-12Vdc, with a 250mV turn-ON overshoot. It includes protection functions such as NTC for input inrush current limiting. The efficiency is rated at 0.84 with a 230Vac input, and it has a current consumption of 17A max. inrush at 120Vac input and 35A peak max. inrush at 230Vac input. Power dissipation/losses are calculated at 5.8W, and the ripple is specified at 10mVpp over a frequency range of 20Hz to 20MHz at 50Ω.
![ML30.102](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2FML30.102.jpg&w=3840&q=75)
PULS ML30.102 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and features a NEC Class 2 design for very low output noise. The unit provides a rated current of 2.5A at 12Vdc and utilizes spring-clamp connections for connectivity. It supports a wide supply voltage range from 85Vac to 264Vac (with specific nominal values across 100Vac to 240Vac at 47-63Hz, including a 46Vac turn-ON voltage and a 44Vac shutdown voltage) and from 88Vdc to 375Vdc (with nominal values including 100Vdc to 250Vdc). The ML30.102 is housed in a PC / ABS blend and is suitable for single-phase (1AC) or DC networks. It measures 45mm in width, 75mm in height, and 91mm in depth. The rated power is 30W, and the output voltage is adjustable between 10-12Vdc, with a 250mV turn-ON overshoot. It includes protection functions such as NTC for input inrush current limiting. The efficiency is rated at 0.84 with a 230Vac input, and it has a current consumption of 17A max. inrush at 120Vac input and 35A peak max. inrush at 230Vac input. Power dissipation/losses are calculated at 5.8W, and the ripple is specified at 10mVpp over a frequency range of 20Hz to 20MHz at 50Ω.
$184.00
Select Qty:
$184.00
$184.00 each
