ML30.106
Puls
Product Lifecycle: Active

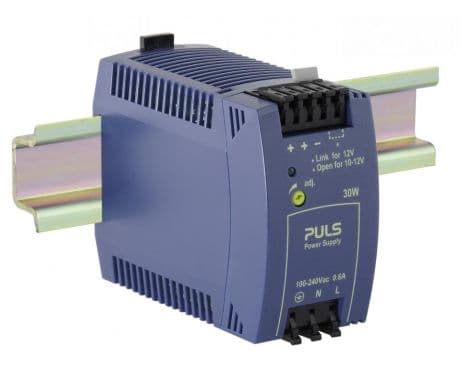

PULS ML30.106 is a dual output voltage single-phase power supply unit (PSU) and AC/DC-Converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is classified as NEC Class 2. This unit provides a rated current of 2.5A at 12Vdc with spring-clamp connections for ease of installation. It supports a wide supply voltage range from 85Vac to 264Vac (with nominal values including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at 47-63Hz), featuring a 46Vac turn-ON voltage and a 44Vac shutdown voltage. Additionally, it can be powered by DC voltages ranging from 88Vdc to 375Vdc, with nominal values such as 100Vdc, 110Vdc, 120Vdc, 127Vdc, 200Vdc, 220Vdc, and 250Vdc. The ML30.106 has dimensions of W45mm x H75mm x D91mm and is housed in a PC/ABS blend. It is suitable for single-phase (1AC) or DC networks, has a net width of 45 mm, and offers a rated power of 36W. The output voltage is symmetrical +/-12Vdc to +/-15Vdc, adjustable with a 250mV turn-ON overshoot. It features protection functions including NTC for input inrush current limiting, achieves an efficiency of 0.86 with a 230Vac input, and has a current consumption of 17A max. inrush at 120Vac input and 35A peak max. inrush at 230Vac input. Power dissipation/losses are rated at 5.9 W, and it has a ripple of 50mVpp across 20Hz to 20MHz at 50Ω.
![ML30.106](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2FML30.106.jpg&w=3840&q=75)
PULS ML30.106 is a dual output voltage single-phase power supply unit (PSU) and AC/DC-Converter designed for DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and is classified as NEC Class 2. This unit provides a rated current of 2.5A at 12Vdc with spring-clamp connections for ease of installation. It supports a wide supply voltage range from 85Vac to 264Vac (with nominal values including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac at 47-63Hz), featuring a 46Vac turn-ON voltage and a 44Vac shutdown voltage. Additionally, it can be powered by DC voltages ranging from 88Vdc to 375Vdc, with nominal values such as 100Vdc, 110Vdc, 120Vdc, 127Vdc, 200Vdc, 220Vdc, and 250Vdc. The ML30.106 has dimensions of W45mm x H75mm x D91mm and is housed in a PC/ABS blend. It is suitable for single-phase (1AC) or DC networks, has a net width of 45 mm, and offers a rated power of 36W. The output voltage is symmetrical +/-12Vdc to +/-15Vdc, adjustable with a 250mV turn-ON overshoot. It features protection functions including NTC for input inrush current limiting, achieves an efficiency of 0.86 with a 230Vac input, and has a current consumption of 17A max. inrush at 120Vac input and 35A peak max. inrush at 230Vac input. Power dissipation/losses are rated at 5.9 W, and it has a ripple of 50mVpp across 20Hz to 20MHz at 50Ω.
Product details
- UL File No.E198865
- Phase1 Phase
- Height75 mm
- Width45 mm
- Depth91 mm
- Current Output2.5 A
- Current Input0.65 A
- Power36 W
- Voltage Output12 - 15 VDC
- Voltage Input100 - 240 VAC
- Efficiency86 %
