CS10.243
Puls
Product Lifecycle: Active
PULS CS10.243 is a DIN rail mounting power supply unit with an aluminium housing designed for a single-phase network. It operates within an ambient air temperature range of 0 to +70°C and has a net width of 60mm. The unit consumes 3.71A with a 120Vac input and 4.32A with a 100Vac input for a full 24Vdc output, featuring a peak inrush current of 108A at 120Vac input and 90A at 100Vac input. It offers an efficiency of 0.913 at 120Vac input and 0.91 at 100Vac input. The dimensions are W60mm x H124mm x D117mm. It includes a 250ms start-up delay for 100-120Vac input, with a rise time of 35ms under nominal input at constant full current load with 0mF load capacitance and 75ms with 10mF load capacitance. The power supply unit is equipped with protection functions including output overvoltage protection, NTC for input inrush current limiting, and overload/short-circuit protection. It supports series/parallel operation for redundancy and is resistant to back-feeding loads up to 35V. Power dissipation/losses are 22.9W at 120Vac input with full output load, and the output stage capacitance is 7000µF. Electrical durability ranges from 27,000 to 281,000 hours depending on conditions. Ripple is maintained at 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit, part of the C-Line series, features a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage of 90Vac-132Vac (47-63Hz) with a turn-ON voltage of 82Vac and a shutdown voltage of 78Vac in steady-state. The rated current is 12A at 24Vdc for ambient temperatures less than 45°C and 10A at 24Vdc for less than 60°C, with an adjustable output voltage of 24Vdc-28Vdc. The hold time is 46ms at 120Vac input.

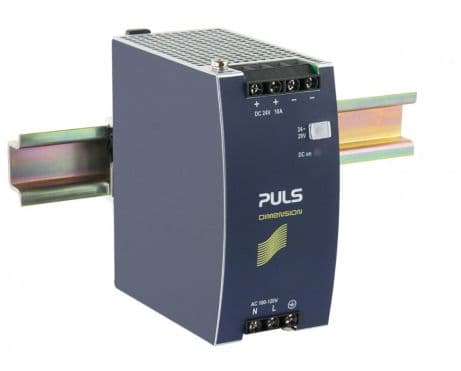

![CS10.243](/_next/image?url=https%3A%2F%2Fappstoragepublicprod.s3.us-west-1.amazonaws.com%2FPartImage%2FCS10.243.jpg&w=3840&q=75)
PULS CS10.243 is a DIN rail mounting power supply unit with an aluminium housing designed for a single-phase network. It operates within an ambient air temperature range of 0 to +70°C and has a net width of 60mm. The unit consumes 3.71A with a 120Vac input and 4.32A with a 100Vac input for a full 24Vdc output, featuring a peak inrush current of 108A at 120Vac input and 90A at 100Vac input. It offers an efficiency of 0.913 at 120Vac input and 0.91 at 100Vac input. The dimensions are W60mm x H124mm x D117mm. It includes a 250ms start-up delay for 100-120Vac input, with a rise time of 35ms under nominal input at constant full current load with 0mF load capacitance and 75ms with 10mF load capacitance. The power supply unit is equipped with protection functions including output overvoltage protection, NTC for input inrush current limiting, and overload/short-circuit protection. It supports series/parallel operation for redundancy and is resistant to back-feeding loads up to 35V. Power dissipation/losses are 22.9W at 120Vac input with full output load, and the output stage capacitance is 7000µF. Electrical durability ranges from 27,000 to 281,000 hours depending on conditions. Ripple is maintained at 50mVpp across a 20Hz to 20MHz range. This AC/DC power supply unit, part of the C-Line series, features a 20% power reserve, DC-OK relay contact output, and screw-clamp connections. It accepts a supply voltage of 90Vac-132Vac (47-63Hz) with a turn-ON voltage of 82Vac and a shutdown voltage of 78Vac in steady-state. The rated current is 12A at 24Vdc for ambient temperatures less than 45°C and 10A at 24Vdc for less than 60°C, with an adjustable output voltage of 24Vdc-28Vdc. The hold time is 46ms at 120Vac input.
Product details
- UL File No.E198865
- Phase1 Phase
- Height124 mm
- Width60 mm
- Depth117 mm
- Current Output10 A
- Current Input3.71 A
- Power240 W
- Voltage Output24 - 28 VDC
- Voltage Input100 - 120 VAC
- Efficiency91.3 %
