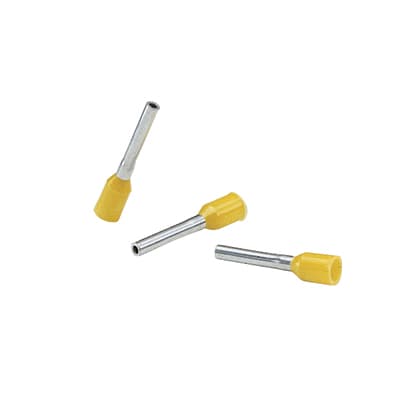

FSD78-10-D Panduit Electronic Components

Product Details

• Part Features
  Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for single wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for
• Sub Brand
  Pan-Term®
• Base Material
  Copper
• Color Code
  Black
• For Use With
  CT-1160, CT-1170, CT-1090, CT-1002, CT-1003, CT-1123, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
• Packaging Type
  Loose Piece Ferrules
• Finish/Coating
  Tin-Plated
• Product Type
  Single wire ferrule
• Overall Length (mm)
  16.5
• Standards Met
  DIN 46228, CSA C22.2 No. 291-14, UL 486F
• Maximum Wire Insulation Diameter (mm)
  3
• Overall Length (In.)
  0.65
• Minimum Operating Temperature (°F)
  -60
• Maximum Wire Insulation Diameter (In.)
  0.12
• Minimum Operating Temperature (°C)
  -54
• Maximum Operating Temperature (°F)
  221
• Pin Length (mm)
  10
• Maximum Operating Temperature (°C)
  105
• Inside Diameter (mm)
  1.8
• Inside Diameter (In.)
  0.07
Pin Length (In.)
0.39
Minimum Metric Conductor Size (mm²)
1.5
Flammability Rating
UL94-HB
Wire Strip Length (mm)
13.5
Copper Conductor Size (AWG)
16
Wire Strip Length (In.)
17/32
Maximum Metric Conductor Size (mm²)
1.5
Cover Material
Polypropylene
Ferrule Type
Single Wire Standard
