FSD77-8-D Panduit Industrial Automation Components

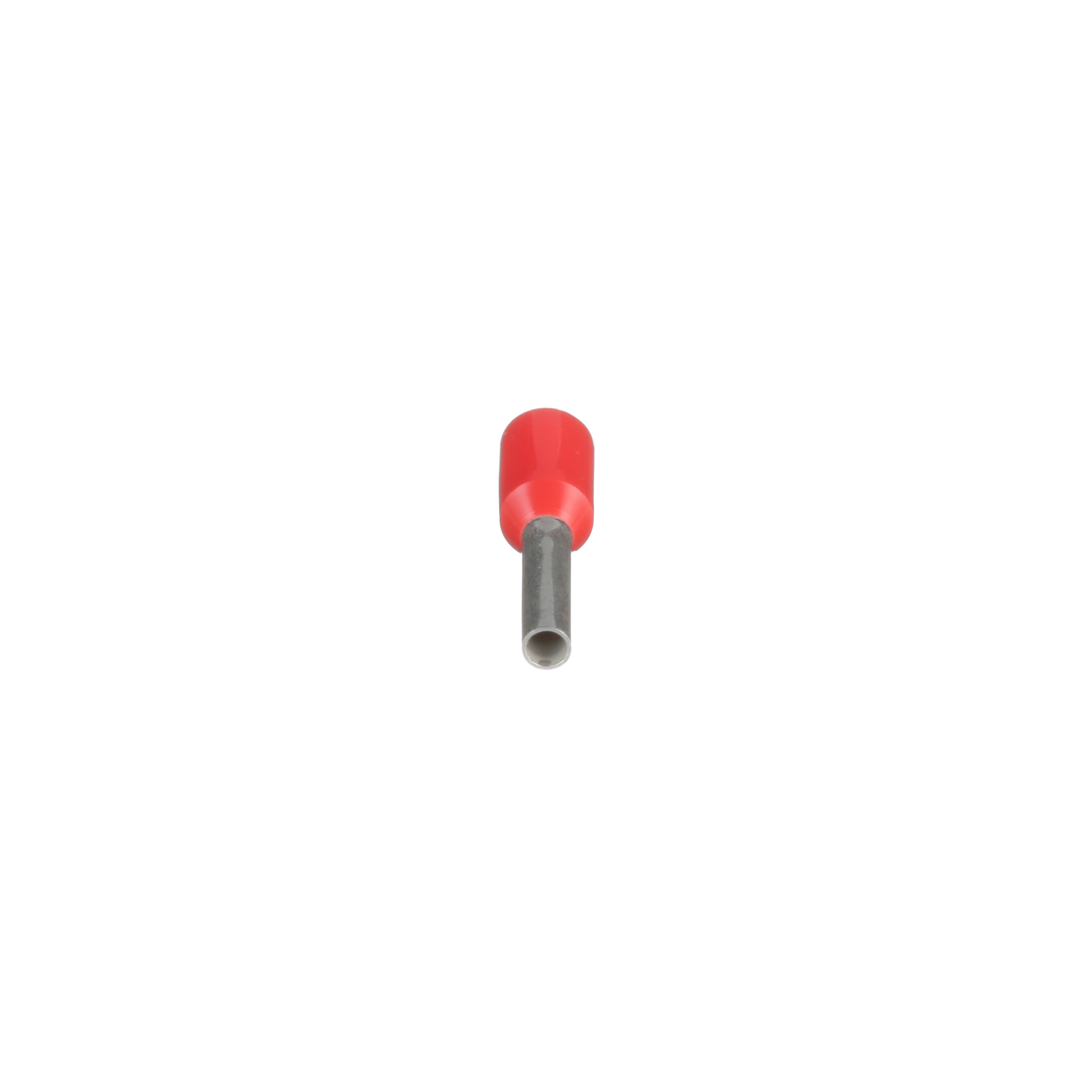

Panduit FSD77-8-D 18 WIRE INSULATED SINGLE .57"WIRE END FERRULE RED500/PK
Panduit

Part#:FSD77-8-D

Manufacturer:Panduit

Product Lifecycle:Active

In-stock parts: 39

Sep 28, 2024

18 WIRE INSULATED SINGLE .57"WIRE END FERRULE RED500/PK

About the manufacturer: Panduit is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Panduit, a top provider of infrastructure products and services for data networks and electrical power applications, assists in developing connectivity solutions that can significantly enhance your business success by improving the quality of your infrastructure.

Check out the FSD77-8-D Panduit price in the box on the right side or send a quick quote.

Product Details

  • Sub Brand
    Pan-Term®
  • Color Code
    Red
  • Base Material
    Copper
  • Part Features
    Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for single wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for
  • Standards Met
    DIN 46228, CSA C22.2 No. 291-14, UL 486F
  • For Use With
    CT-1160, CT-1170, CT-1090, CT-1002, CT-1003, CT-1123, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
  • Packaging Type
    Loose Piece Ferrules
  • Finish/Coating
    Tin-Plated
  • Product Type
    Single wire ferrule
  • Overall Length (mm)
    14.5
  • Overall Length (In.)
    0.57
  • Maximum Wire Insulation Diameter (In.)
    0.12
  • Maximum Wire Insulation Diameter (mm)
    3
  • Minimum Operating Temperature (°F)
    -60
  • Minimum Operating Temperature (°C)
    -54
  • Maximum Operating Temperature (°F)
    221
  • Inside Diameter (In.)
    0.06
  • Inside Diameter (mm)
    1.5
  • Maximum Operating Temperature (°C)
    105
  • Wire Strip Length (In.)
    15/32
  • Pin Length (In.)
    0.31
  • Pin Length (mm)
    8
  • Flammability Rating
    UL94-HB
  • Cover Material
    Polypropylene
  • Ferrule Type
    Single Wire Standard
  • Maximum Metric Conductor Size (mm²)
    1
  • Wire Strip Length (mm)
    11.9
  • Minimum Metric Conductor Size (mm²)
    1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents FSD77-8-D Specs

FSD77-8-D Panduit - Catalog Cut Sheets.pdf
FSD77-8-D Panduit - Part Drawings.pdf
