Product description

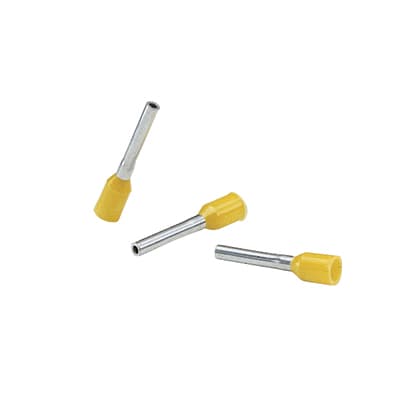

Pan-Term® Single wire ferrule

Product Details

  • Part Features
    Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for single wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strands for
  • Sub Brand
    Pan-Term®
  • Color Code
    Gray
  • Base Material
    Copper
  • Packaging Type
    Loose Piece Ferrules
  • For Use With
    CT-1160, CT-1170, CT-1090, CT-1002, CT-1003, CT-1123, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
  • Finish/Coating
    Tin-Plated
  • Standards Met
    DIN 46228, CSA C22.2 No. 291-14, UL 486F
  • Product Type
    Single wire ferrule
  • Overall Length (mm)
    16
  • Overall Length (In.)
    0.63
  • Minimum Operating Temperature (°F)
    -60
  • Maximum Wire Insulation Diameter (mm)
    2.8
  • Minimum Operating Temperature (°C)
    -54
  • Maximum Wire Insulation Diameter (In.)
    0.11
  • Maximum Operating Temperature (°C)
    105
  • Inside Diameter (mm)
    1.3
  • Inside Diameter (In.)
    0.05
  • Pin Length (mm)
    10
  • Maximum Operating Temperature (°F)
    221
  • Maximum Metric Conductor Size (mm²)
    0.75
  • Copper Conductor Size (AWG)
    18
  • Pin Length (In.)
    0.39
  • Wire Strip Length (mm)
    13.5
  • Minimum Metric Conductor Size (mm²)
    0.75
  • Ferrule Type
    Single Wire Standard
  • Flammability Rating
    UL94-HB
  • Wire Strip Length (In.)
    17/32
  • Cover Material
    Polypropylene

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

FSD76-10-D Related Documents

Panduit - Catalog Cut Sheets-1631051249311.pdfPanduit - Part Drawings-1631051249371.pdf

Manufacturer warranty

FSD76-10-D Panduit

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

7

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare FSD76-10-D with other products

Part Features

Sub Brand

Color Code

Base Material

Packaging Type

For Use With

Finish/Coating

Standards Met

Product Type

Overall Length (mm)

Overall Length (In.)

Minimum Operating Tempera...

Maximum Wire Insulation D...

Minimum Operating Tempera...

Maximum Wire Insulation D...

Maximum Operating Tempera...

Inside Diameter (mm)

Inside Diameter (In.)

Pin Length (mm)

Maximum Operating Tempera...

Maximum Metric Conductor ...

Copper Conductor Size (AW...

Pin Length (In.)

Wire Strip Length (mm)

Minimum Metric Conductor ...

Ferrule Type

Flammability Rating

Wire Strip Length (In.)

Cover Material

Note

Selected product

FSD76-10-D
7 in stock
FSD76-10-D
Panduit

Pan-Term® Single wire ferrule

Part FeaturesPolypropylene insulation hou...

Sub BrandPan-Term®

Color CodeGray

Base MaterialCopper

Packaging TypeLoose Piece Ferrules

For Use WithCT-1160, CT-1170, CT-1090, C...

Finish/CoatingTin-Plated

Standards MetDIN 46228, CSA C22.2 No. 291...

Product TypeSingle wire ferrule

Overall Length (mm)16

Overall Length (In.)0.63

Minimum Operating Temperature (°F)-60

Maximum Wire Insulation Diameter (mm)2.8

Minimum Operating Temperature (°C)-54

Maximum Wire Insulation Diameter (In.)0.11

Maximum Operating Temperature (°C)105

Inside Diameter (mm)1.3

Inside Diameter (In.)0.05

Pin Length (mm)10

Maximum Operating Temperature (°F)221

Maximum Metric Conductor Size (mm²)0.75

Copper Conductor Size (AWG)18

Pin Length (In.)0.39

Wire Strip Length (mm)13.5

Minimum Metric Conductor Size (mm²)0.75

Ferrule TypeSingle Wire Standard

Flammability RatingUL94-HB

Wire Strip Length (In.)17/32

Cover MaterialPolypropylene

Note-

FSD76-8-D
14 in stock
FSD76-8-D
Panduit

Pan-Term® Single wire ferrule

Part FeaturesPolypropylene insulation hou...

Sub BrandPan-Term®

Color CodeGray

Base MaterialCopper

Packaging TypeLoose Piece Ferrules

For Use WithCT-1160, CT-1170, CT-1090, C...

Finish/CoatingTin-Plated

Standards MetDIN 46228, CSA C22.2 No. 291...

Product TypeSingle wire ferrule

Overall Length (mm)14

Overall Length (In.)0.55

Minimum Operating Temperature (°F)-60

Maximum Wire Insulation Diameter (mm)2.8

Minimum Operating Temperature (°C)-54

Maximum Wire Insulation Diameter (In.)0.11

Maximum Operating Temperature (°C)105

Inside Diameter (mm)1.3

Inside Diameter (In.)0.05

Pin Length (mm)8

Maximum Operating Temperature (°F)221

Maximum Metric Conductor Size (mm²)0.75

Copper Conductor Size (AWG)18

Pin Length (In.)0.31

Wire Strip Length (mm)11.9

Minimum Metric Conductor Size (mm²)0.75

Ferrule TypeSingle Wire Standard

Flammability RatingUL94-HB

Wire Strip Length (In.)15/32

Cover MaterialPolypropylene

Note-

FSD75-10-D
22 in stock
FSD75-10-D
Panduit

Pan-Term® Single wire ferrule

Part FeaturesPolypropylene insulation hou...

Sub BrandPan-Term®

Color CodeWhite

Base MaterialCopper

Packaging TypeLoose Piece Ferrules

For Use WithCT-1160, CT-1170, CT-1090, C...

Finish/CoatingTin-Plated

Standards MetDIN 46228, CSA C22.2 No. 291...

Product TypeSingle wire ferrule

Overall Length (mm)15.5

Overall Length (In.)0.61

Minimum Operating Temperature (°F)-60

Maximum Wire Insulation Diameter (mm)2.5

Minimum Operating Temperature (°C)-54

Maximum Wire Insulation Diameter (In.)0.09

Maximum Operating Temperature (°C)105

Inside Diameter (mm)1.1

Inside Diameter (In.)0.04

Pin Length (mm)10

Maximum Operating Temperature (°F)221

Maximum Metric Conductor Size (mm²)0.5

Copper Conductor Size (AWG)22 - 20

Pin Length (In.)0.39

Wire Strip Length (mm)13.5

Minimum Metric Conductor Size (mm²)0.5

Ferrule TypeSingle Wire Standard

Flammability RatingUL94-HB

Wire Strip Length (In.)17/32

Cover MaterialPolypropylene

NoteUL with 20 AWG wire only
