8138001 Festo Proximity Sensors

8138001 on Powermatic Associates
Festo

Part#:8138001

Manufacturer:Festo

Alt. Part#:SMT-8M-A-NO-24V-E-7,5-OE

Product Lifecycle:Active

Get a quick Quote!

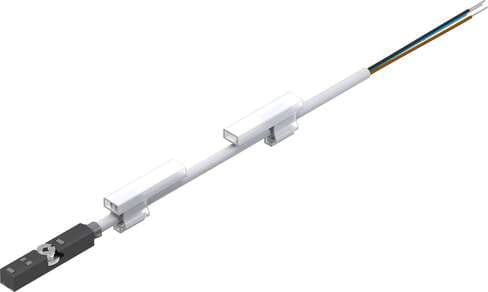

proximity sensor SMT-8M-A-NO-24V-E-7,5-OE Design: for T-slot, Based on the standard: EN 60947-5-2, Authorisation: RCM Mark, CE mark (see declaration of conformity): (* to EU directive for EMC, * in accordance with EU RoHS directive), KC mark: KC-EMV

About the manufacturer: Festo is one of the manufacturers that offers Proximity Sensors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8138001 Festo price in the box on the right side or send a quick quote.

Product Details

  • Electrical connection 1, number of pins/wires
    3
  • CE marking (see declaration of conformity)
    As per EU EMC directive As per EU RoHS directive
  • Ambient temperature
    -40 °C ... 85 °C
  • On time
    ≤ 1.3 ms
  • Type code
    SMT
  • Repetition accuracy
    0.2 mm
  • Certification
    RCM compliance mark
  • Note on materials
    Free of copper and PTFE Halogen-free
  • Max. switching frequency
    180 Hz
  • Max. switching capacity DC in mounting kits
    2.8 W
  • Short-circuit protection
    yes
  • Cable length
    7.5 m
  • Electrical connection 1, connection type
    Cable
  • Design
    for T-slot
  • Symbol
    00997287
  • Switching element function
    N/C contact
  • Max. output current in mounting kits
    100 mA
  • Reverse polarity protection
    for all electrical connections
  • Type of mounting
    Screwed tightly Can be inserted in slot from above
  • KC characters
    KC EMC
  • Special features
    Oil-resistant
  • Measured variable
    Position
  • Switching output
    NPN
  • Max. switching capacity DC
    2.8 W
  • Overload protection
    Available
  • Connection outlet orientation
    Longitudinal
  • Connector cable test conditions
    Flexural strength: as per Festo standard Torsional resistance: > 300 000 cycles, ±270°/0.1 m
  • Product weight
    85.1 g
  • Function reserve indication
    LED orange
  • Ambient temperature with flexible cable installation
    -20 °C ... 85 °C
  • Electrical connection 1, connection technology
    Open end
  • Based on norm
    EN 60947-5-2
  • Measuring principle
    Magneto-resistive
  • Switch-off time
    ≤ 1.4 ms
  • Voltage drop
    < 1.5 V
  • DC operating voltage range
    5 V ... 30 V
  • Cable characteristic
    Suitability for energy chains/robot applications
  • Max. tightening torque
    0.6 Nm
  • Housing material
    PA-reinforced High-alloy stainless steel
  • Degree of protection
    IP65 IP69K
  • Max. output current
    100 mA
  • Rated operating voltage DC
    24 V
  • Color cable sheath
    Gray
  • Material of cable sheath
    TPE-U(PUR)
  • Mounting position
    Any
  • Housing colour
    Black
  • Switching status indication
    LED yellow

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.



Related documents 8138001 Specs
