183740 Festo Pneumatic Fittings

183740 on Powermatic Associates
Festo

Part#:183740

Alt. Part#:QSM-M7-1/4-I-U-M

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

22 in stock

Apr 2, 2025

Product description

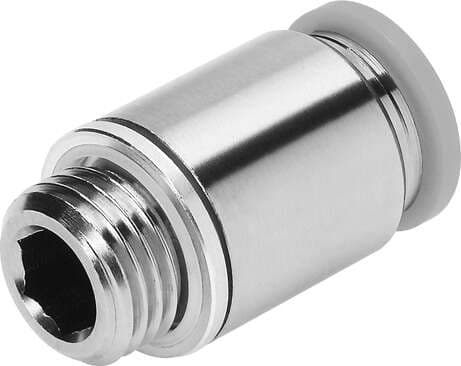

push-in fitting QSM-M7-1/4-I-U-M male thread with internal hexagon socket. Size: Mini, Nominal size: 0,114 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 1

Product Details

  • Size
    Mini
  • Pack size
    1
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Tolerance for nominal tightening torque
    ± 20%
  • Housing material
    Brass Nickel-plated
  • Material of tube retaining claw
    High-alloy stainless steel
  • Nominal width
    2.896 mm
  • Operating pressure for entire temperature range
    -0.95 bar ... 9.997 bar
  • Nominal tightening torque
    3.35 Nm
  • Pneumatic connection 2
    for pneumatic tubing outer diameter 1/4"
  • Material of tubing seal
    NBR
  • Type code
    QSM
  • Design
    Push-pull principle
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Pneumatic connection 1
    External thread M7
  • Releasing ring material
    POM
  • Maritime classification
    See certificate
  • Type of seal on screwed trunnion
    Sealing ring
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Product weight
    3.997 g
  • Releasing ring color
    Gray
  • Mounting position
    Any
  • Ambient temperature
    0 °C ... 60 °C
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
