183743 Festo Pneumatic Fittings

183743 on Powermatic Associates
Festo

Part#:183743

Alt. Part#:QS-1/4-5/16-I-U-M

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Product description

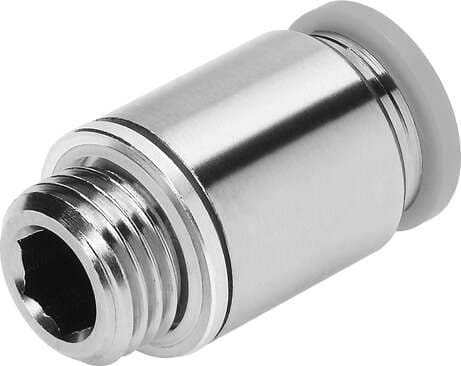

push-in fitting QS-1/4-5/16-I-U-M male thread with internal hexagon socket. Size: Standard, Nominal size: 0,248 ", Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 1

Product Details

  • Releasing ring color
    Gray
  • Maritime classification
    See certificate
  • Type of seal on screwed trunnion
    Coating
  • Operating pressure for entire temperature range
    -0.95 bar ... 9.997 bar
  • Pack size
    1
  • Design
    Push-pull principle
  • Pneumatic connection 1
    External thread R1/4
  • Material of tubing seal
    NBR
  • Nominal width
    6.299 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Ambient temperature
    0 °C ... 60 °C
  • Note on materials
    RoHS-compliant
  • Size
    Standard
  • Mounting position
    Any
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Product weight
    13.013 g
  • Releasing ring material
    POM
  • Type code
    QS
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 5/16"
  • Housing material
    Brass Nickel-plated
  • Material of tube retaining claw
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
