534775 Festo Directional Control Valves
Part#:534775
Alt. Part#:VSVA-B-M52-MH-A2-1R2L
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

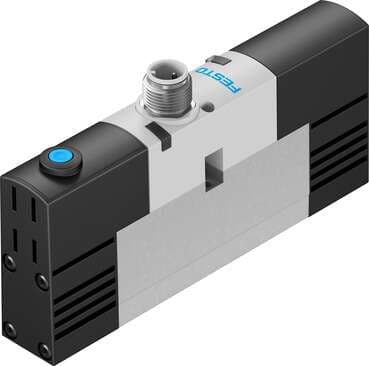

solenoid valve VSVA-B-M52-MH-A2-1R2L with central plug, round design M8x1. Valve function: 5/2 monostable, Type of actuation: electrical, Width: 18 mm, Standard nominal flow rate: 550 l/min, Operating pressure: 3 - 8 bar
Product Details
- Lap Overlap
- Standard nominal flow rate 550 l/min
- Certification C-Tick c UL us - Recognized (OL)
- Type of control Pilot-controlled
- Flow rate of pneumatic valve 750 l/min
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature -5 °C ... 50 °C
- Operating pressure 3 bar ... 8 bar
- Design Piston gate valve
- Exhaust air function With flow control option
- Flow direction Non-reversible
- Optimized flow rate of pneumatic valve pneumatically concatenated flow 550 l/min
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Width 18 mm
- Degree of protection IP65
- Nominal width 5 mm
- Sealing principle Soft
- Conforms to standard ISO 15407-1 VDMA 24563
- Signal status display LED
- Switching time off 34 ms
- Max. positive test pulse with 0 signal 500 µs
- Coil characteristics 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Relative air humidity 0 - 90 %
- Type of mounting On sub-base
- Actuation type Electrical
- Reset method Mechanical spring
- Type code VSVA
- Manual override Non-detenting
- Symbol 00991003
- On switching time 12 ms
- Max. negative test pulse on 1 signal 500 µs
- CE marking (see declaration of conformity) As per EU EMC directive
- Temperature of medium -5 °C ... 50 °C
- Max. tightening torque for valve mounting 0.9 Nm ... 1.1 Nm
- Product weight 140 g
- Valve function 5/2, monostable
- Pneumatic working port Sub-base, size 18 mm as per ISO 15407-1 Size 02 sub-base as per VDMA 24563
- Operating voltage 24V DC
- Mounting position Any
- Pilot air supply port Internal
- Flow rate of pneumatic valve on individual sub-base 550 l/min
- DC operating voltage range 21.6 V ... 26.4 V
- Duty cycle 100%
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Electrical connection 4-pin Round design
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
