534788 Festo Directional Control Valves
Part#:534788
Alt. Part#:VSVA-B-P53C-ZH-A2-1R2L
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

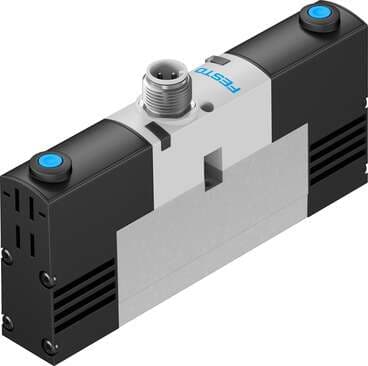

solenoid valve VSVA-B-P53C-ZH-A2-1R2L with central plug, round design M8x1. Valve function: 5/3 closed, Type of actuation: electrical, Width: 18 mm, Standard nominal flow rate: 450 l/min, Operating pressure: -0,9 - 10 bar
Product Details
- Reset method Mechanical spring
- Manual override Non-detenting
- Pilot pressure 3 bar ... 8 bar
- Coil characteristics 24 V DC: low-current phase 1.0 W, high-current phase 2.4 W
- Temperature of medium -5 °C ... 50 °C
- Max. tightening torque for valve mounting 0.9 Nm ... 1.1 Nm
- Type of mounting On sub-base
- Pilot pressure MPa 0.3 MPa ... 0.8 MPa
- Width 18 mm
- Operating voltage 24V DC
- Nominal width 5 mm
- Sealing principle Soft
- Flow direction Reversible
- Flow rate of pneumatic valve on individual sub-base 500 l/min
- On switching time 15 ms
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Valve function 5/3, closed
- Operating pressure -0.9 bar ... 10 bar
- Actuation type Electrical
- Design Piston gate valve
- Type code VSVA
- Conforms to standard ISO 15407-1 VDMA 24563
- Pilot air supply port External
- Symbol 00992938
- Optimized flow rate of pneumatic valve pneumatically concatenated flow 450 l/min
- Max. positive test pulse with 0 signal 500 µs
- Duty cycle 100%
- Relative air humidity 0 - 90 %
- Electrical connection 4-pin Round design
- Lap Overlap
- Standard nominal flow rate 450 l/min
- Degree of protection IP65
- Mounting position Any
- Flow rate of pneumatic valve 650 l/min
- DC operating voltage range 21.6 V ... 26.4 V
- CE marking (see declaration of conformity) As per EU EMC directive
- Product weight 140 g
- Note on materials RoHS-compliant
- Pneumatic working port Sub-base, size 18 mm as per ISO 15407-1 Size 02 sub-base as per VDMA 24563
- Certification C-Tick c UL us - Recognized (OL)
- Exhaust air function With flow control option
- Type of control Pilot-controlled
- Signal status display LED
- Switching time off 36 ms
- Max. negative test pulse on 1 signal 500 µs
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Ambient temperature -5 °C ... 50 °C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
