30457 Festo Proximity Sensors

30457 on Powermatic Associates
Festo

Part#:30457

Alt. Part#:SMEO-1-B

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Product description

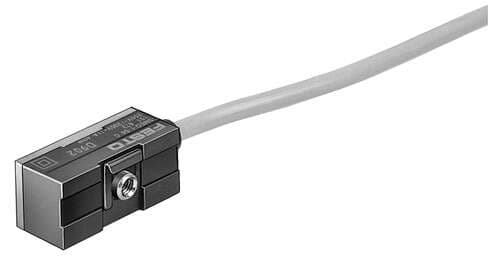

proximity sensor SMEO-1-B Without mounting kit Design: Block design, Conforms to standard: DIN EN 60947-5-2, CE mark (see declaration of conformity): to EU directive low-voltage devices, Materials note: Free of copper and PTFE, Measuring principle: Reed m

Product Details

  • Design
    Block design
  • Ambient temperature
    -20 °C ... 70 °C
  • On time
    0.5 ms
  • Type code
    SMEO
  • Note on materials
    Free of copper and PTFE
  • Max. switching frequency
    500 Hz
  • Reproducibility of switching value
    +/- 0.1 mm
  • Residual current
    0 mA
  • Reverse polarity protection
    no
  • Cable length
    2.5 m
  • Type of mounting
    With accessories
  • Product weight
    100 g
  • Conforms to standard
    DIN EN 60947-5-2
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Switch-off time
    0.03 ms
  • Max. output current DC
    1000 mA
  • Voltage drop
    ≤ 0 V
  • Overload protection
    Not available
  • Tightening torque
    2.9 Nm
  • Surge resistance
    4 kV
  • Symbol
    00991624
  • Measuring principle
    Magnetic reed
  • Switching element function
    N/O contact
  • Max. output current
    1000 mA
  • Max. switching capacity DC
    40 W
  • Connection outlet orientation
    Longitudinal
  • Housing material
    Epoxy resin Die-cast zinc
  • Contamination level
    3
  • Switching output
    Contact-based, bipolar
  • Max. output current AC
    1000 mA
  • Operating voltage range AC
    0 V ... 250 V
  • Electrical connection
    2-wire Cable
  • Degree of protection
    IP67
  • Min. switching capacity AC
    40 VA
  • Short-circuit protection
    no
  • DC operating voltage range
    0 V ... 200 V
  • Material of cable sheath
    PVC
  • Ambient temperature with flexible cable installation
    -5 °C ... 70 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
