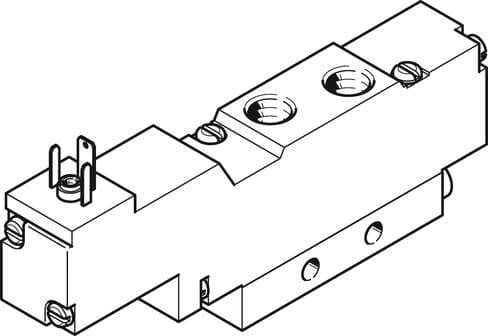

173044 Festo Directional Control Valves
Part#:173044
Alt. Part#:MEBH-5/2-1/8-L-B-110AC
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description
solenoid valve MEBH-5/2-1/8-L-B-110AC With solenoid coil and manual override, without plug socket. Valve function: 5/2 monostable, Type of actuation: electrical, Width: 17,8 mm, Standard nominal flow rate: 600 l/min, Operating pressure: 2,5 - 8 bar
Product Details
- Pneumatic connection 4 G1/8
- Degree of protection IP65
- Reset method Pneumatic spring
- Actuation type Electrical
- Pneumatic working port G1/8
- Certification c UL us - Recognized (OL)
- Type code MEBH
- Mounting position Any
- b-value 0.4
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Temperature of medium -5 °C ... 50 °C
- Product weight 105 g
- Pilot exhaust air port 82/84 M5
- Lap Overlap
- Design Piston gate valve
- Width dimension 18 mm
- Sealing principle Soft
- Symbol 00991023
- On switching time 15 ms
- Width 17.8 mm
- Operating voltage 110V AC
- Operating pressure 2.5 bar ... 8 bar
- Exhaust air function With flow control option
- Type of control Pilot-controlled
- C value 2.95 l/sbar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Noise level 75 dB(A)
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Note on materials RoHS-compliant
- Housing material Die-cast aluminum
- Valve function 5/2, monostable
- Standard nominal flow rate 600 l/min
- Nominal width 5 mm
- Manual override Detenting via accessory
- Flow direction Non-reversible
- Pilot pressure 2.5 bar ... 8 bar
- Duty cycle 100%
- Ambient temperature -5 °C ... 50 °C
- Pneumatic connection 1 G1/8
- Pneumatic connection 2 G1/8
- Pilot air supply port Internal
- Switching time off 18 ms
- Coil characteristics 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
- CE marking (see declaration of conformity) As per EU low voltage directive
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Electrical connection Form C Rectangular design
- Pneumatic connection 3 G1/8
- Seals material HNBR NBR
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Storage temperature -20 °C ... 40 °C
- Type of mounting With through-hole
- Pneumatic connection 5 G1/8
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
